ACT/LINK LED
SPEED LED
LAN Port
LAN Port LED Indications

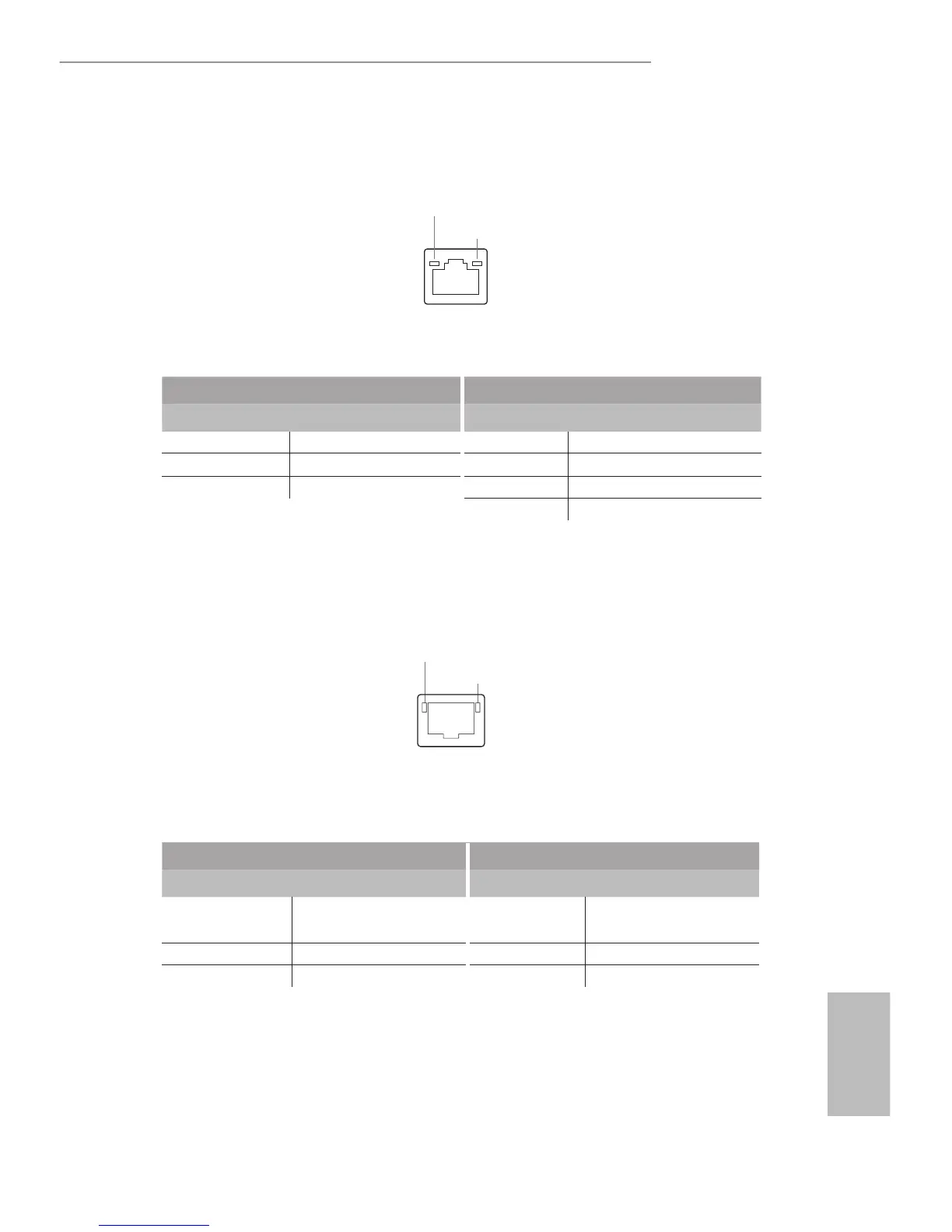

*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O No Link
Blinking Yellow Data Activity O 10M bps connection
On Link Yel low 100M bps connection
Green 1G bps connection
**ere are two LEDs on each LAN port. Please refer to the table below for the LAN port
LED indications.
LAN Port (LAN1, LAN2) LED Indications
1G For D1540D4U-2L+
Speed LED Activity / Link LED
Status Description Status Description
O 10Mbps connection or
no link
O No Link
Yel low 100Mbps connection Blinking Green Data Activity
Green 1Gbps connection On Link
ACT/LINK LED
SPEED LED
LAN Port
