English
10G For D1540D4U-2T8R / D1540D4U-2T2O8R
Speed LED Activity / Link LED
Status Description Status Description
O 100Mbps connection or
no link
O No Link
Yel low 1Gbps connection Blinking Green Data Activity
Green 10Gbps connection On Link
SPF+ Port (SPF+_1, SPF+_2) LED Indications
1G For D1540D4U-2O8R / D1540D4U-2T8R
Speed LED Activity / Link LED
Status Description Status Description
O 10Mbps connection or
no link
O No Link
Orange 100Mbps connection Blinking Green Data Activity
Green 1Gbps connection On Link
10G For D1540D4U-2T2O8R
Speed LED Activity / Link LED
Status Description Status Description
O 10Mbps connection or
no link
O No Link
Orange 1Gbps connection Blinking Green Data Activity
Green 10Gbps connection On Link

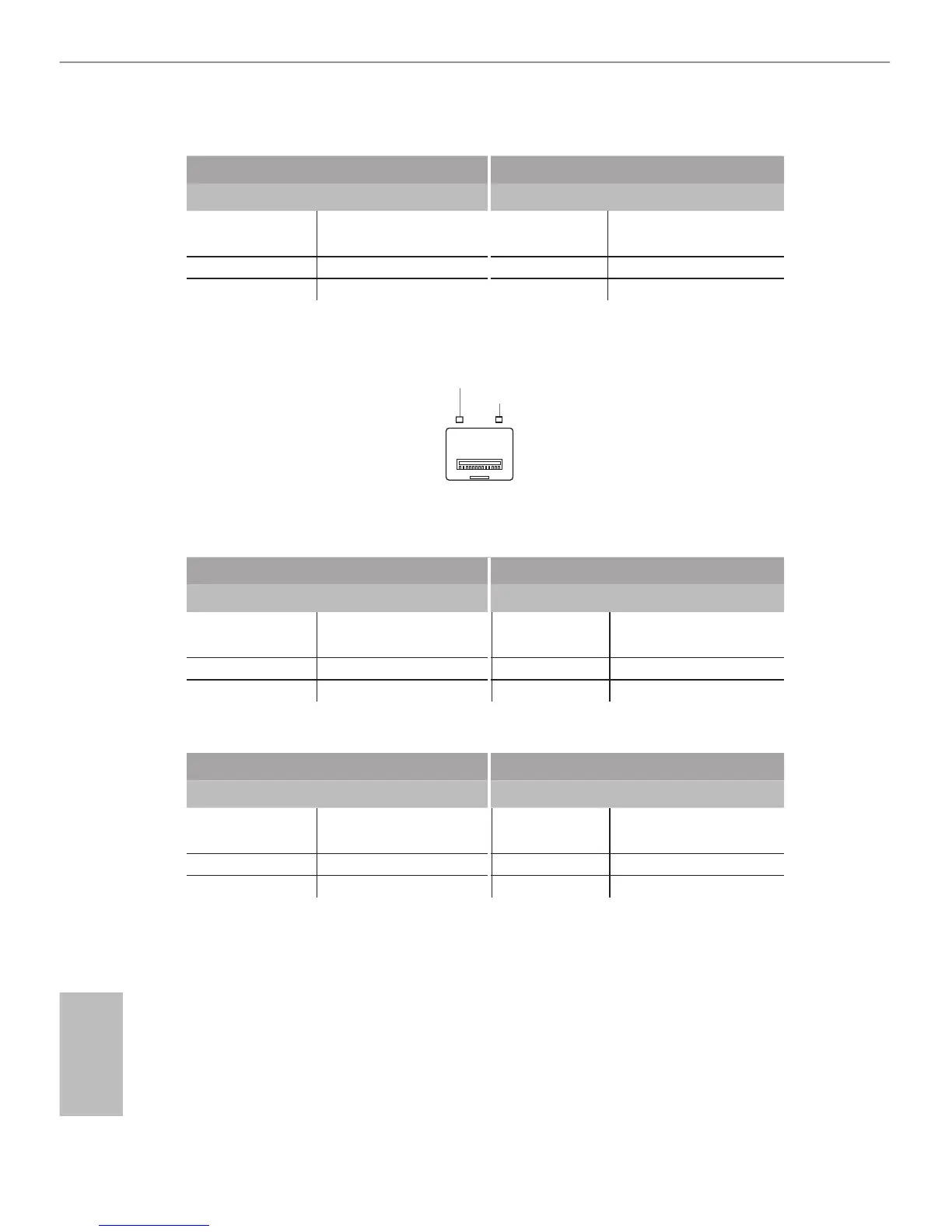

ACT/LINK LED
SPEED LED
LAN Port
