ASROCK Fatal1ty Z77 Professional Series Quick Installation Guide

Fatal1ty Z77 Professional Series Motherboard
5
English

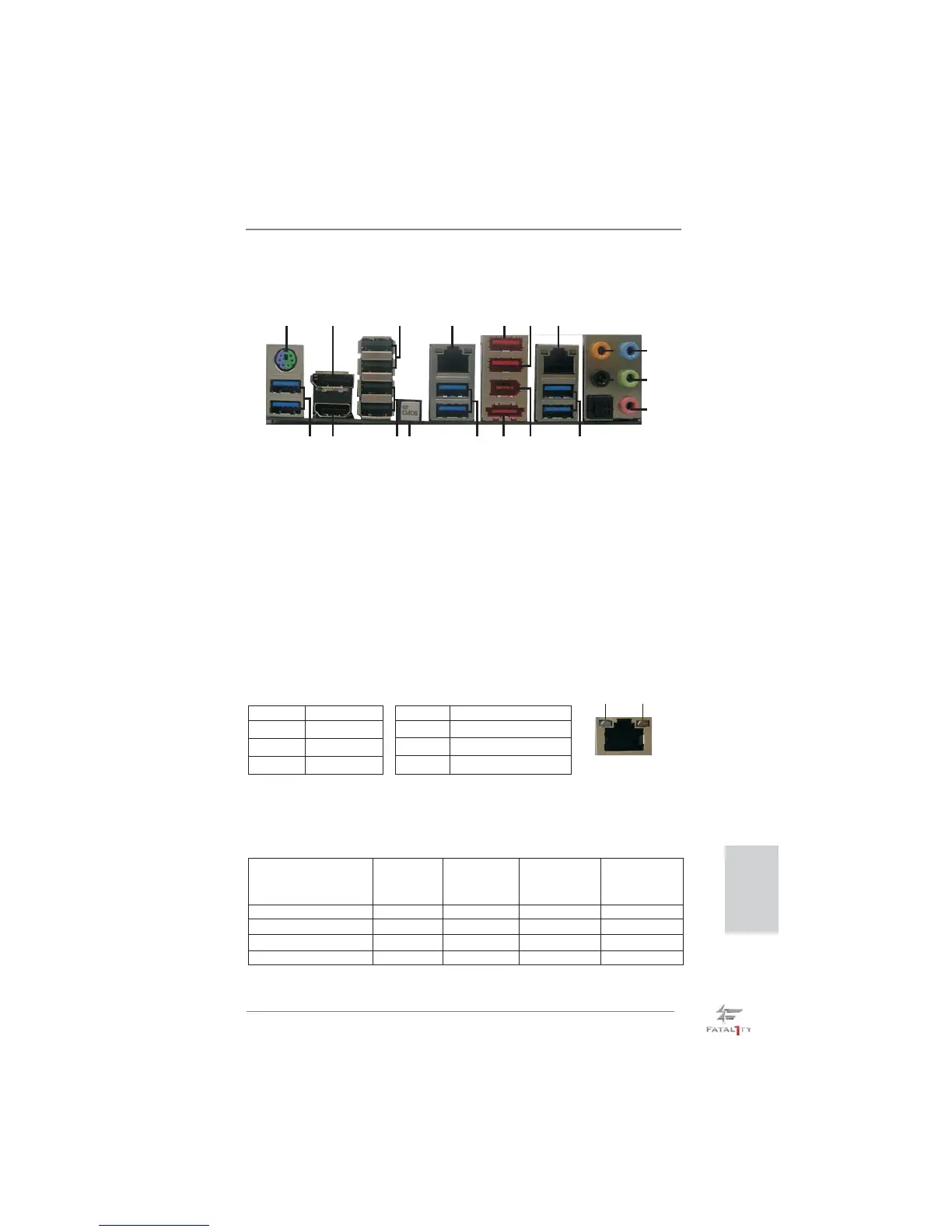

I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
1 PS/2 Keyboard/Mouse Port (Purple/Green) ** 12 Front Speaker (Lime)
2 DisplayPort (DP1) 13 Microphone (Pink)
3 USB 2.0 Ports (USB01) 14 USB 3.0 Ports (USB3_45)
* 4 LAN RJ-45 Port 15 IEEE 1394 Port
5 Fatal1ty Mouse Port (USB4) *** 16 eSATA3 Port (ESATA_1)
6 USB 2.0 Port (USB5) 17 USB 3.0 Ports (USB3_23)
* 7 LAN RJ-45 Port 18 Clear CMOS Switch (CLRCBTN)
8 Central / Bass (Orange) 19 USB 2.0 Ports (USB23)
9 Rear Speaker (Black) 20 HDMI Port (HDMI1)
10 Optical SPDIF Out Port 21 USB 3.0 Ports (USB3_01)
11 Line In (Light Blue)
ACT/LINK
LED
SPEED
LED
LAN Port
**
If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.
See the table below for connection details in accordance with the type of speaker you use.
TABLE for Audio Output Connection
Audio Output Channels Front Speaker Rear Speaker Central / Bass Line in
(No. 12) (No. 9) (No. 8) (No. 11)
2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V
13
14
15
16
17
18
5
6
4
1
2
3
7
8
9
10
11
12
19
2021

ASROCK Fatal1ty Z77 Professional Series Specifications

General

Chipset	Intel Z77
CPU Socket	LGA 1155
Max Memory	32 GB
PCIe 3.0 x16 Slots	3
PCIe 2.0 x1 Slots	2
PCI Slots	2
SATA 6Gb/s	4
SATA 3Gb/s	4
RAID Support	RAID 0, 1, 5, 10
Form Factor	ATX
Memory Slots	4 x DIMM
Memory Speed	DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066
USB 3.0 Ports	4 (2 rear, 2 via header)
USB 2.0 Ports	8 (4 rear, 4 via headers)
Audio	Realtek ALC898
Video Outputs	HDMI
Multi-GPU Support	Supports NVIDIA Quad SLI and AMD Quad CrossFireX
