Fatal1ty Z97M Killer Series

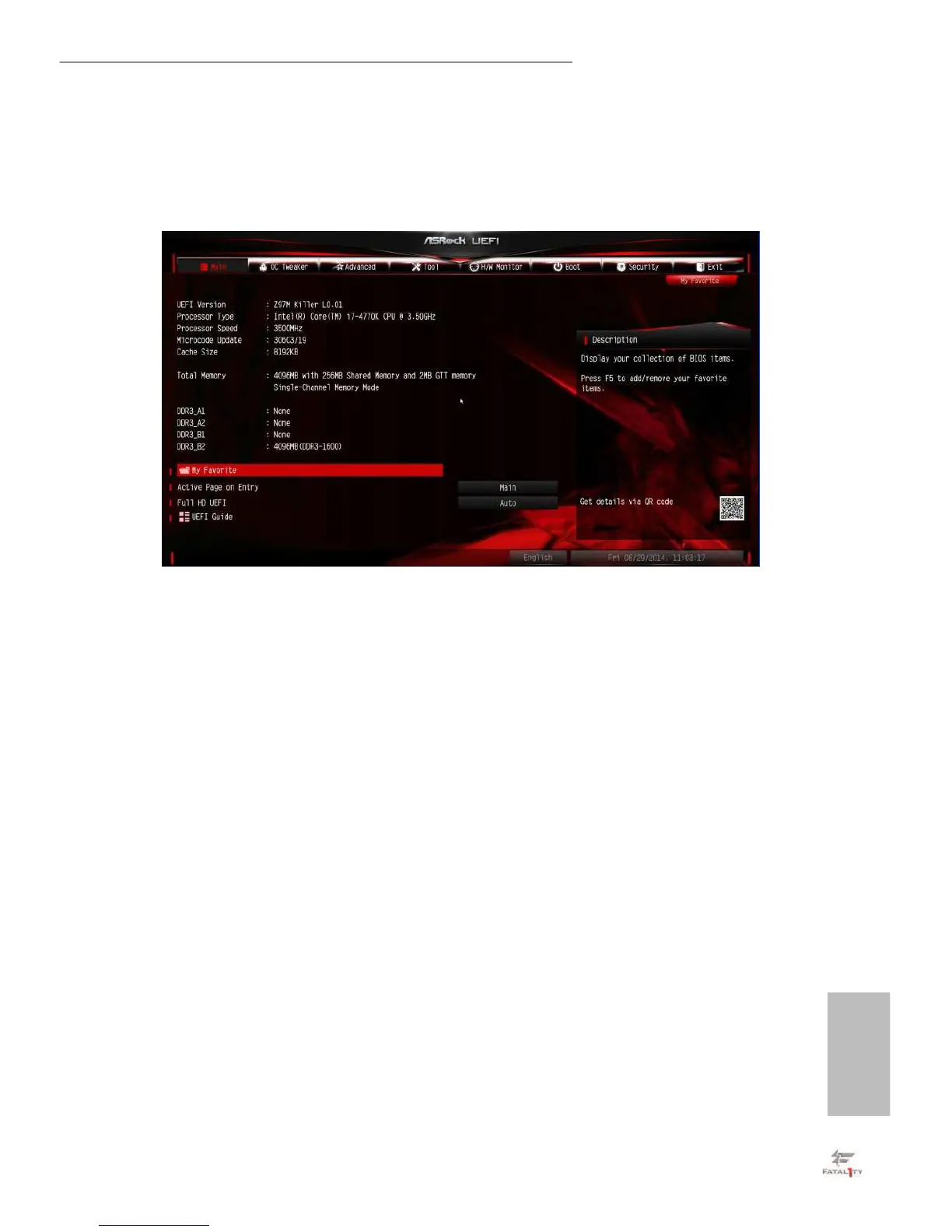

4.2 Main Screen
When you enter the UEFI SETUP UTILITY, the Main screen will appear and
display the system overview.
My Favorite
Display your collection of BIOS items. Press F5 to add/remove your favorite items.
Active Page on Entry
Select the default page when entering the UEFI setup utility.
Full HD UEFI
When [Auto] is selected, the resolution will be set to 1920 x 1080 if the monitor
supports Full HD resolution. If the monitor does not support Full HD resolution,
then the resolution will be set to 1024 x 768. When [Disable] is selected, the
resolution will be set to 1024 x 768 directly.
UEFI Guide
UEFI Guide is a quick tutorial for ASRock's UEFI setup Utility. You may abort the
tutorial by pressing "ESC".

ASROCK Fatal1ty Z97M Killer Series Specifications

General

Form Factor	Micro ATX
Chipset	Intel Z97
CPU Socket	LGA 1150
Max Memory	32GB
Audio Codec	Realtek ALC1150
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4 x DIMM
PCIe Slots	2 x PCIe 3.0 x16
Storage Interface	6 x SATA 6Gb/s
USB Ports	6 x USB 3.0
Audio	7.1 CH HD Audio with Content Protection
LAN	Killer E2200 Series
Memory Speed	DDR3 3200+(OC)/2933(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
M.2 Specification	M.2 (PCIe 2.0 x2 & SATA)
