2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors
2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors

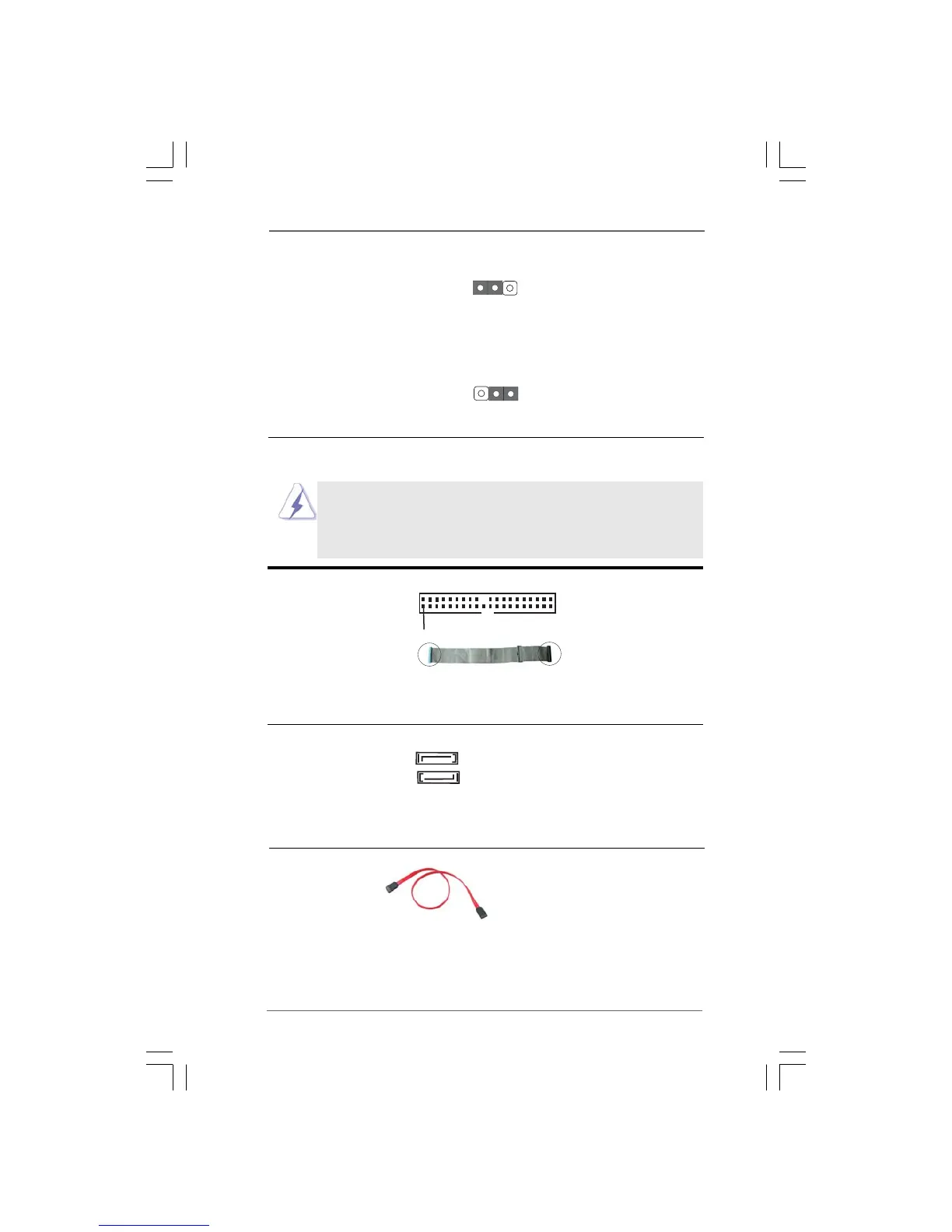

2.8 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Primary IDE connector (Blue)
(39-pin IDE1, see p.10 No. 11)
Note: Please refer to the instruction of your IDE device vendor for the details.
Serial ATAII Connectors These Serial ATAII (SATAII)
(SATAII_1: see p.10, No. 10) connectors support SATAII
(SATAII_2: see p.10, No. 9) or SATA hard disk for internal
storage devices. The current
SATAII interface allows up to
3.0 Gb/s data transfer rate.
Serial ATA (SATA) Either end of the SATA data cable
Data Cable can be connected to the SATA /
(Optional) SATAII hard disk or the SATAII
connector on the motherboard.
connect the black end
to the IDE devices
connect the blue end
to the motherboard
80-conductor ATA 66/100 cable
IDE1
PIN1
SATAII_1
SATAII_2
FSB1 Jumper
(FSB1, 3-pin jumper, see p.10 No. 20)
If you adopt FSB1333-CPU and DDR3 1333 memory module on this motherboard, you
need to adjust the jumper. Please short pin2, pin3 for FSB1 jumper. Otherwise, the
CPU and memory module may not work properly on this motherboard. Please refer to
below jumper setting.
Default
FSB1
FSB1

ASROCK G41C-VS Specifications

General

Non-ECC	Yes
Number of memory slots	4
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Number of SATA connectors	2
ATX Power connector (24-pin)	No
Number of Parallel ATA connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC662
Certification	FCC, CE, EuP Ready
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Networking features	10/100 Mbps
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	198 mm
Width	224 mm
