9
English
H110M-HDV R3.0 / H110M-HDS R3.0 / H110M-DVS R3.0 / H110M-DGS R3.0
* ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port

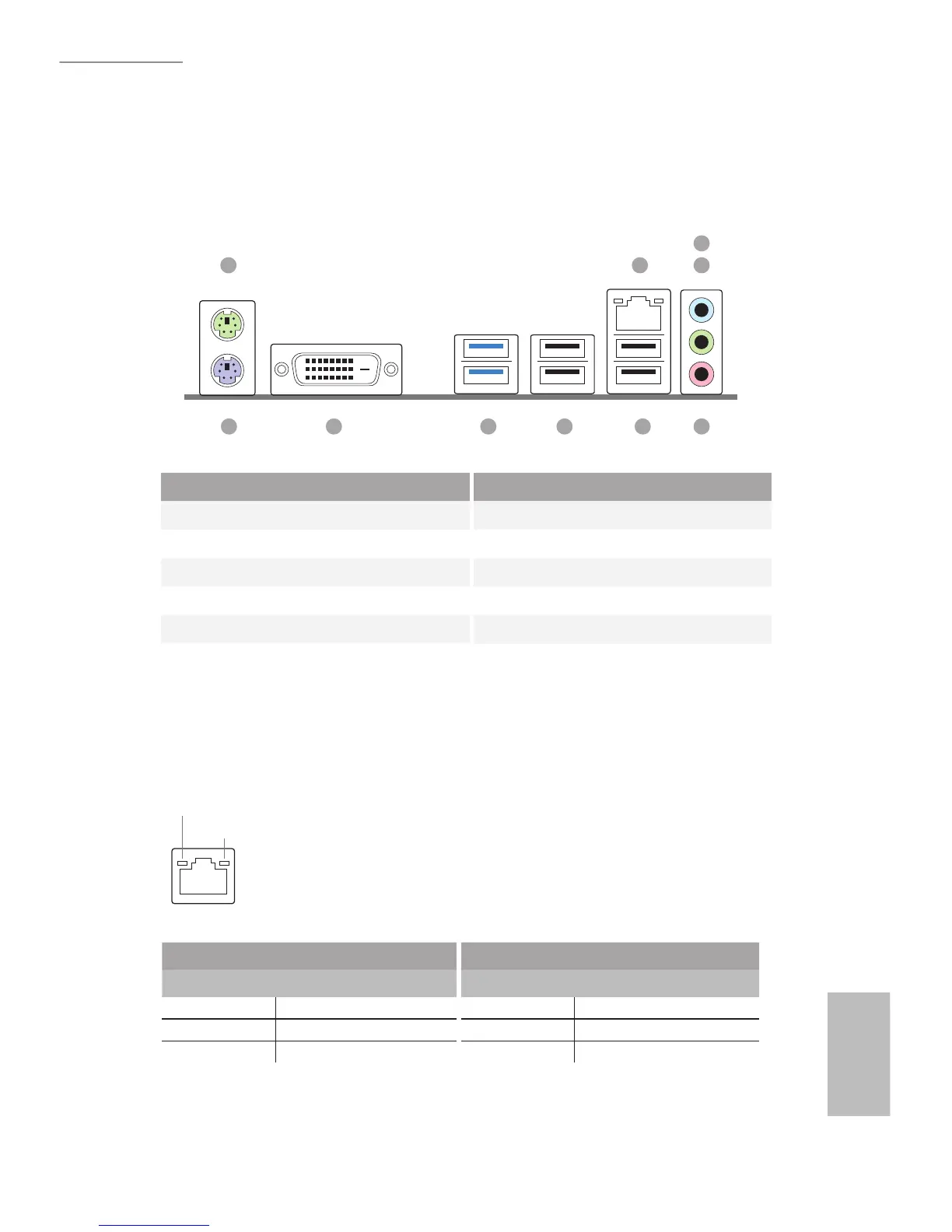

H110M-DGS R3.0:
No. Description No. Description
1 PS/2 Mouse Port 6 USB 2.0 Ports (USB01)***
2 LAN RJ-45 Port* 7 USB 2.0 Ports (USB_23)
3 Line In (Light Blue)** 8 USB 3.0 Ports (USB3_12)
4 Front Speaker (Lime)** 9 DVI-D Port
5 Microphone (Pink)** 10 PS/2 Keyboard Port
10
56
9
4
3
1 2
78
