ASROCK H110M-HDS R3.0 User Manual

3
English
H110M-HDV R3.0 / H110M-HDS R3.0 / H110M-DVS R3.0 / H110M-DGS R3.0
Intel
H110
DDR4_B1 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
ATXPWR1
PCIE2
Top:
RJ-45
USB 2.0
T: USB0
B: USB1
HDL ED R ES ET
PLE D PWR BT N
PANE L1
1
1
SPK_C I1
1
HD_AUDIO1
H110M-DVS
RoHS
USB 3.0
T: USB1
B: USB2
CMOS
Battery
USB3_ 3_ 4
1
CPU_FAN1
1
TPMS1
PCI Express 3.0
Front USB 3.0
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
SATA3 _0_1
SATA3 _2_3
BIOS
ROM
CLR MO S1
ATX12 V1
DVI1
PCIE1
PS2
Keyboard
PS2
Mouse
USB 2.0
T: USB2
B: USB3
CHA_FAN1
USB_ 4_ 5
1
VGA1
H110M-DVS R3.0:

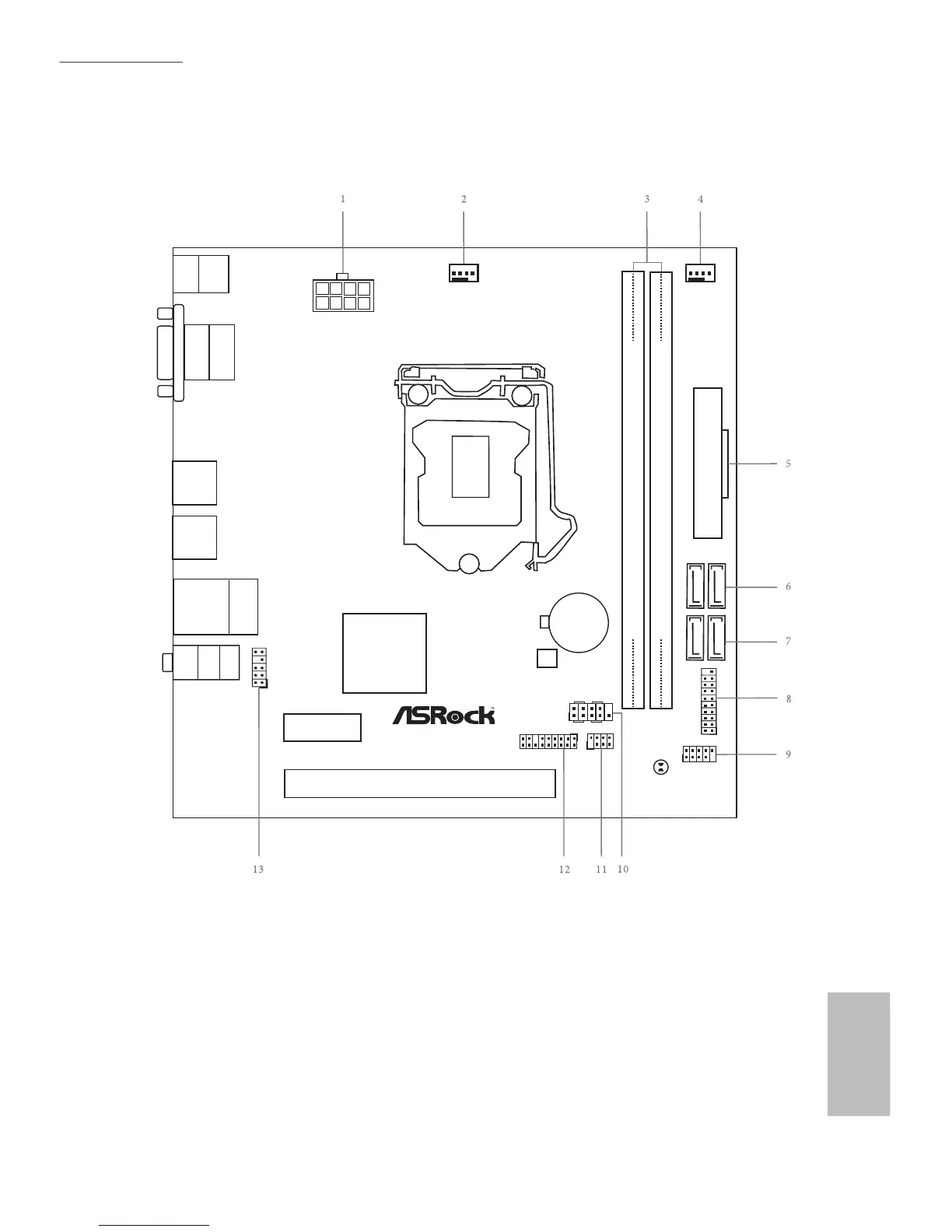

ASROCK H110M-HDS R3.0 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H110
CPU Socket	LGA 1151
Memory Slots	2 x DDR4 DIMM
Maximum Memory	32GB
Expansion Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
Storage Interface	4 x SATA3 6.0 Gb/s
RAID Support	No
USB Ports	6 x USB 2.0
Audio	Realtek ALC887 Audio Codec
LAN	Realtek RTL8111H Gigabit LAN
Video Outputs	DVI-D, D-Sub
