ASROCK H110M-HDS R3.0 User Manual

6
English

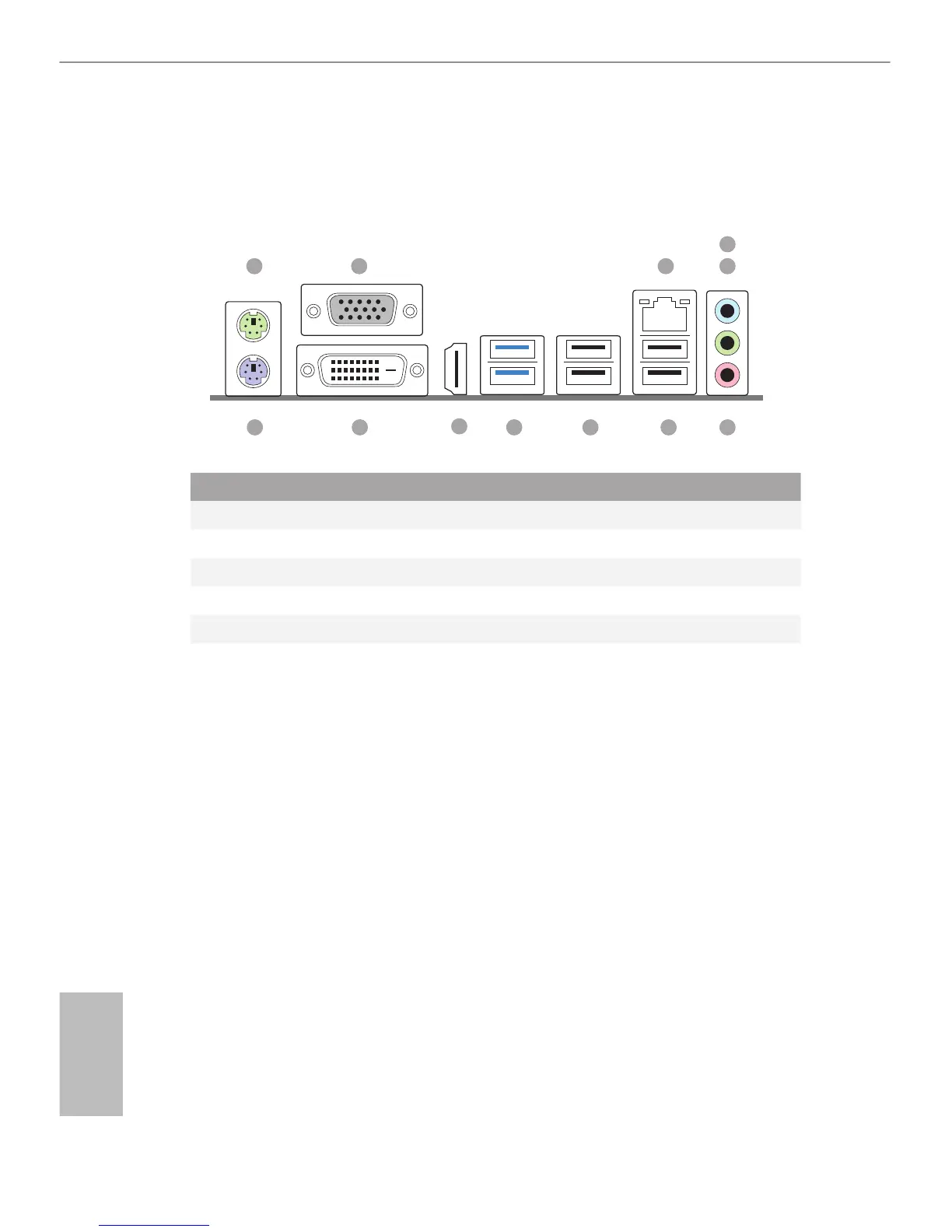

I/O Panel
H110M-HDV R3.0:
No. Description No. Description
1 PS/2 Mouse Port 7 USB 2.0 Ports (USB01)***
2 D-Sub Port 8 USB 2.0 Ports (USB_23)
3 LAN RJ-45 Port* 9 USB 3.0 Ports (USB3_12)
4 Line In (Light Blue)** 10 HDMI Port
5 Front Speaker (Lime)** 11 DVI-D Port
6 Microphone (Pink)** 12 PS/2 Keyboard Port
12 67
11
5
4
1 3
89
2
10

ASROCK H110M-HDS R3.0 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H110
CPU Socket	LGA 1151
Memory Slots	2 x DDR4 DIMM
Maximum Memory	32GB
Expansion Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
Storage Interface	4 x SATA3 6.0 Gb/s
RAID Support	No
USB Ports	6 x USB 2.0
Audio	Realtek ALC887 Audio Codec
LAN	Realtek RTL8111H Gigabit LAN
Video Outputs	DVI-D, D-Sub
