ASROCK H110M-ITX/ac User Manual

13
English
H110M-ITX/ac
H110M-ITX

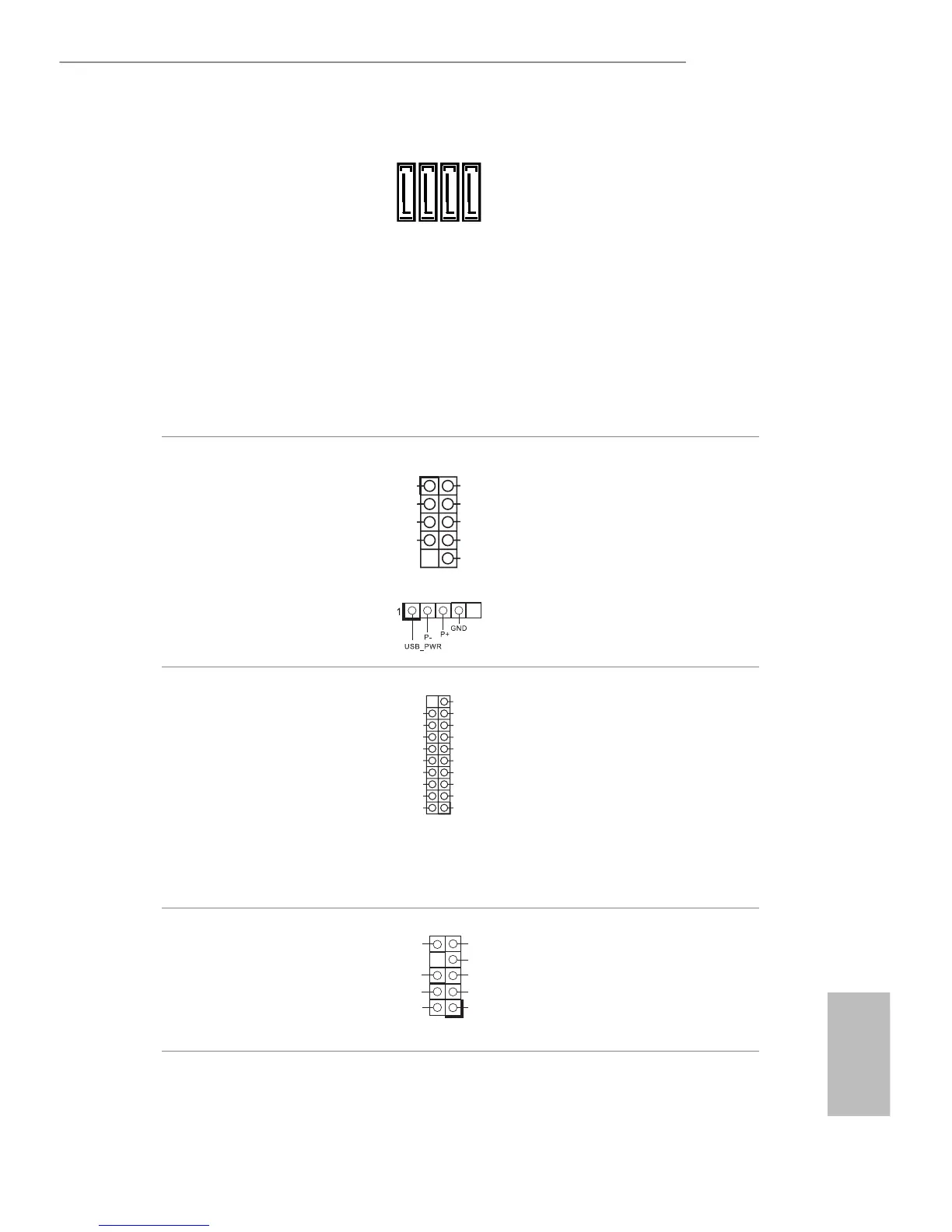

Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 12)
(SATA3_1:
see p.1, No. 13)
(SATA3_2:
see p.1, No. 14)
(SATA3_3:
see p.1, No. 15)
ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB_9_10)
(see p.1, No. 6)
(4-pin USB11)
(see p.1, No. 18)
ere is one header
and one port on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Header
(19-pin USB3_7_8)
(see p.1, No. 7)
Besides two USB 3.0 ports
on the I/O panel, there
is one header on this
motherboard. Each USB
3.0 header can support
two ports.
* USB3_7_8 is shared with
USB_9_10.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 17)
is header is for
connecting audio devices
to the front audio panel.
J_SENS E
OUT2_L
MIC_RET
PRESENCE#
GN D
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1
SATA3_3 SATA3_2 SATA3_1 SATA3_0
DUMMY
GND GND
P+
P-
P+
P-
USB_PWR
USB_PWR
1
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+

ASROCK H110M-ITX/ac Specifications

General

Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Processor thermal power (max)	95 W
Intel® Core i3/i5/i7/i9 series	i3-6xxx, i5-6xxx, i7-6xxx
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133 MHz
Audio chip	Realtek ALC892
Cooling type	Passive
Component for	Mini PC
Power source type	ATX
Motherboard chipset	Intel® H110
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Cables included	SATA
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
LAN controller	Intel® I219-V
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Ethernet interface type	Gigabit Ethernet
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	Not supported
Supported storage drive interfaces	M.2, SATA III
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	64 Mbit
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	- mm
