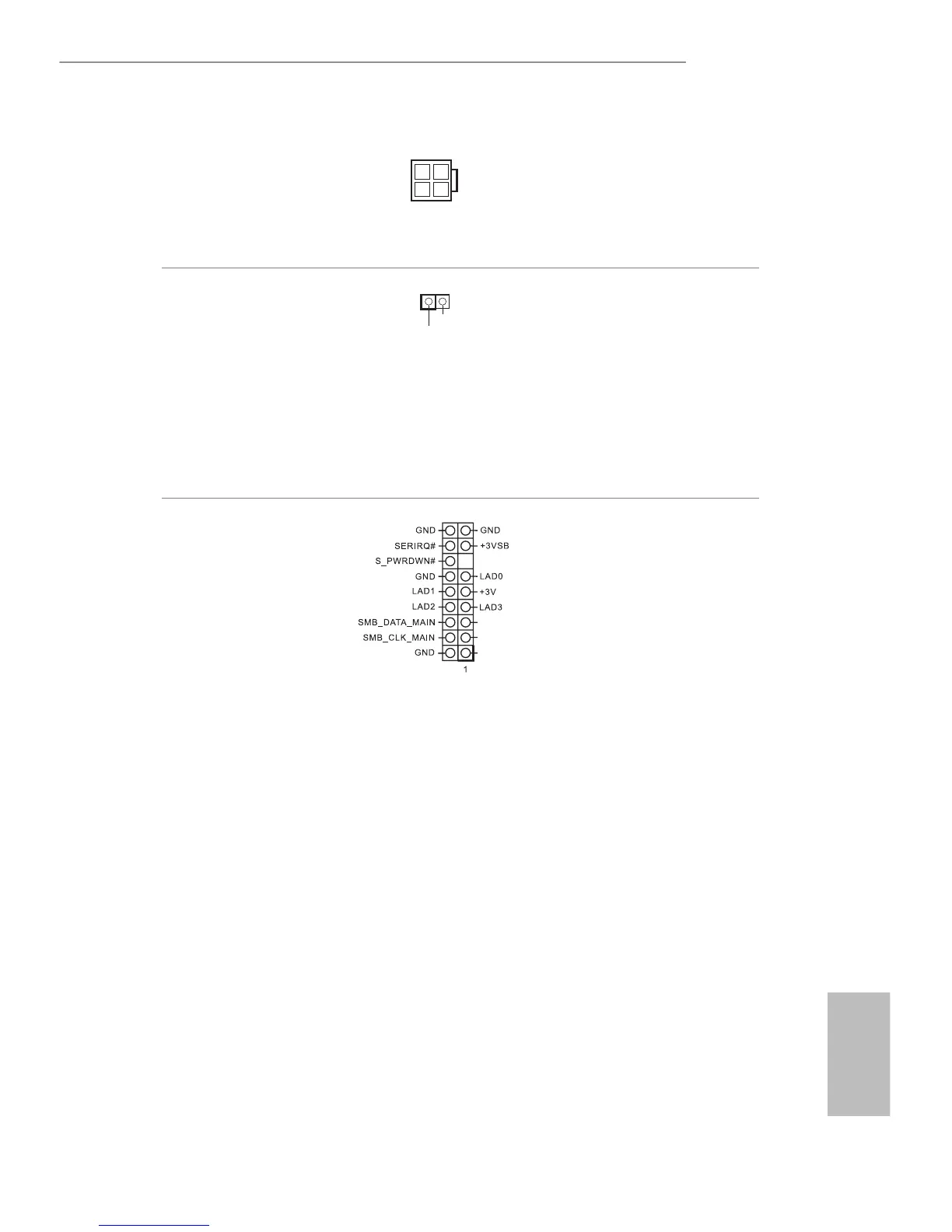

ASROCK H110M-ITX/ac User Manual

15
English
H110M-ITX/ac
H110M-ITX
ATX 12V Power
Connector
(4-pin ATX12V1)
(see p.1, No. 1)
is motherboard
provides an 4-pin ATX
12V power connector.
Chassis Intrusion Header
(2-pin CI1)
(see p.1, No. 16)
is motherboard
supports CASE OPEN
detection feature that
detects if the chassis cove
has been removed. is
feature requires a chassis
with chassis intrusion
detection design.
TPM Header
(17-pin TPMS1)
(see p.1, No. 8)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
1
Sign al
GND
PCIRST#
FRAME
PCICLK

ASROCK H110M-ITX/ac Specifications

General

Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Processor thermal power (max)	95 W
Intel® Core i3/i5/i7/i9 series	i3-6xxx, i5-6xxx, i7-6xxx
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133 MHz
Audio chip	Realtek ALC892
Cooling type	Passive
Component for	Mini PC
Power source type	ATX
Motherboard chipset	Intel® H110
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Cables included	SATA
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
LAN controller	Intel® I219-V
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Ethernet interface type	Gigabit Ethernet
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	Not supported
Supported storage drive interfaces	M.2, SATA III
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	64 Mbit
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	- mm
