ASROCK H110M-ITX/ac User Manual

1
English
H110M-ITX/ac
H110M-ITX

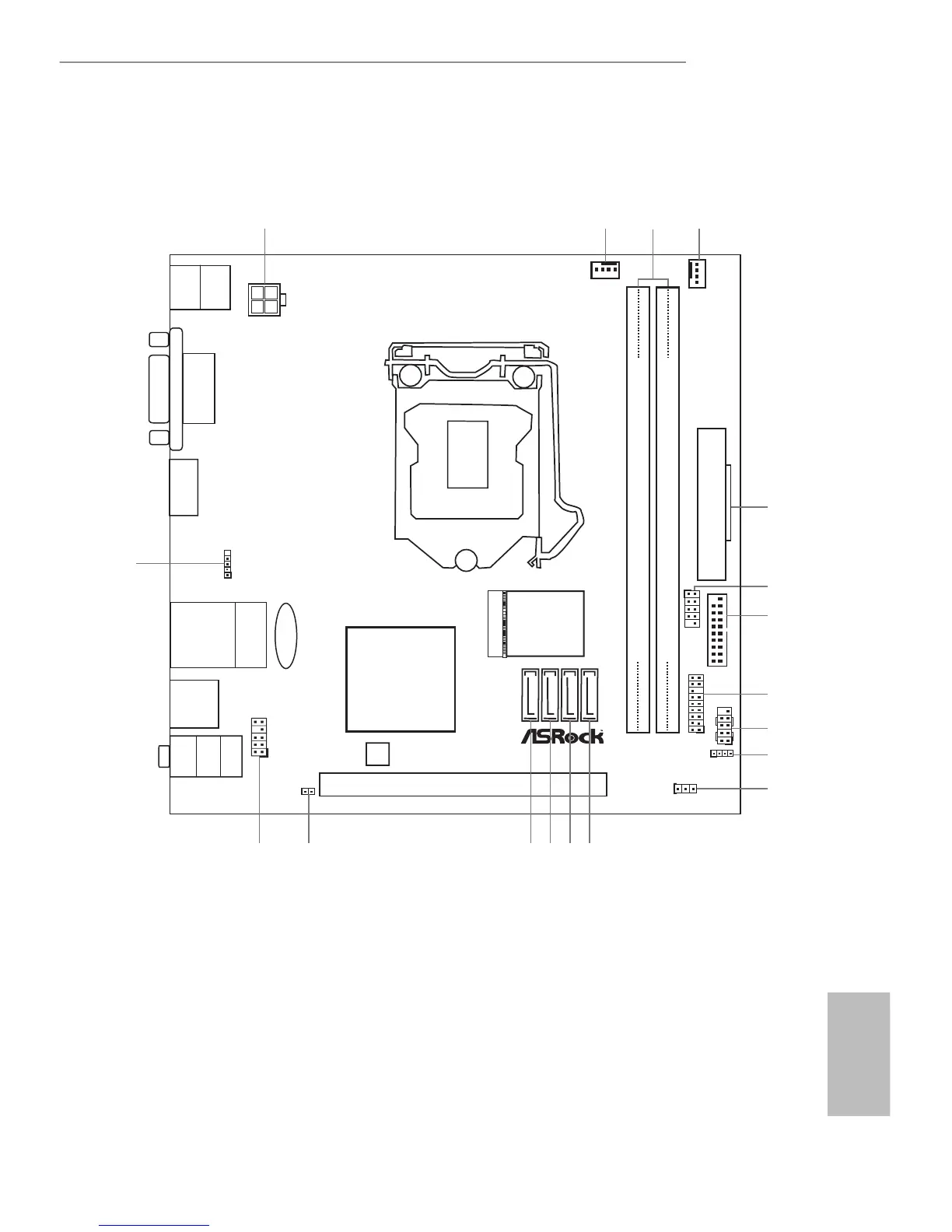

Motherboard Layout
HDMI1
DVI1
CLRMO S1
1
1
TPMS1
Intel
H110
DDR4_B1 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
PCIE1
USB 2.0
T: USB1
B: US B2
PS2
Keyboard
/Mouse
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
Top:
RJ-45
USB 3.0
T: USB3
B: USB4
USB 2.0
T: USB5
B: USB6
CHA_ FAN1
ATXPWR1
USB3_7 _ 8
HDL ED RE SE T
PLE D PWRB TN
PANE L1
1
SATA3 _3
SATA3 _2
SATA3 _1
SATA3 _0
BIOS
ROM
1
CI1
1
SPE AKE R1
1
HD_A UD IO1
2
4
3
5
7
6
8
9
11
13
10
14
15
17
12
CPU_ FAN1
USB_9 _1 0
1
CMOS
Batt ery
1
USB 11
16
18
PCI Express 3.0
Front USB 3.0
ATX1 2V 1
1
M2_1
WiFi-802.11ac
Module

ASROCK H110M-ITX/ac Specifications

General

Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Processor thermal power (max)	95 W
Intel® Core i3/i5/i7/i9 series	i3-6xxx, i5-6xxx, i7-6xxx
Maximum number of SMP processors	1
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133 MHz
Audio chip	Realtek ALC892
Cooling type	Passive
Component for	Mini PC
Power source type	ATX
Motherboard chipset	Intel® H110
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Cables included	SATA
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
LAN controller	Intel® I219-V
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Ethernet interface type	Gigabit Ethernet
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	Not supported
Supported storage drive interfaces	M.2, SATA III
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	64 Mbit
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	- mm
