83
Türkçe
H110M-ITX/ac
H110M-ITX

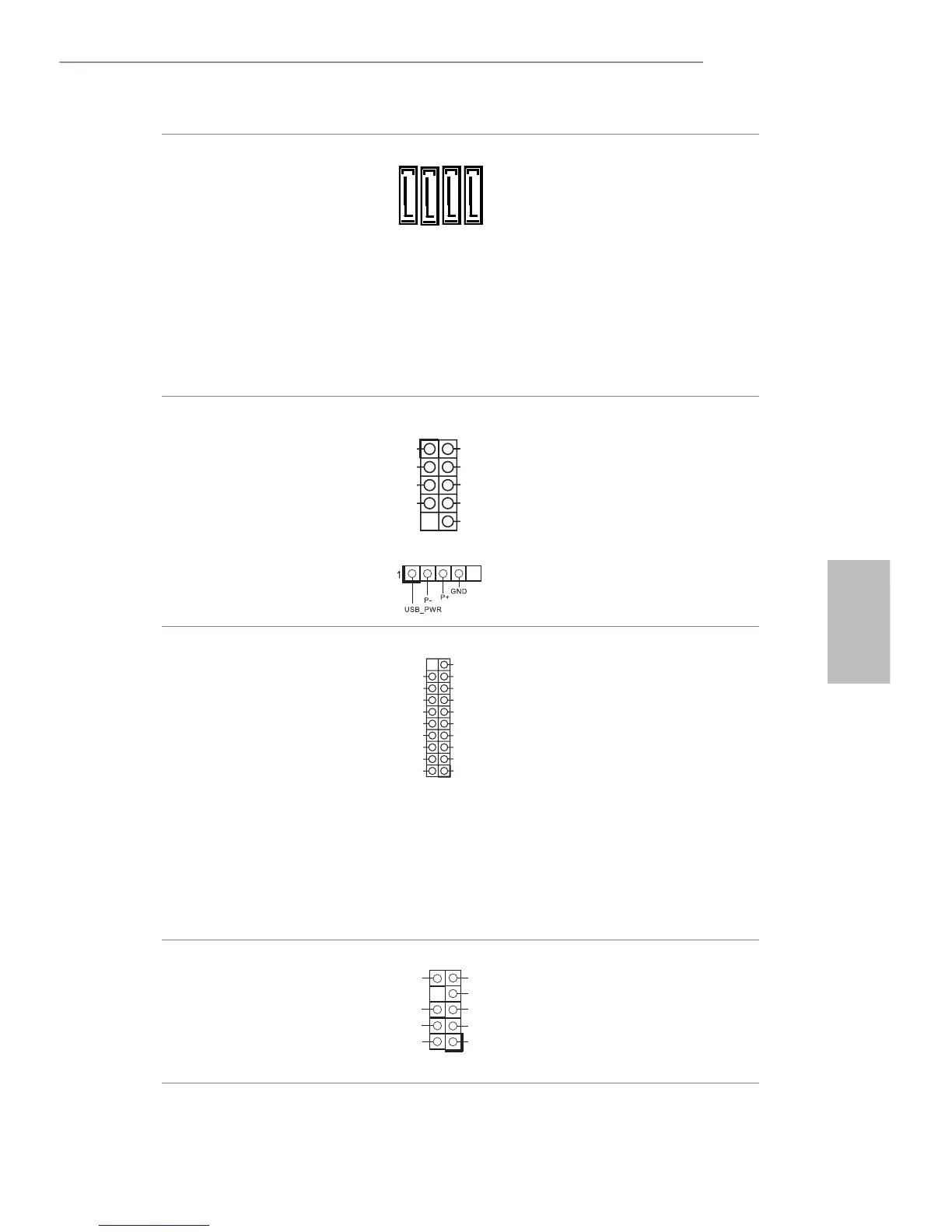

Seri ATA3 Bağlayıcıları
(SATA3_0:
bkz. sf.1, No. 12)
(SATA3_1:
bkz. sf.1, No. 13)
(SATA3_2:
bkz. sf.1, No. 14)
(SATA3_3:
bkz. sf.1, No. 15)
Bu dört SATA3 bağlayıcısı,
veri aktarım hızı 6,0 Gb/
sn'ye kadar olan dahili
depolama aygıtları için
tasarlanmış SATA veri
kablolarını destekler.
USB 2.0 Bağlantıları
(9-pin USB_9_10)
(bkz. sf.1, No. 6)
(4-pin USB11)
(bkz. sf.1, No. 18)
Bu ana kartta bir ana
bağlantı ve bir bağlantı
noktası vardır. Her USB 2.0
bağlantısı, iki adet bağlan
noktasını destekleyebilir.
USB 3.0 Bağlan
(19-pin USB3_7_8)
(bkz. sf.1, No. 7)
Bu anakart üzerinde, I/O
paneli üzerindeki iki USB
3.0 bağlantı noktasının
yanı sıra, bir adet bağlan
bulunmaktadır. Her
USB 3.0 bağlantısı, iki
adet bağlantı noktasını
destekleyebilir.
* USB3_7_8 bağlayıcısı
USB_9_10 bağlan
noktasıyla paylaşılır.
Ön Panel Ses Bağlantısı
(9-pin HD_AUDIO1)
(bkz. sf.1, No. 17)
Bu bağlantı, ses aygıtlarının
ön ses paneline bağlanması
içindir.
J_SENS E
OUT2_L
MIC_RET
PRESENCE#
GN D
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1
DUMMY
GND GND
P+
P-
P+
P-
USB_PWR
USB_PWR
1
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
SATA3_3
SATA3_2
SATA3_1
SATA3_0
