33

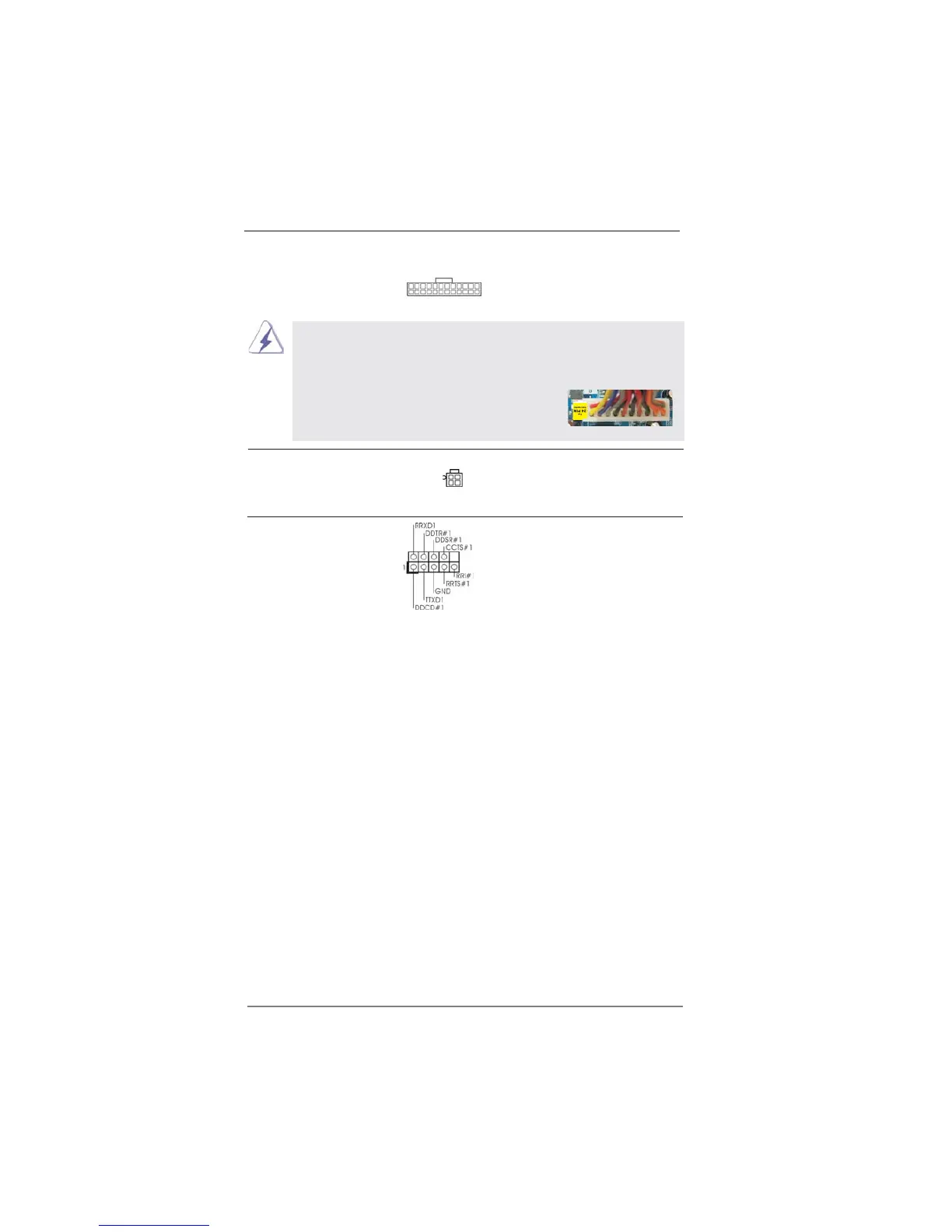

ATX Power Connector Please connect an ATX power
(24-pin ATXPWR1)
supply to this connector.
(see p.12/13 No. 11)
20-Pin ATX Power Supply Installation
Though this motherboard provides 24-pin ATX power connector, it can still work if
you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power
supply, please plug your power supply along with Pin 1 and Pin 13.
ATX 12V Power Connector Please connect an ATX 12V
(4-pin ATX12V1)
power supply to this connector.
(see p.12 No. 19 or p.13 No. 17)
Serial port Header This COM1 header supports a
(9-pin COM1)
serial port module.
(see p.12/13 No. 10)
12 1
24 13
12 1
24 13
To Next Page
