ASROCK H77 Pro4/MVP Quick Installation Guide

18
ASRock H77 Pro4/MVP Motherboard
English

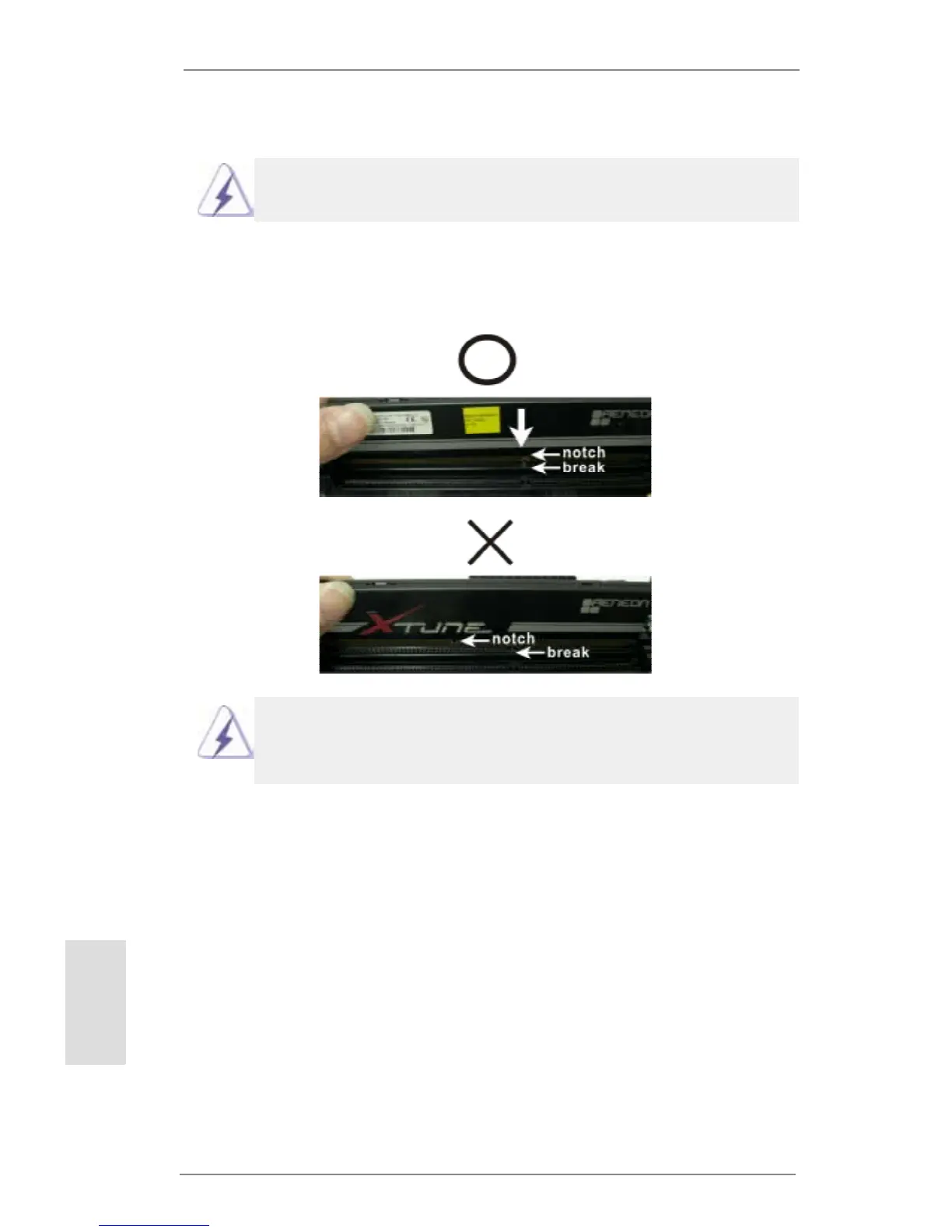

Installing a DIMM
Please make sure to disconnect power supply before adding or
removing DIMMs or the system components.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the
break on the slot.
The DIMM only ts in one correct orientation. It will cause permanent
damage to the motherboard and the DIMM if you force the DIMM into
the slot in incorrect orientation.
Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends
fully snap back in place and the DIMM is properly seated.

ASROCK H77 Pro4/MVP Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	2
Number of Parallel ATA connectors	0
HDMI version	1.4a
USB 2.0 ports quantity	6
Certification	FCC, CE, WHQL, ErP/EuP
Component for	PC
Motherboard chipset	Intel H77
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1760 MB
Parallel processing technology support	2-Way CrossFireX, 4-Way CrossFireX
PCI slots	3
PCI Express slots version	2.0, 3.0
Cables included	SATA
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	201 mm
Width	305 mm
