24
ASRock H77 Pro4/MVP Motherboard
English
2. If you have already installed the onboard VGA driver from our support CD to your
system, you can freely enjoy the benets of dual monitor function after your
system boots. If you haven’t installed the onboard VGA driver yet, please install
the onboard VGA driver from our support CD to your system and restart your
computer.
2.8 Dual Monitor and Surround Display Features
Dual Monitor Feature
This motherboard supports dual monitor feature. With the internal VGA output sup-
port (DVI-D, D-Sub and HDMI), you can easily enjoy the benets of dual monitor
feature without installing any add-on VGA cards to this motherboard. This mother-
board also provides independent display controllers for DVI-D, D-Sub and HDMI to
support dual VGA output so that DVI-D, D-sub and HDMI can drive same or different
display contents.
To enable dual monitor feature, please follow the steps below:

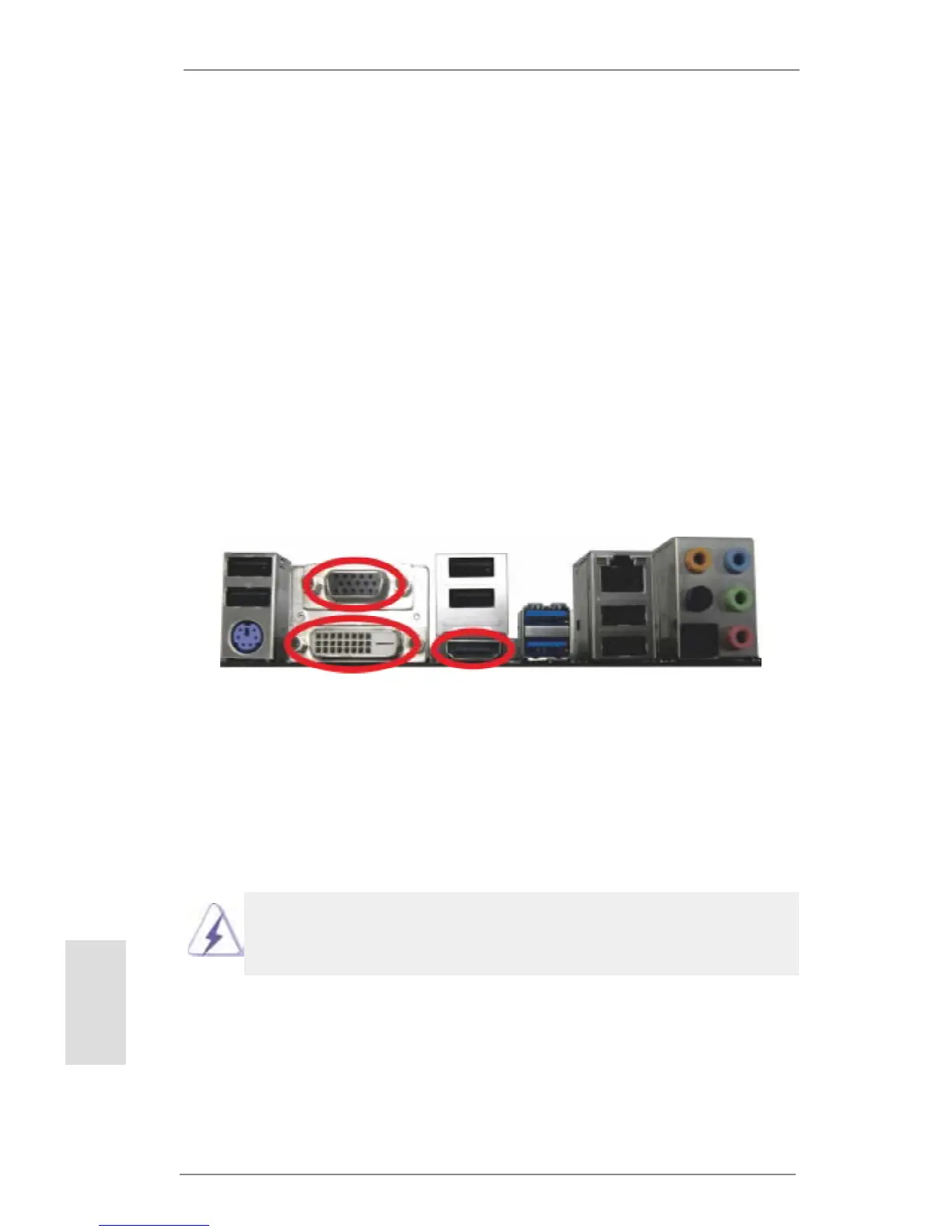

1. Connect a DVI-D monitor cable to the DVI-D port on the I/O panel, connect a
D-Sub monitor cable to the D-Sub port on the I/O panel and connect a HDMI
monitor cable to the HDMI port on the I/O panel.
HDMI port
D-Sub port
DVI-D port
D-Sub, DVI-D and HDMI monitors cannot be enabled at the same time.
You can only choose the combination: DVI-D + HDMI, DVI-D + D-Sub,
or HDMI + D-Sub.

Other manuals for ASROCK H77 Pro4/MVP

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ASROCK H77 Pro4/MVP and is the answer not in the manual?

ASROCK H77 Pro4/MVP Specifications

General IconGeneral
Non-ECCYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR3-SDRAM
Maximum internal memory32 GB
Supported memory clock speeds1066, 1333, 1600 MHz
Processor socketLGA 1155 (Socket H2)
Processor manufacturerIntel
Compatible processor seriesIntel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors1
USB 2.0 connectors2
Number of Parallel ATA connectors0
HDMI version1.4a
USB 2.0 ports quantity6
CertificationFCC, CE, WHQL, ErP/EuP
Component forPC
Motherboard chipsetIntel H77
Audio output channels7.1 channels
Motherboard form factorATX
Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
RAID levels0, 1, 5, 10
Supported storage drive interfacesSATA II, SATA III
DirectX version11
Maximum resolution2048 x 1536 pixels
Maximum graphics card memory1760 MB
Parallel processing technology support2-Way CrossFireX, 4-Way CrossFireX
PCI slots3
PCI Express slots version2.0, 3.0
Cables includedSATA
LAN controllerRealtek RTL8111E
Ethernet interface typeGigabit Ethernet
BIOS typeAMI
ACPI version1.1
BIOS memory size64 Mbit
Weight and Dimensions IconWeight and Dimensions
Depth201 mm
Width305 mm
