ASROCK H77 Pro4/MVP Quick Installation Guide

205
ASRock H77 Pro4/MVP Motherboard
Installing OS on a HDD Larger Than 2TB in RAID Mode
This motherboard adopts UEFI BIOS that allows Windows
®
OS to be installed on a
large size HDD (>2TB). Please follow the procedures below to install the operating
system.
1. Please make sure to use Windows
®
Vista
TM
64-bit (with SP1 or above) or
Windows
®
7 64-bit.
2. Copy Intel
®
RAID drivers into a USB ash disk. You can download the driver from
ASRock's website and unzip the le into a USB ash disk OR copy the le from
ASRock motherboard support CD. (please copy the les under the following
directory:
32 bit: ..\i386\Win7_Vista_Intel_v11.0.0.1032
64-bit: ..\AMD64\Win7-64_Vista64_Intel_v11.0.0.1032
3. Create a RAID array for you system. Please refer to "Intel RAID Installation
Guide" le for details.
4. Install Windows
®
Vista
TM
64-bit / 7 64-bit:
A. Insert your Windows
®
Vista
TM
64-bit / 7 64-bit installation disc to the optical
drive.
B. Press <F11> to launch boot menu at system POST and choose the item
“UEFI:xxx“ to boot.
C. Start Windows
®

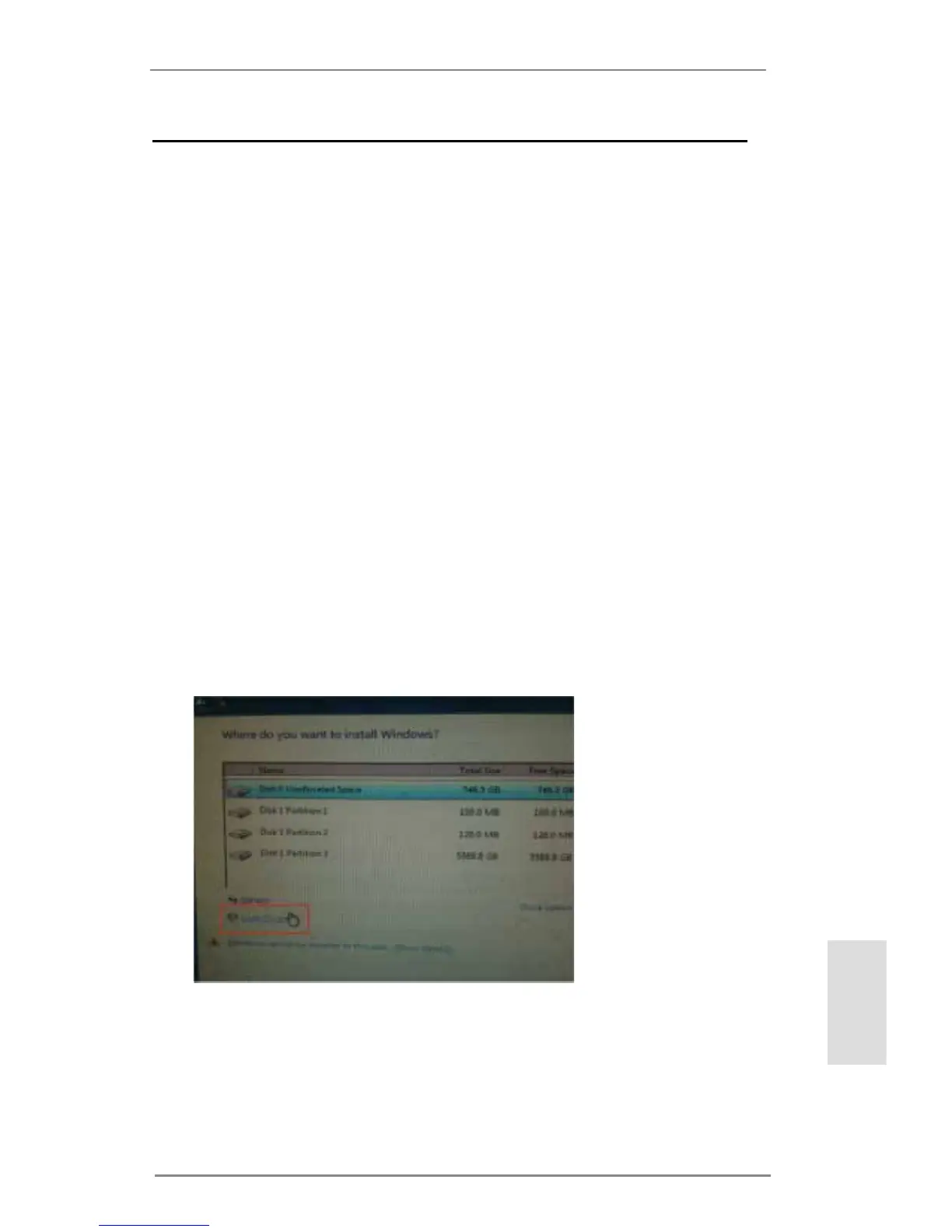

Installation. When you see “Where do you want to install
Windows?” page, please click “Load Driver”.
D. Plug the USB ash disk into your USB port; select “Browse” to nd the RAID
driver. Then choose the directory (xx\AMD64\) you have copied in the rst
step.
English

ASROCK H77 Pro4/MVP Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	2
Number of Parallel ATA connectors	0
HDMI version	1.4a
USB 2.0 ports quantity	6
Certification	FCC, CE, WHQL, ErP/EuP
Component for	PC
Motherboard chipset	Intel H77
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1760 MB
Parallel processing technology support	2-Way CrossFireX, 4-Way CrossFireX
PCI slots	3
PCI Express slots version	2.0, 3.0
Cables included	SATA
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	201 mm
Width	305 mm
