ASROCK H77 Pro4/MVP Quick Installation Guide

2
ASRock H77 Pro4/MVP Motherboard
English

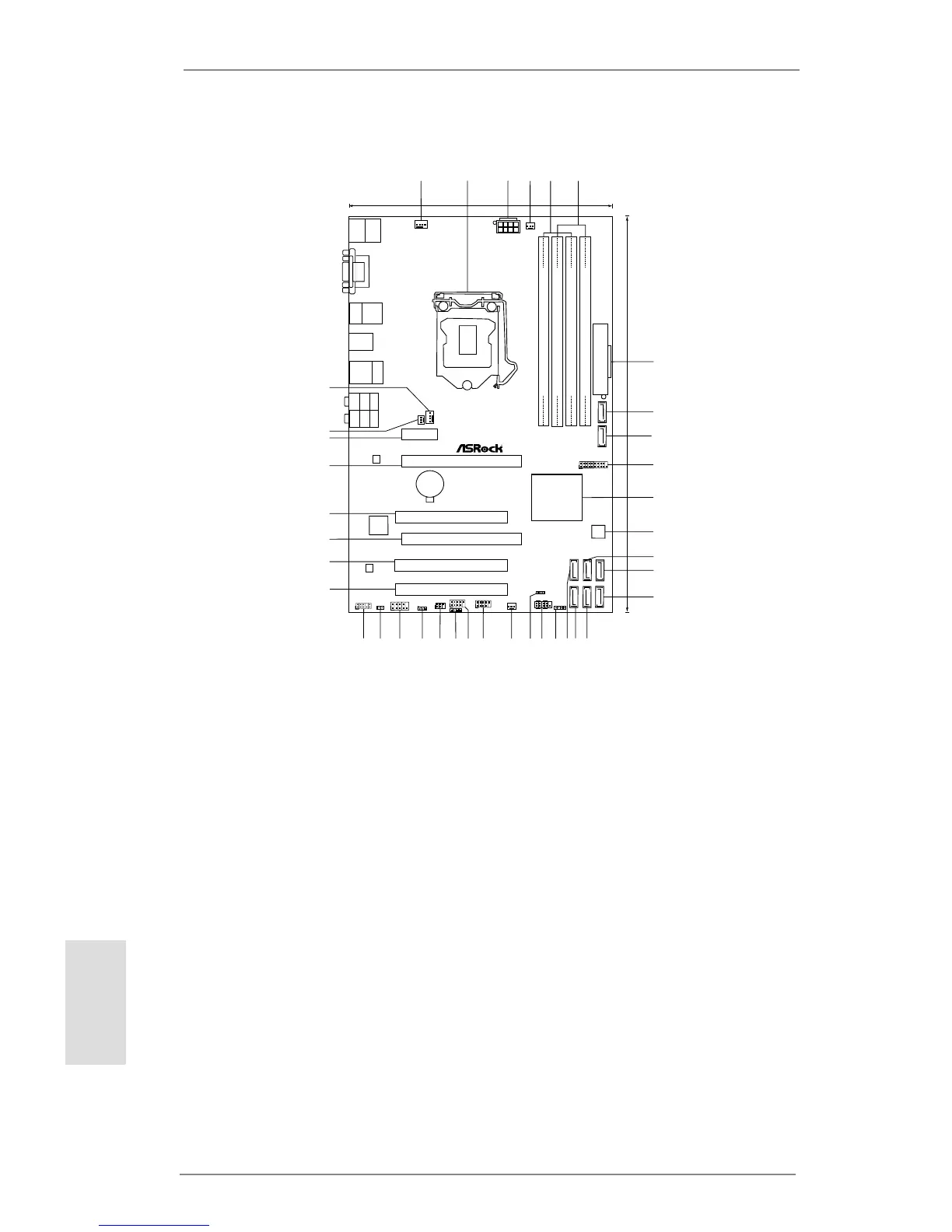

Motherboard Layout
1 CPU Fan Connector (CPU_FAN1)
2 1155-Pin CPU Socket
3 ATX 12V Power Connector (ATX12V1)
4 CPU Fan Connector (CPU_FAN2)
5 2 x 240-pin DDR3 DIMM Slots
(DDR3_A1, DDR3_B1, Black)
6 2 x 240-pin DDR3 DIMM Slots
(DDR3_A2, DDR3_B2, Black)
7 ATX Power Connector (ATXPWR1)
8 SATA3 Connectors (SATA3_A1, Gray)
9 SATA3 Connectors (SATA3_A2, Gray)
10 USB 3.0 Header (USB3_0_1, Black)
11 Intel H77 Chipset
12 SPI Flash Memory (64Mb)
13 SATA2 Connectors (SATA2_4, Black)
14 SATA2 Connectors (SATA2_3, Black)
15 SATA3 Connectors (SATA3_0, Gray)
16 SATA3 Connectors (SATA3_1, Gray)
17 SATA2 Connectors (SATA2_2, Black)
18 SATA2 Connectors (SATA2_5, Black)
19 Chassis Speaker Header (SPEAKER1, Black)
20 System Panel Header (PANEL1, Black)
Intel
H77
SATA3_ 0
SATA3_ 1
SATA2_ 2
SATA2_ 5
SATA2_ 3
SATA2_ 4
CHA_FAN2
64Mb
BIOS
DDR3_ A2 (6 4 bit, 240-pin modul e)
DDR3_ A1 (6 4 bit, 240-pin modul e)
DDR3_ B2 (6 4 bit, 240-pin modul e)
DDR3_ B1 (6 4 bit, 240-pin modul e)
ATX12V1
CPU_FAN1
CMOS
Battery
Super
I/O
USB 2.0
T: USB0
B: USB1
PS2
Keyboa rd
ATXPWR1
1
USB3_0_1
CPU_FAN2
AUDIO
CODEC
LAN
PHY
1
HD_AUDIO1
1
HDMI_SPDIF1
COM1
1
CLRCMOS1
1
IR1
1
USB_8_9
1
CIR1
1
USB_6_7
1
HDLED RESET
PLED PWRBTN
PANEL1
1
PLED1
1
1
SPEAKER1
PCIE1
PCIE2
PCIE3
PCI1
PCI2
PCI3
CHA_FAN1
PWR_FAN1
VGA1
DVI1
HDMI1
USB 2.0
T: USB2
B: USB3
USB 3.0
T: USB2
B: USB3
Top:
RJ-45
USB 2.0
T: USB4
B: USB5
Top:
Cen tral/ Bass
Cen ter:
REA R SPK
Top:
LIN E IN
Cen ter:
FRO NT
Bot tom:
Opt ical
SPD IF
Bot tom:
MIC I N
20.1cm (7.9 in)
30.5cm (12.0 in)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
18
19
15
16
17
20
21
22
2324
25
26
27
28
29
30
31
32
33
34
35
36
37
RoHS
Front USB 3.0
H77 Pro4/MVP
XFast USB
XFast LAN
PCI Express 3.0
Designe d in Taipei
ErP/EuP Ready
SATA3 6Gb/s
X ast RAMF
SATA3_ A1
SATA3_ A2
38
21 Power LED Header (PLED1)
22 Chassis Fan Connector (CHA_FAN2)
23 USB 2.0 Header (USB_6_7, Black)
24 USB 2.0 Header (USB_8_9, Black)
25 Consumer Infrared Module Header
(CIR1, Gray)
26 Infrared Module Header (IR1)
27 Clear CMOS Jumper (CLRCMOS1)
28 COM Port Header (COM1)
29 HDMI_SPDIF Header
(HDMI_SPDIF1, Black)
30 Front Panel Audio Header
(HD_AUDIO1, Black)
31 PCI Slot (PCI3, Black)
32 PCI Slot (PCI2, Black)
33 PCI Express 2.0 x16 Slot (PCIE3, Black)
34 PCI Slot (PCI1, Black)
35 PCI Express 3.0 x16 Slot (PCIE2, Black)
36 PCI Express 2.0 x1 Slot (PCIE1, Black)
37 Power Fan Connector (PWR_FAN1)
38 Chassis Fan Connector (CHA_FAN1)

ASROCK H77 Pro4/MVP Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	2
Number of Parallel ATA connectors	0
HDMI version	1.4a
USB 2.0 ports quantity	6
Certification	FCC, CE, WHQL, ErP/EuP
Component for	PC
Motherboard chipset	Intel H77
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1760 MB
Parallel processing technology support	2-Way CrossFireX, 4-Way CrossFireX
PCI slots	3
PCI Express slots version	2.0, 3.0
Cables included	SATA
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	201 mm
Width	305 mm
