ASROCK N68-VS3 FX User Manual

4747
4747
47

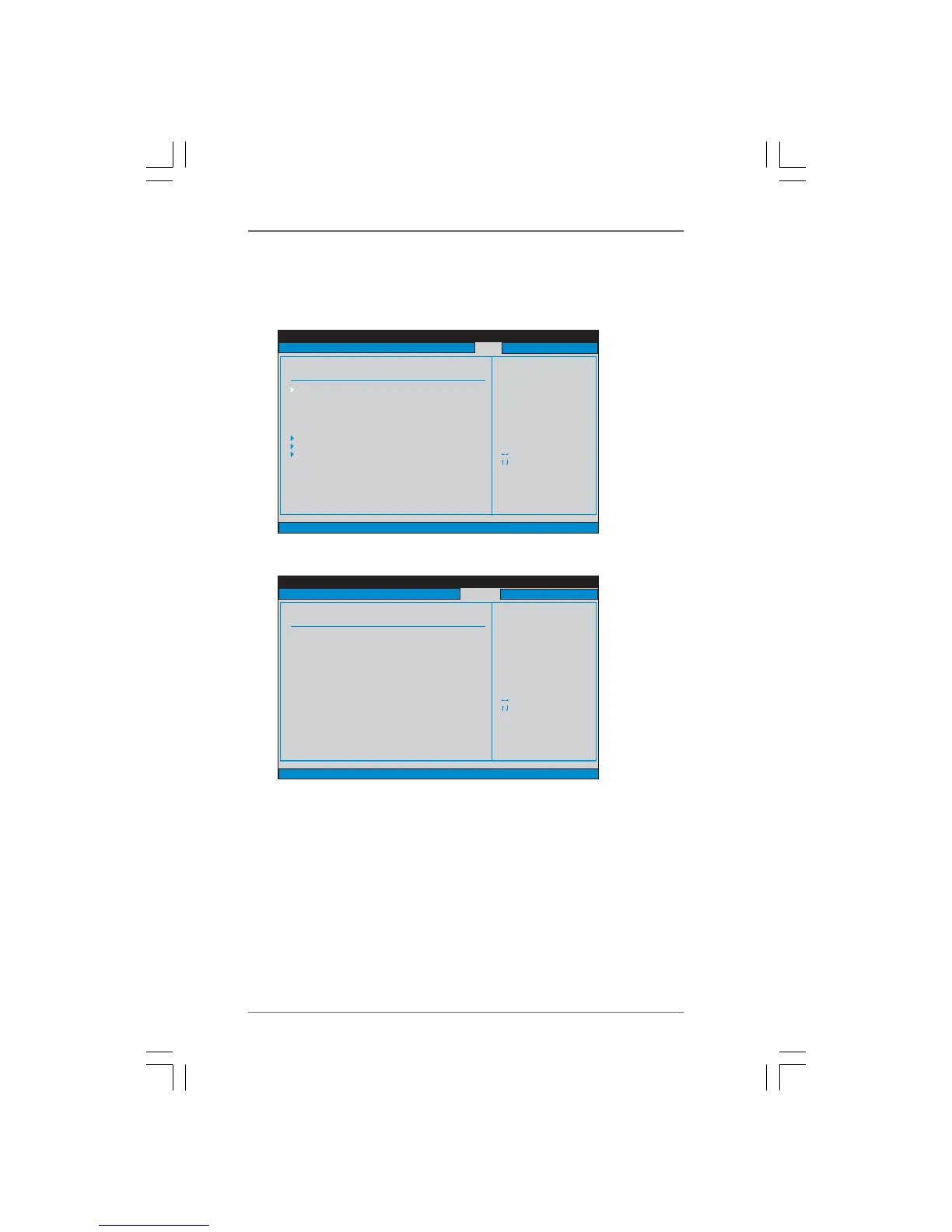

BIOS SETUP UTILITY
Main OC Tweaker Advanced H/W Monitor
Security Exit
Boot Settings
Configure Settings
during System Boot.
Select Screen
Select Item
Enter Go to Sub Screen
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
v02.54 (C) Copyright 1985-2005, American Megatrends, Inc.
Boot
Boot Settings Configuration
1st Boot Device
2nd Boot Device
3rd Boot Device
4th Boot Device
Hard Disk Drives
Removable Drives
CD/DVD Drives
[1st Floppy Device]
[HDD: PM - HDS722580VL]
[CD/DVD: 3S-CD-ROM C]
[USB]
BIOS SETUP UTILITY
Boot Settings Configuration
To enable or disable the
boot from network feature.
Select Screen
Select Item
+ - Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
v02.54 (C) Copyright 1985-2003, American Megatrends, Inc.
Boot
Boot From Onboard LAN
Bootup Num-Lock
[Disabled]
[On]
3.63.6
3.63.6
3.6
Boot ScreenBoot Screen
Boot ScreenBoot Screen
Boot Screen
In this section, it will display the available devices on your system for you to config-
ure the boot settings and the boot priority.
3.6.13.6.1
3.6.13.6.1
3.6.1
Boot Settings ConfigurationBoot Settings Configuration
Boot Settings ConfigurationBoot Settings Configuration
Boot Settings Configuration
Boot From Onboard LAN
Use this item to enable or disable the Boot From Onboard LAN feature.
Boot Up Num-Lock
If this item is set to [On], it will automatically activate the Numeric Lock
function after boot-up.

ASROCK N68-VS3 FX Specifications

General

CPU Socket	AM3+
Chipset	NVIDIA GeForce 7025 / nForce 630a
Memory Slots	2 x DDR3 DIMM
Maximum Memory	16GB
Expansion Slots	1 x PCI Express x16, 1 x PCI Express x1, 1 x PCI
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Form Factor	Micro ATX
Audio Chipset	VIA VT1705
LAN Chipset	Realtek RTL8201EL
Max. LAN Speed	10/100 Mbps
PS/2 Ports	1 x PS/2 keyboard, 1 x PS/2 mouse
Video Outputs	1 x VGA
