ASROCK N68C-GS FX User Manual

1818
1818
18
notch
break

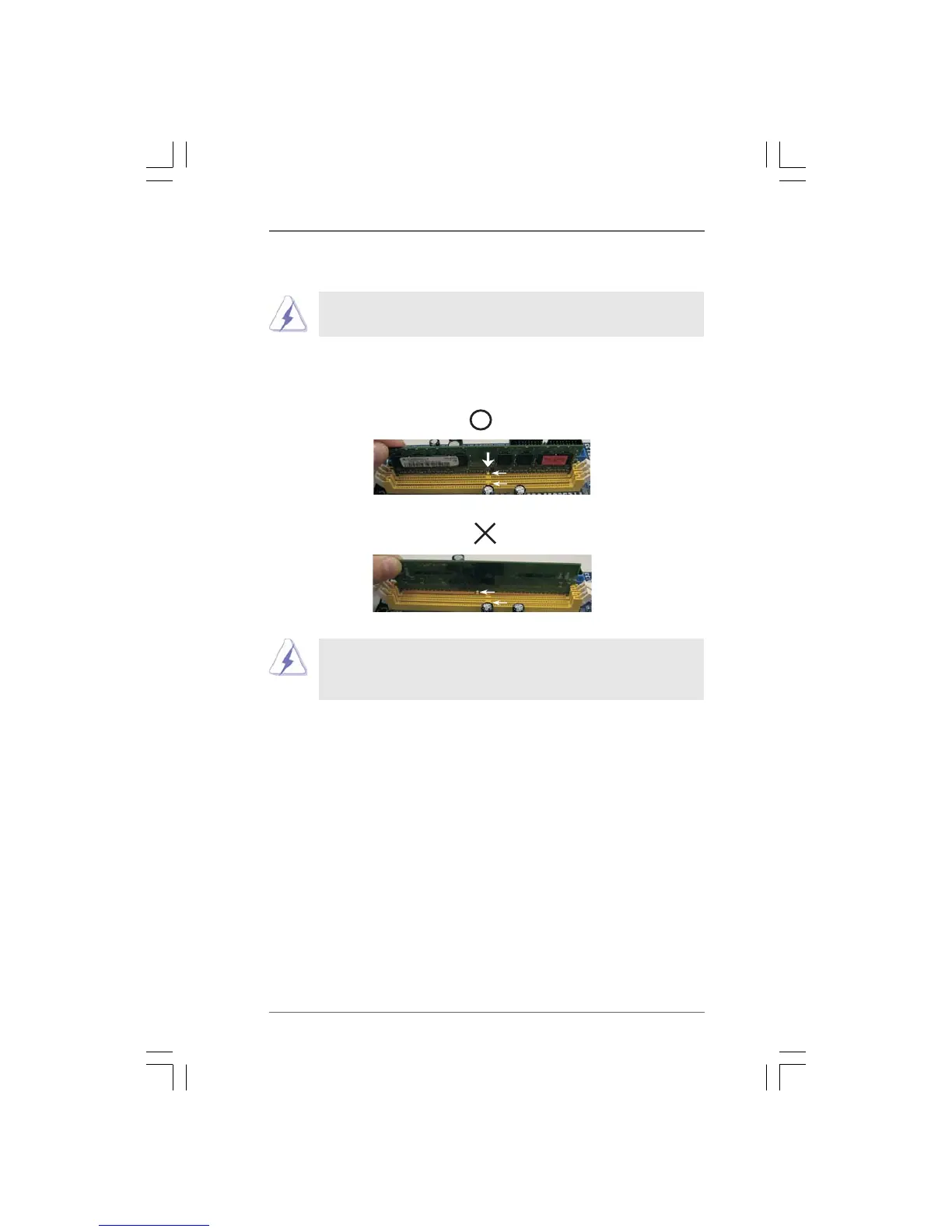

Installing a DIMMInstalling a DIMM
Installing a DIMMInstalling a DIMM
Installing a DIMM
Please make sure to disconnect power supply before adding or
removing DIMMs or the system components.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break
on the slot.
The DIMM only fits in one correct orientation. It will cause permanent
damage to the motherboard and the DIMM if you force the DIMM into the slot
at incorrect orientation.
Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully
snap back in place and the DIMM is properly seated.
notch
break

ASROCK N68C-GS FX Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR2-SDRAM, DDR3-SDRAM
Maximum internal memory	8 GB
Supported memory clock speeds	533, 667, 800, 1066, 1333, 1600 MHz
System bus rate	2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Maximum number of SMP processors	1
Processor system buses supported	1000 MHz
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Certification	FCC, CE, WHQL
Component for	PC
Power source type	ATX
Motherboard chipset	NVIDIA nForce 630a
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	NVIDIA
RAID levels	0, 1, 0+1, 5, JBOD
Supported storage drive interfaces	SATA II
Graphics card	GeForce 7025
Maximum graphics card memory	256 MB
Parallel processing technology support	-
Cables included	SATA
LAN controller	Realtek RTL8211CL
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	8 Mbit

Weight and Dimensions

Depth	208 mm
Width	244 mm
