ASROCK N68C-GS FX User Manual

5151
5151
51

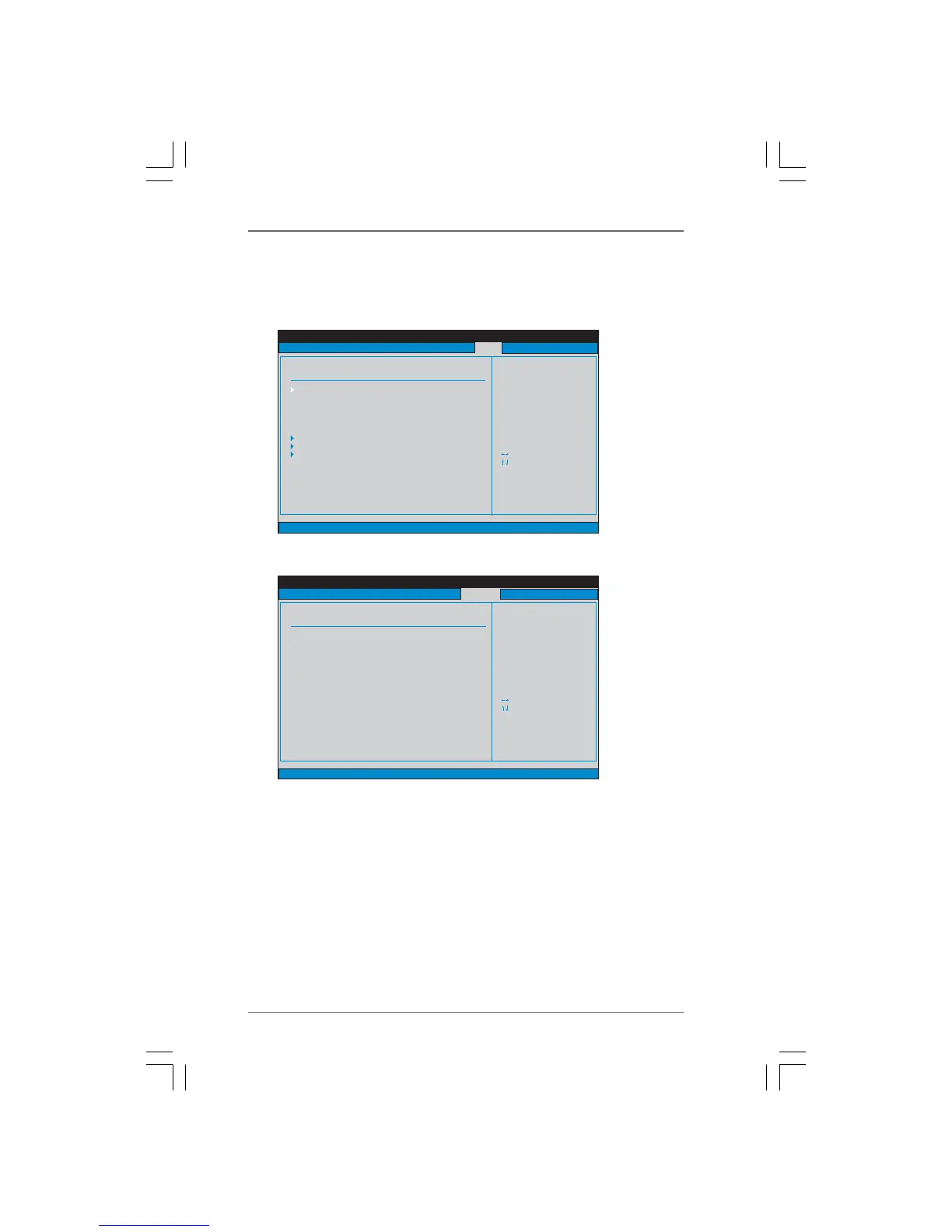

BIOS SETUP UTILITY
Main OC Tweaker Advanced H/W Monitor
Security Exit
Boot Settings
Configure Settings
during System Boot.
Select Screen
Select Item
Enter Go to Sub Screen
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
v02.54 (C) Copyright 1985-2005, American Megatrends, Inc.
Boot
Boot Settings Configuration
1st Boot Device
2nd Boot Device
3rd Boot Device
4th Boot Device
Hard Disk Drives
Removable Drives
CD/DVD Drives
[1st Floppy Device]
[HDD: PM - HDS722580VL]
[CD/DVD: 3S-CD-ROM C]
[USB]
BIOS SETUP UTILITY
Boot Settings Configuration
Disabled: Displays
normal POST messages.
Enabled: Displays OEM
Logo instead of POST
messages.
Select Screen
Select Item
+ - Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
v02.54 (C) Copyright 1985-2003, American Megatrends, Inc.
Boot
AddOn ROM Display
Boot From Onboard LAN
Bootup Num-Lock
[Enabled]
[Disabled]
[On]
Full Screen Logo
[Enabled]
3.63.6
3.63.6
3.6
Boot ScreenBoot Screen
Boot ScreenBoot Screen
Boot Screen
In this section, it will display the available devices on your system for you to config-
ure the boot settings and the boot priority.
3.6.13.6.1
3.6.13.6.1
3.6.1
Boot Settings ConfigurationBoot Settings Configuration
Boot Settings ConfigurationBoot Settings Configuration
Boot Settings Configuration
Full Screen Logo
Use this item to enable or disable OEM Logo. The default value is [Enabled].
AddOn ROM Display
Use this option to adjust AddOn ROM Display. If you enable the option
“Full Screen Logo” but you want to see the AddOn ROM information when
the system boots, please select [Enabled]. Configuration options: [Enabled]
and [Disabled]. The default value is [Enabled].
Boot From Onboard LAN
Use this item to enable or disable the Boot From Onboard LAN feature.
Boot Up Num-Lock
If this item is set to [On], it will automatically activate the Numeric Lock
function after boot-up.

ASROCK N68C-GS FX Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR2-SDRAM, DDR3-SDRAM
Maximum internal memory	8 GB
Supported memory clock speeds	533, 667, 800, 1066, 1333, 1600 MHz
System bus rate	2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Maximum number of SMP processors	1
Processor system buses supported	1000 MHz
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Certification	FCC, CE, WHQL
Component for	PC
Power source type	ATX
Motherboard chipset	NVIDIA nForce 630a
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	NVIDIA
RAID levels	0, 1, 0+1, 5, JBOD
Supported storage drive interfaces	SATA II
Graphics card	GeForce 7025
Maximum graphics card memory	256 MB
Parallel processing technology support	-
Cables included	SATA
LAN controller	Realtek RTL8211CL
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	8 Mbit

Weight and Dimensions

Depth	208 mm
Width	244 mm
