ASROCK P67 PRO3 User Manual

17
Pin1
alignment key
alignment key
Pin1
1155-Pin CPU
1155-Pin Socket

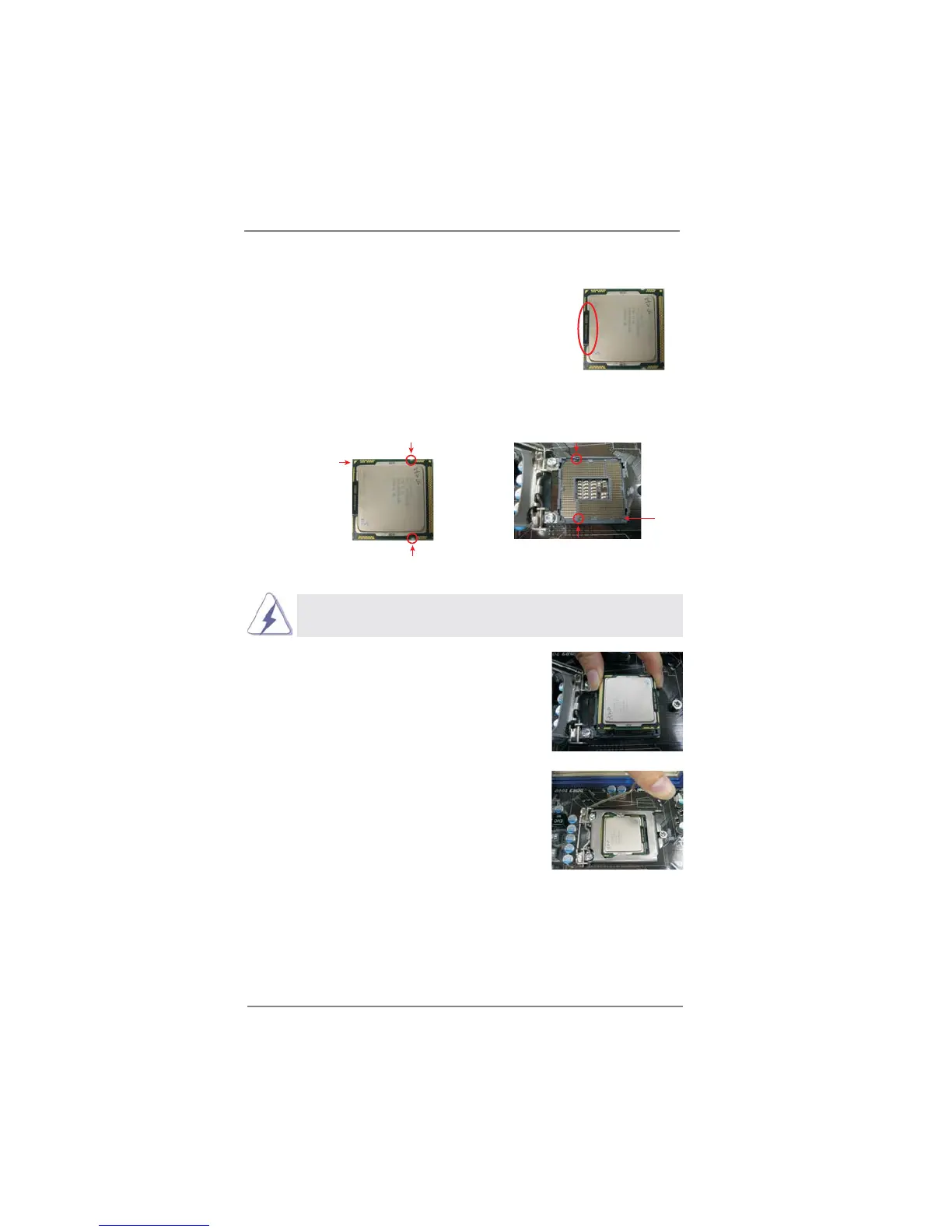

Step 3. Insert the 1155-Pin CPU:
Step 3-1. Hold the CPU by the edge where is
marked with black line.
Step 3-2. Orient the CPU with IHS (Integrated
Heat Sink) up. Locate Pin1 and the
two orientation key notches.
For proper inserting, please ensure to match the two orientation key
notches of the CPU with the two alignment keys of the socket.
Step 3-3. Carefully place the CPU into the
socket by using a purely vertical mo-
tion.
Step 3-4. Verify that the CPU is within the sock-
et and properly mated to the orient
keys.
Step 4. Close the socket:
Step 4-1. Rotate the load plate onto the IHS.
Step 4-2. While pressing down lightly on load
plate, engage the load lever.
orientation key notch
orientation key notch
black line

ASROCK P67 PRO3 Specifications

General

Form Factor	ATX
Chipset	Intel P67
Socket	LGA 1155
Memory Slots	4 x DIMM
Maximum Memory	32GB
Memory Type	DDR3
PCI Express x16	2
PCI Express x1	2
PCI Slots	2
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 2.0 Ports	8
USB 3.0 Ports	2
LAN	Gigabit Ethernet
Audio	7.1 Channel HD Audio
