ASROCK P67 PRO3 User Manual

20
notch
break
notch
break

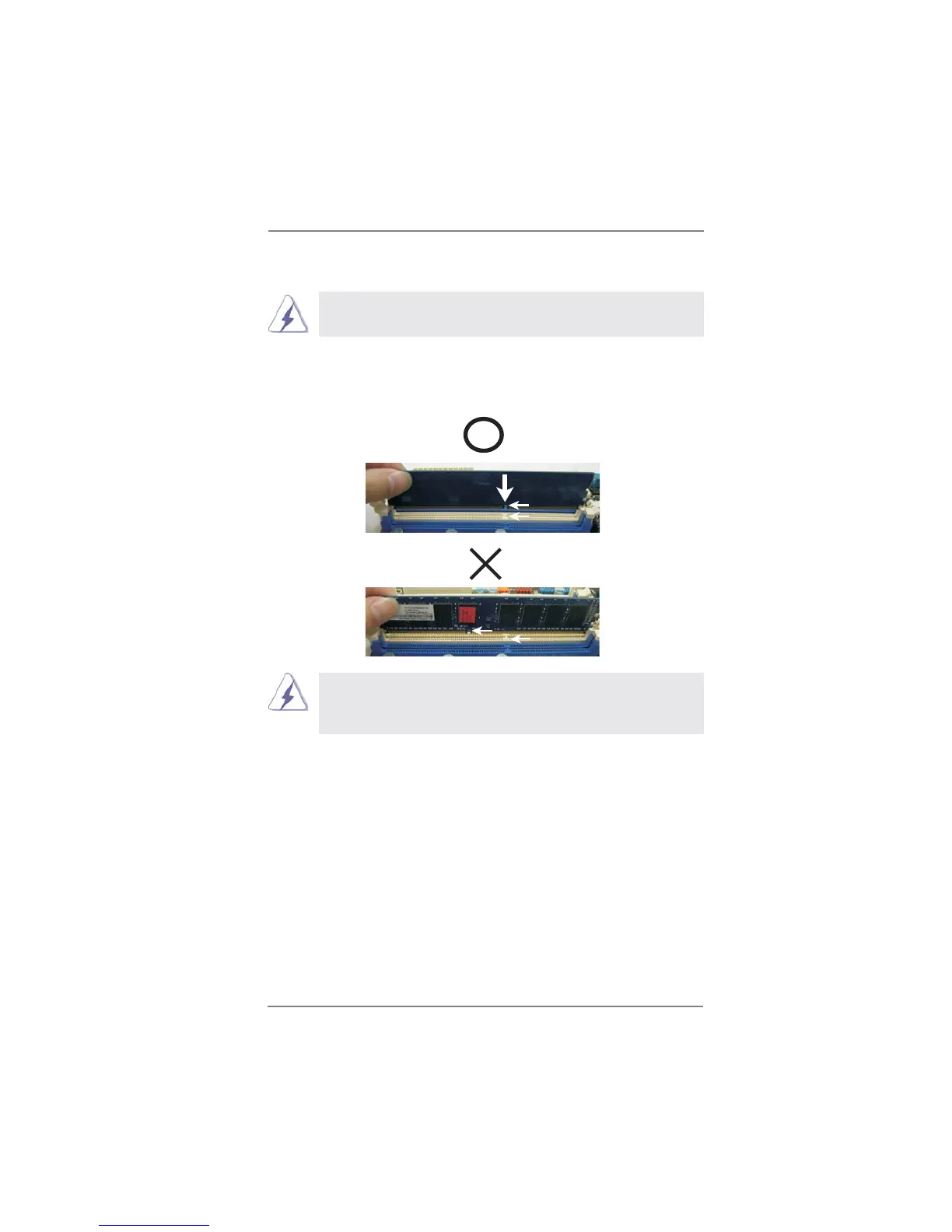

Installing a DIMM
Please make sure to disconnect power supply before adding or
removing DIMMs or the system components.
Step 1. Unlock a DIMM slot by pressing the retaining clips outward.
Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the
break on the slot.
The DIMM only fi ts in one correct orientation. It will cause permanent
damage to the motherboard and the DIMM if you force the DIMM into the slot
at incorrect orientation.
Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends
fully snap back in place and the DIMM is properly seated.

ASROCK P67 PRO3 Specifications

General

Form Factor	ATX
Chipset	Intel P67
Socket	LGA 1155
Memory Slots	4 x DIMM
Maximum Memory	32GB
Memory Type	DDR3
PCI Express x16	2
PCI Express x1	2
PCI Slots	2
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 2.0 Ports	8
USB 3.0 Ports	2
LAN	Gigabit Ethernet
Audio	7.1 Channel HD Audio
