ASROCK P67 PRO3 User Manual

24

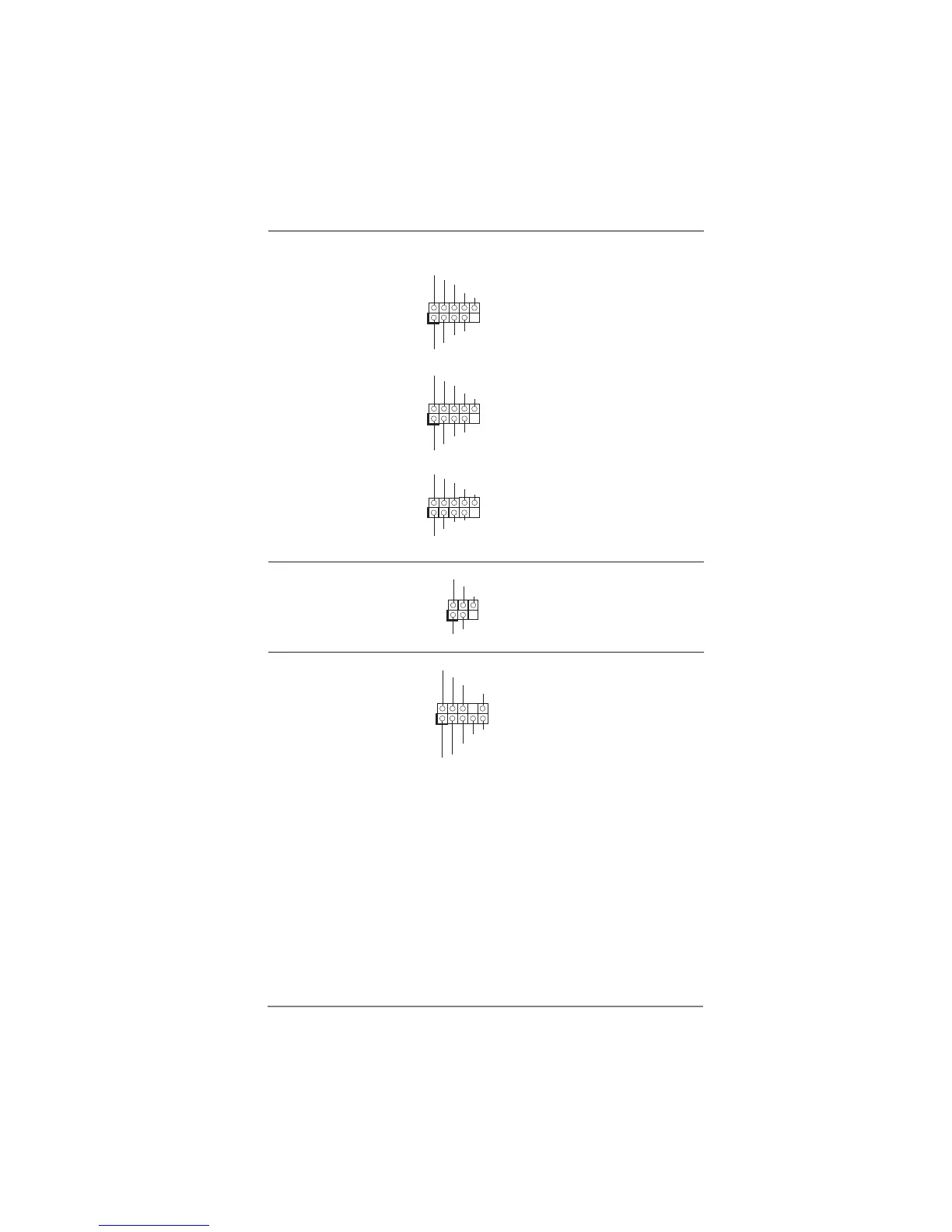

Infrared Module Header This header supports an
(5-pin IR1)
optional wireless transmitting
(see p.12 No. 28)
and receiving infrared module.
USB 2.0 Headers Besides six default USB 2.0
(9-pin USB8_9)
ports on the I/O panel, there
(see p.12 No. 25)
are three USB 2.0 headers on
this motherboard. Each
USB 2.0 header can support
two USB 2.0 ports.
(9-pin USB10_11)
(see p.12 No. 26)
(9-pin USB12_13)
(see p.12 No. 24)
1
IRTX
+5VSB
DUMMY
IRRX
GND
1
DUMMY
GND
P+13
P-13
USB_PWR
USB_PWR
GND
P+12
P-12
1
USB_PWR
P-8
GND
DUMMY
USB_PWR
P+8
GND
P-9
P+9
1
USB_P WR
P-10
GND
DUMMY
USB_P WR
P+10
GND
P-11
P+11
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1)
panel audio cable that allows
(see p.12 No. 31)
convenient connection and
control of audio devices.

ASROCK P67 PRO3 Specifications

General

Form Factor	ATX
Chipset	Intel P67
Socket	LGA 1155
Memory Slots	4 x DIMM
Maximum Memory	32GB
Memory Type	DDR3
PCI Express x16	2
PCI Express x1	2
PCI Slots	2
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 2.0 Ports	8
USB 3.0 Ports	2
LAN	Gigabit Ethernet
Audio	7.1 Channel HD Audio
