ASROCK P67 PRO3 User Manual

37

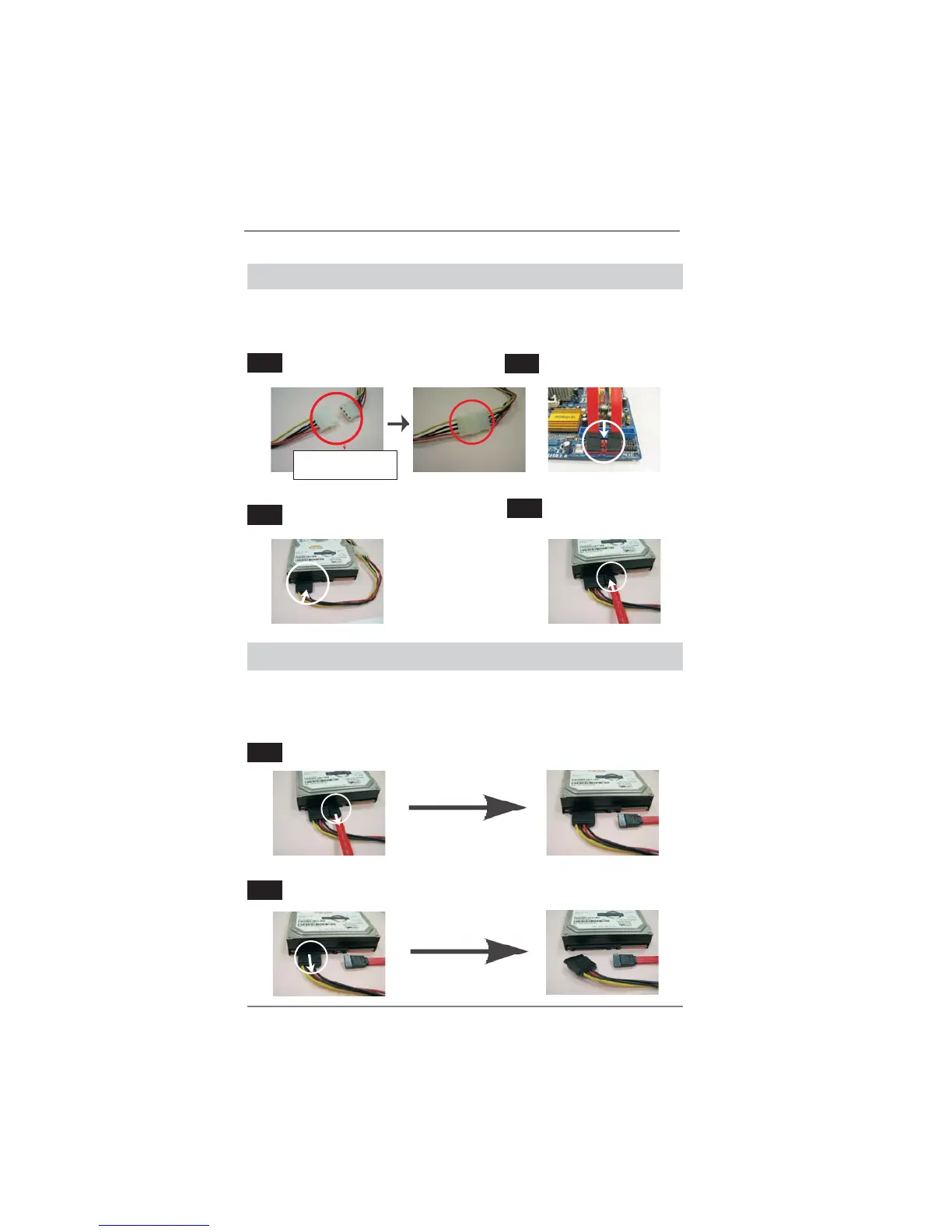

How to Hot Plug a SATA / SATAII / SATA3 HDD:
Points of attention, before you process the Hot Plug:
Please do follow below instruction sequence to process the Hot Plug, improper
procedure will cause the SATA / SATAII / SATA3 HDD damage and data loss.
Connect SATA data cable to
the motherboard’s SATAII / SATA3 connector.
Connect SATA 15-pin power cable connector
(Black) end to SATA / SATAII / SATA3 HDD.
Connect SATA data cable to
the SATA / SATAII / SATA3 HDD.
How to Hot Unplug a SATA / SATAII / SATA3 HDD:
Points of attention, before you process the Hot Unplug:
Please do follow below instruction sequence to process the Hot Unplug, improper
procedure will cause the SATA / SATAII / SATA3 HDD damage and data loss.
Please connect SATA power cable 1x4-pin end
(White) to the power supply 1x4-pin cable.
Step 1
Step 2
Step 3
Step 4
Step 2
SATA power cable 1x4-pin
power connector (White)
Unplug SATA data cable from SATA / SATAII / SATA3 HDD side.
Step 1
Unplug SATA 15-pin power cable connector (Black) from SATA / SATAII / SATA3 HDD side.

ASROCK P67 PRO3 Specifications

General

Form Factor	ATX
Chipset	Intel P67
Socket	LGA 1155
Memory Slots	4 x DIMM
Maximum Memory	32GB
Memory Type	DDR3
PCI Express x16	2
PCI Express x1	2
PCI Slots	2
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 2.0 Ports	8
USB 3.0 Ports	2
LAN	Gigabit Ethernet
Audio	7.1 Channel HD Audio
