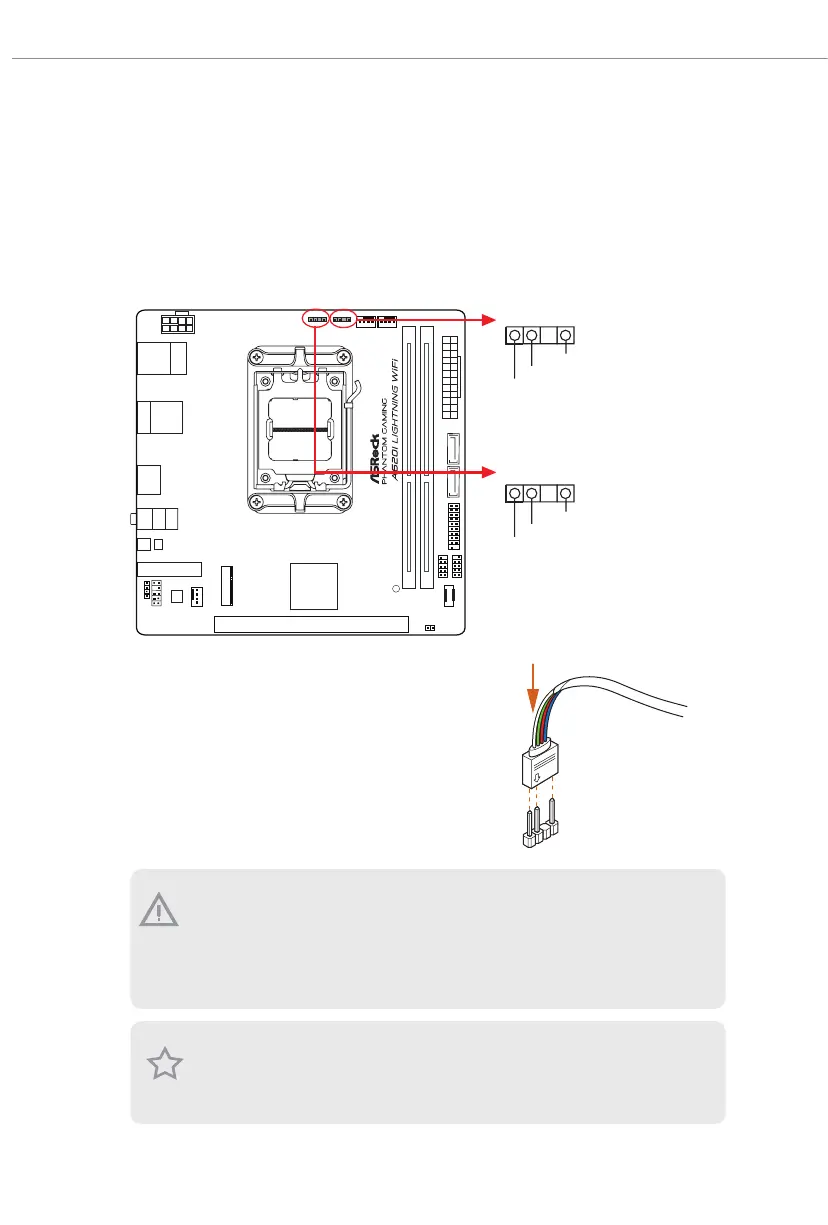

Addressable LED Headers
(3-pin ADDR_LED1) (see p.6, No. 2)
(3-pin ADDR_LED2) (see p.6, No. 3)
ese headers are used to connect Addressable LED extension cables which allow users
to choose from various LED lighting eects.
Caution: Never install the Addressable LED cable in the wrong orientation; otherwise,
the cable may be damaged.
1
Connect your Addressable RGB LED strips
to the Addressable LED Headers (ADDR_
LED1 / ADDR_LED2) on the motherboard.
1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable
may be damaged.
2. Before installing or removing your RGB LED cable, please power o your system
and unplug the power cord from the power supply. Failure to do so may cause dam-
ages to motherboard components.
1. Please note that the RGB LED strips do not come with the package.
2. e RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/
GND), with a maximum power rating of 3A (5V) and length within 2 meters.
VOUT
DO_ADDR
GN
D
1
ADDR_LED2
VOUT
DO_ADDR
GN
D
1
ADDR_LED1

ASROCK PHANTOM GAMING A620I LIGHTNING WiFi Specifications

General

Form Factor	Mini-ITX
Chipset	AMD A620
Socket	AM5
Memory Slots	2 x DIMM
Maximum Memory	64GB
PCIe Slots	1 x PCIe 4.0 x16
Bluetooth	Bluetooth 5.2
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Memory Support	DDR5
Storage Interface	4 x SATA3
USB Ports	2 x USB 2.0
Networking	Wi-Fi 6E, 2.5G LAN
Video Outputs	1 x HDMI, 1 x DisplayPort
