51
A620I Lightning WiFi
Step 5
Before securing the M.2 heatsink,
make sure to align the notch on
the SSD to the stando on the
motherboard; otherwise, the SSD
module may be damaged.

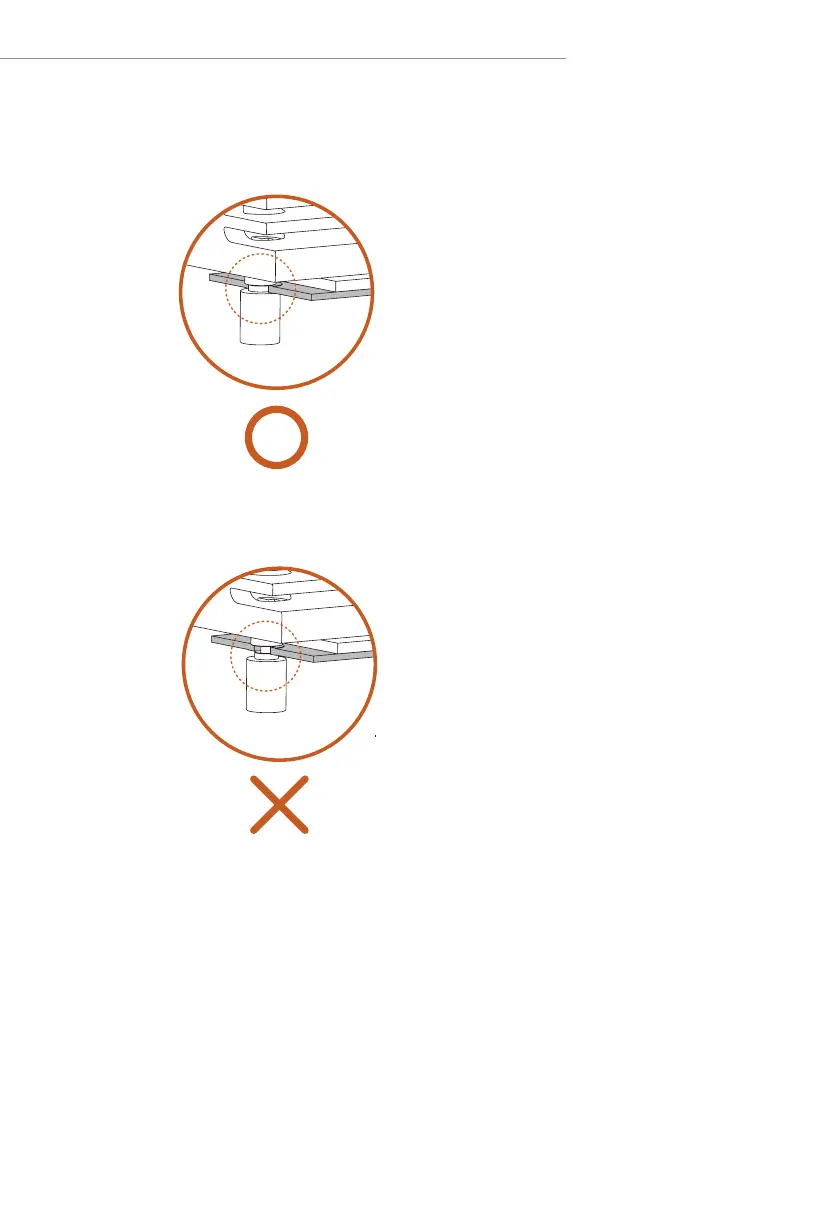

Correct Installation:
e SSD's PCB is in proper place, and
the M.2 heatsink can be screwed in.
Incorrect Installation:
e SSD's PCB sits between M.2 heatsink
and stando. Do not continue.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ASROCK PHANTOM GAMING A620I LIGHTNING WiFi and is the answer not in the manual?

ASROCK PHANTOM GAMING A620I LIGHTNING WiFi Specifications

General IconGeneral
Form FactorMini-ITX
ChipsetAMD A620
SocketAM5
Memory Slots2 x DIMM
Maximum Memory64GB
PCIe Slots1 x PCIe 4.0 x16
BluetoothBluetooth 5.2
Audio7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Memory SupportDDR5
Storage Interface4 x SATA3
USB Ports2 x USB 2.0
NetworkingWi-Fi 6E, 2.5G LAN
Video Outputs1 x HDMI, 1 x DisplayPort
