ASROCK PHANTOM GAMING B650I LIGHTNING WiFi User Manual

13
B650I Lightning WiFi

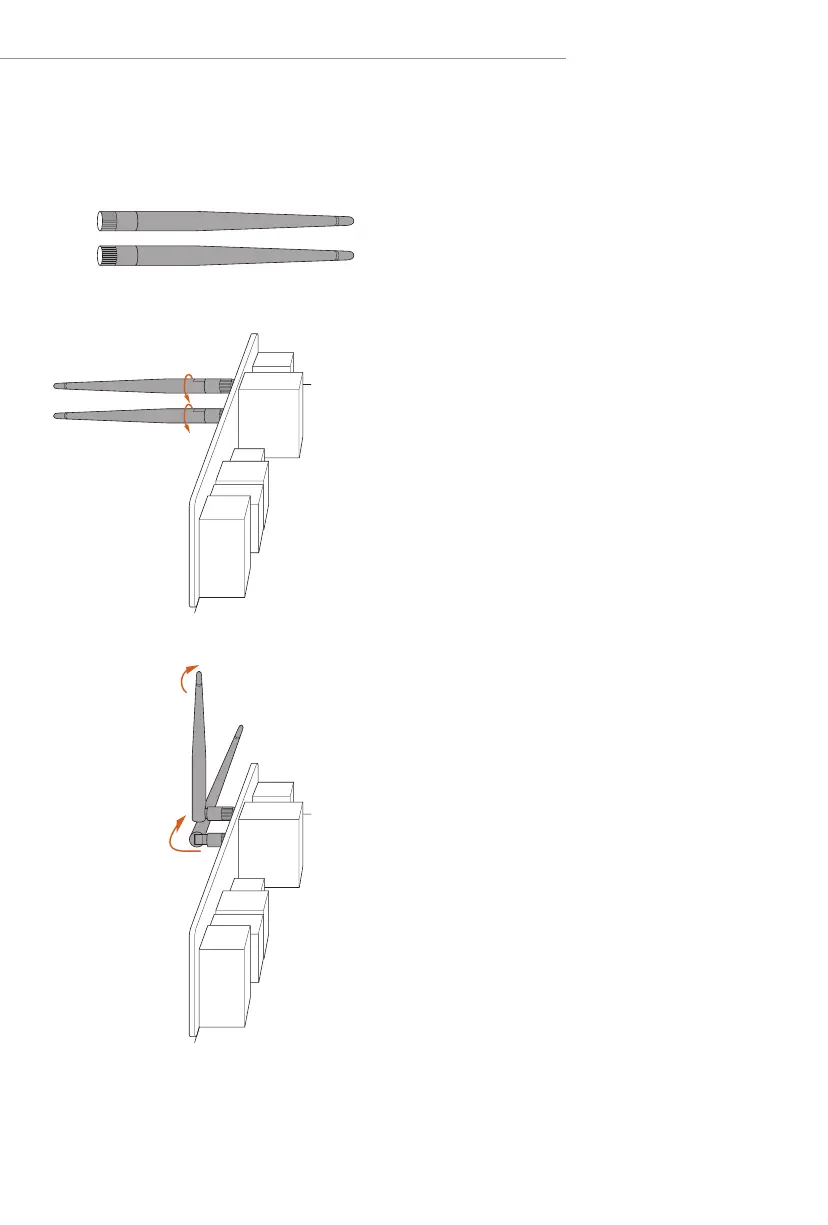

WiFi Antennas Installation Guide
Step 1
Prepare the WiFi 2.4/5/6 GHz Antennas that
come with the package.
Step 2
Connect the two WiFi 2.4/5/6 GHz Antennas
to the antenna connectors. Turn the antenna
clockwise until it is securely connected.
Step 3
Set the WiFi 2.4/5/6 GHz Antenna as shown in
the illustration.
*You may need to adjust the direction of
the antenna for a stronger signal.

ASROCK PHANTOM GAMING B650I LIGHTNING WiFi Specifications

General

Chipset	AMD B650
Form Factor	Mini-ITX
Memory Slots	2
Maximum Memory	64GB
Memory Type	DDR5
Memory Support	DDR5 6400+(OC)
PCIe Slots	1 x PCIe 4.0 x16
LAN	2.5 Gigabit LAN
CPU Socket	AM5
Bluetooth	Bluetooth 5.2
Audio Codec	Realtek ALC1220
Storage Interface	4 x SATA3 6.0 Gb/s
WiFi	WiFi 6E (802.11ax)
RGB Support	Yes
M.2 Slots	2
USB Ports	4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0
