B650I Lightning WiFi

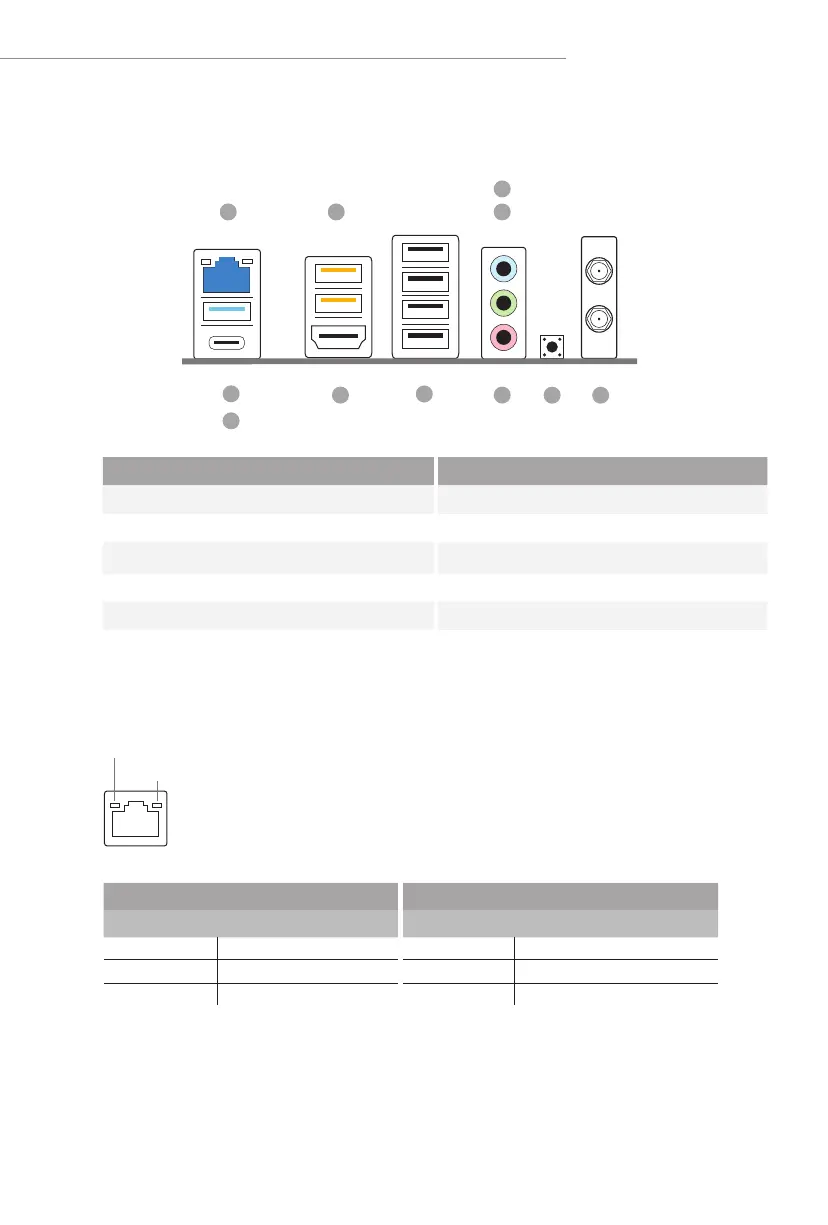

1.4 I/O Panel
No. Description No. Description
1 2.5G LAN RJ-45 Port* 7 Microphone (Pink)***
2 USB 3.2 Gen2 Type-A Ports (USB32_23)** 8 USB 2.0 Ports (USB_1234)
3 Line In (Light Blue)*** 9 HDMI Port
4 Front Speaker (Lime)*** 10 USB 3.2 Gen2 Type-A Port (USB32_1)
5 Antenna Ports 11 USB 3.2 Gen2 Type-C Port (USB32_TC1)
6 BIOS Flashback Button
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
56
79
42
3
10
11
8
1
** USB32_23 are Lightning Gaming Ports.
To Next Page
