ASROCK PHANTOM GAMING B650I LIGHTNING WiFi User Manual

26
6

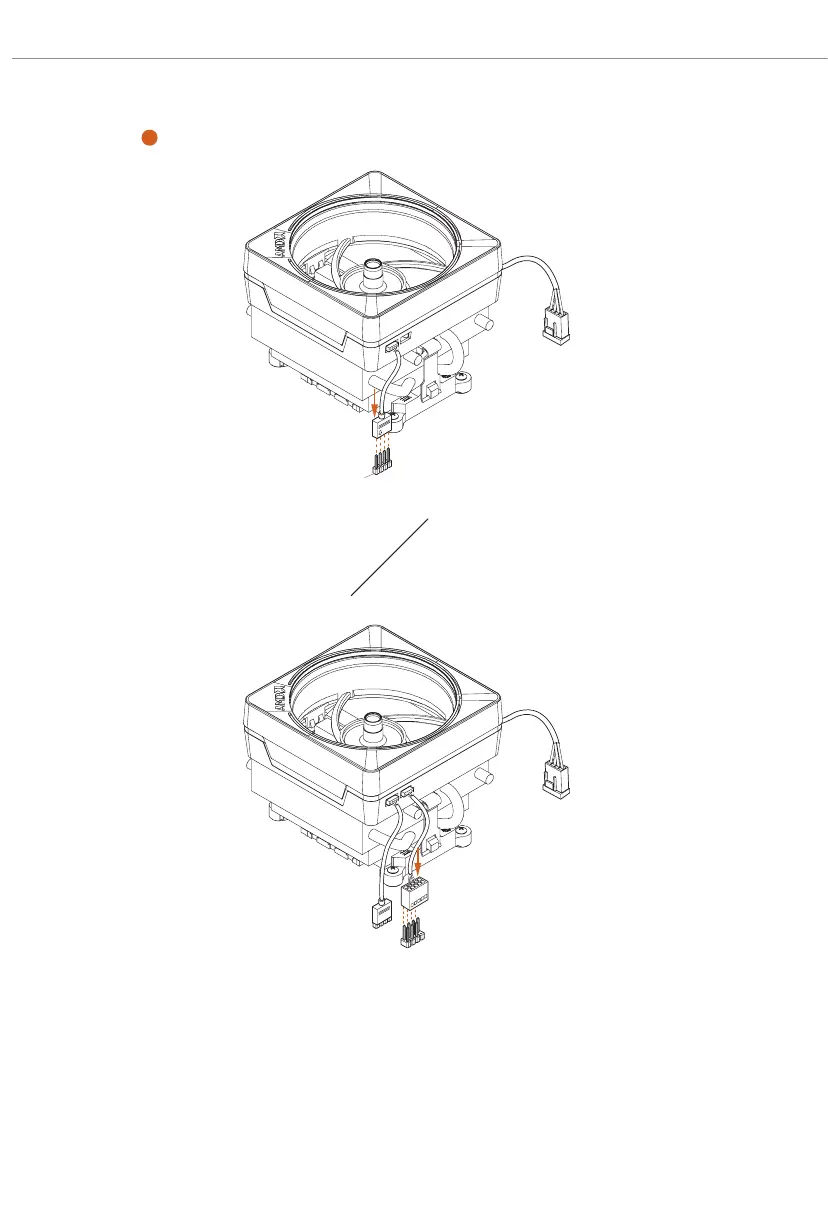

CPU_FAN1
RGB_LED1
CPU_FAN1
RGB_LED1
USB_1_2
Please note that only one cable should be used at a time in this step.
If you select RGB_LED1, please install ASRock utility "ASRock Polychrome SYNC".
If you select USB connector, please install AMD utility "SR3 Settings Soware".
*e illustrations shown here are for reference purposes only and may not exactly match
the model you purchase.
+12V
or

ASROCK PHANTOM GAMING B650I LIGHTNING WiFi Specifications

General

Chipset	AMD B650
Form Factor	Mini-ITX
Memory Slots	2
Maximum Memory	64GB
Memory Type	DDR5
Memory Support	DDR5 6400+(OC)
PCIe Slots	1 x PCIe 4.0 x16
LAN	2.5 Gigabit LAN
CPU Socket	AM5
Bluetooth	Bluetooth 5.2
Audio Codec	Realtek ALC1220
Storage Interface	4 x SATA3 6.0 Gb/s
WiFi	WiFi 6E (802.11ax)
RGB Support	Yes
M.2 Slots	2
USB Ports	4 x USB 3.2 Gen1 Type-A, 2 x USB 2.0
