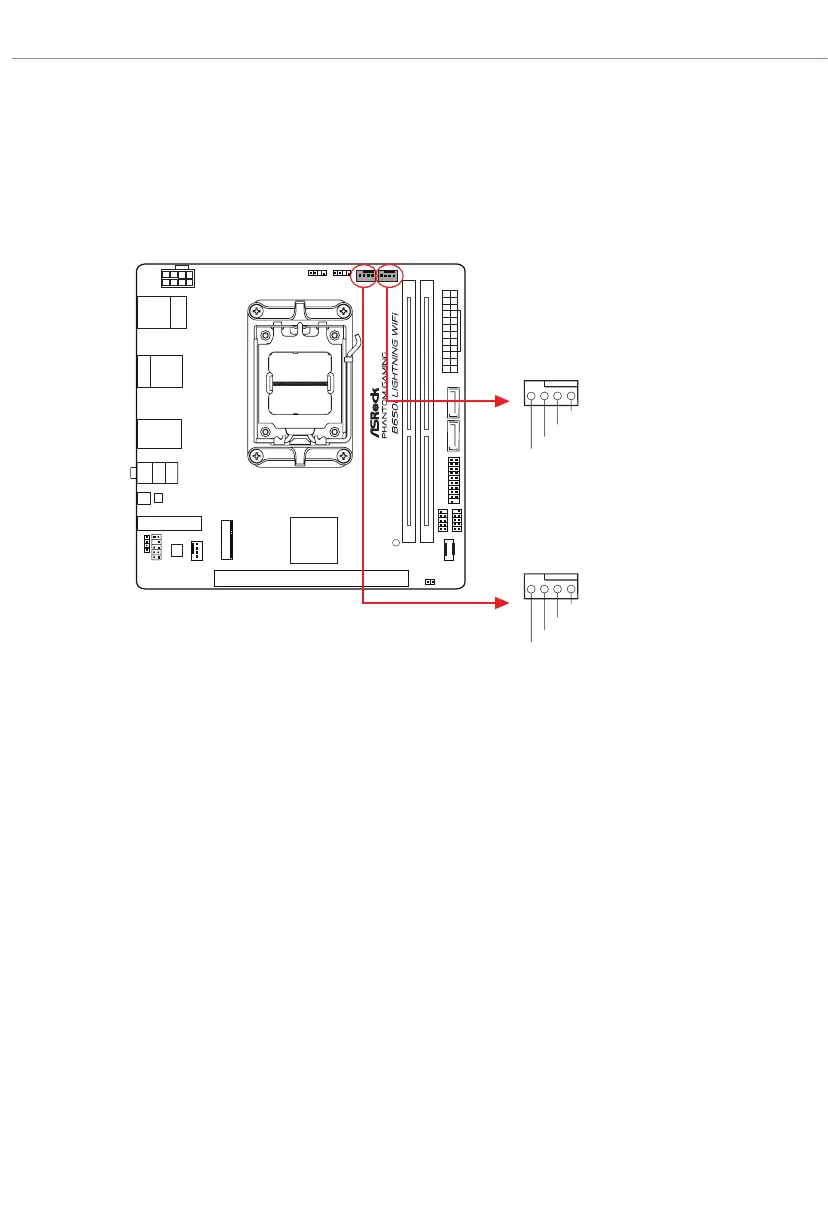

CPU/Water Pump Fan Connectors
(4-pin CPU_FAN1/WP) (see p.6, No. 4)
(4-pin CPU_FAN2/WP) (see p.6, No. 5)
is motherboard provides two 4-Pin water cooling CPU fan connectors. If you
plan to connect a 3-Pin CPU water cooler fan, please connect it to Pin 1-3.
CPU_FAN2/WP
CPU_FAN1/WP
CPU_F
FAN_VOLTAGE
GND
AN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
CPU_F
FAN_VOLTAGE
GND
AN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
