ASROCK Z370M-ITX/ac User Manual

22
23
English
Z370M-ITX/ac

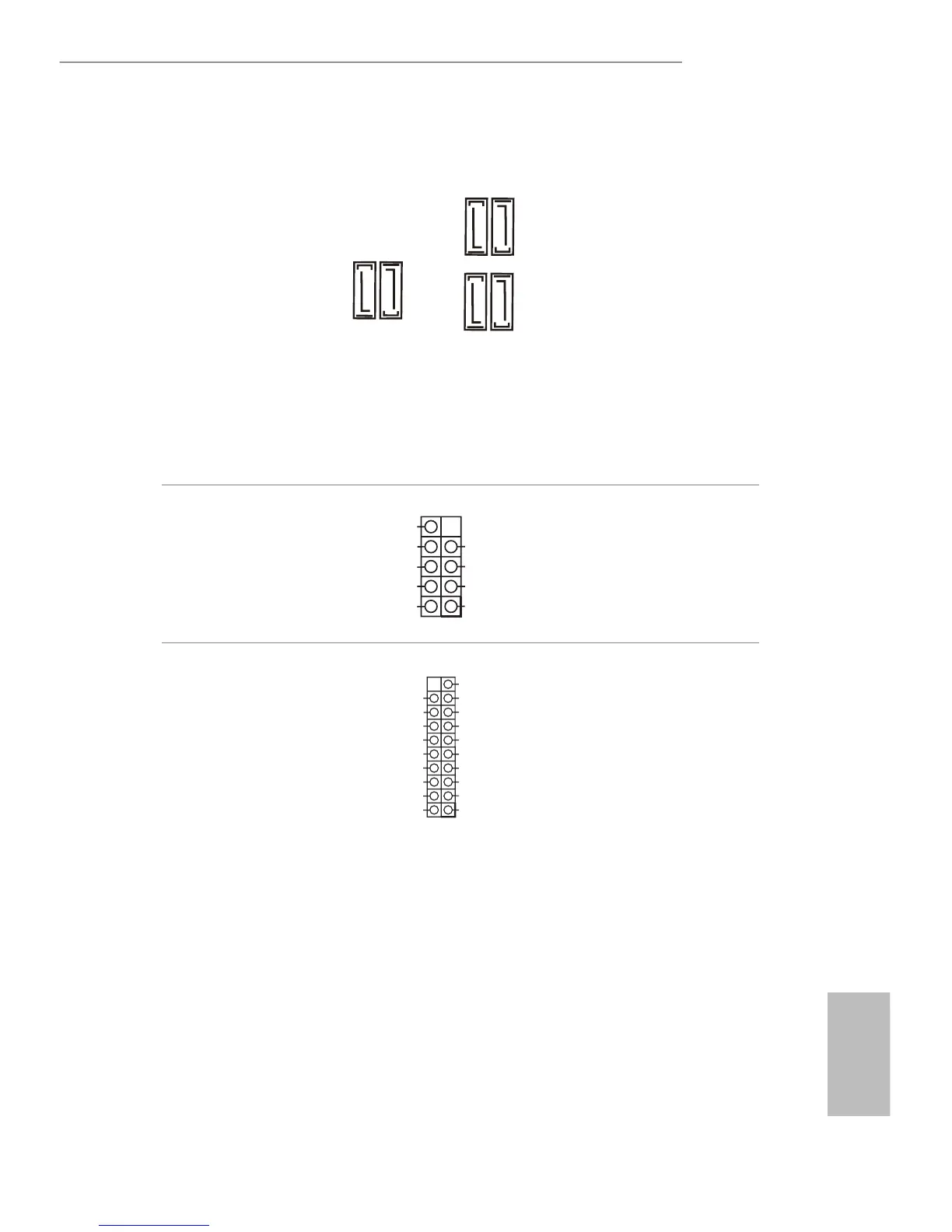

Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 9)
(SATA3_1:
see p.1, No. 8)
(SATA3_2:
see p.1, No. 11)
(SATA3_3:
see p.1, No. 10)
(SATA3_4:
see p.1, No. 16)
(SATA3_5:
see p.1, No. 17)
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
*If M2_1 is occupied by a SATA-
type M.2 device, SATA3_0 will
be disabled.
USB 2.0 Header
(9-pin USB_3_4)
(see p.1, No. 13)
DUMMY
GNDGND
P+4
P-4
P+3
P-3
USB_PWR
USB_PWR
1
ere is one USB2.0
header on this
motherboard. is USB
2.0 header can support
two ports.
USB 3.1 Gen1 Header
(19-pin USB3_6_7)
(see p.1, No. 7)
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
ere is one header on
this motherboard. is
USB 3.1 Gen1 header can
support two ports.
SA T A 3_3
SA T A 3_2
SA T A 3_1
SA T A3_0
SA T A 3_5
SA T A 3_4

ASROCK Z370M-ITX/ac Specifications

General

ECC	No
Memory channels	Dual-channel
Memory slots type	DIMM
Unbuffered memory	Yes
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	2133, 4000 MHz
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Audio chip	Realtek ALC892
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® Z370
PC health monitoring	CPU, FAN, Power supply, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Motherboard chipset family	Intel
Processor socket	LGA 1151 (Socket H4)
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	Not supported
Number of SATA connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
BIOS type	UEFI
ACPI version	6.0
BIOS memory size	16 Mbit
System Management BIOS (SMBIOS) version	2.7
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Intel I211-AT, Intel I219V
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.2
Ethernet interface type	Gigabit Ethernet
Cables included	SATA
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	- mm
Width	170 mm
