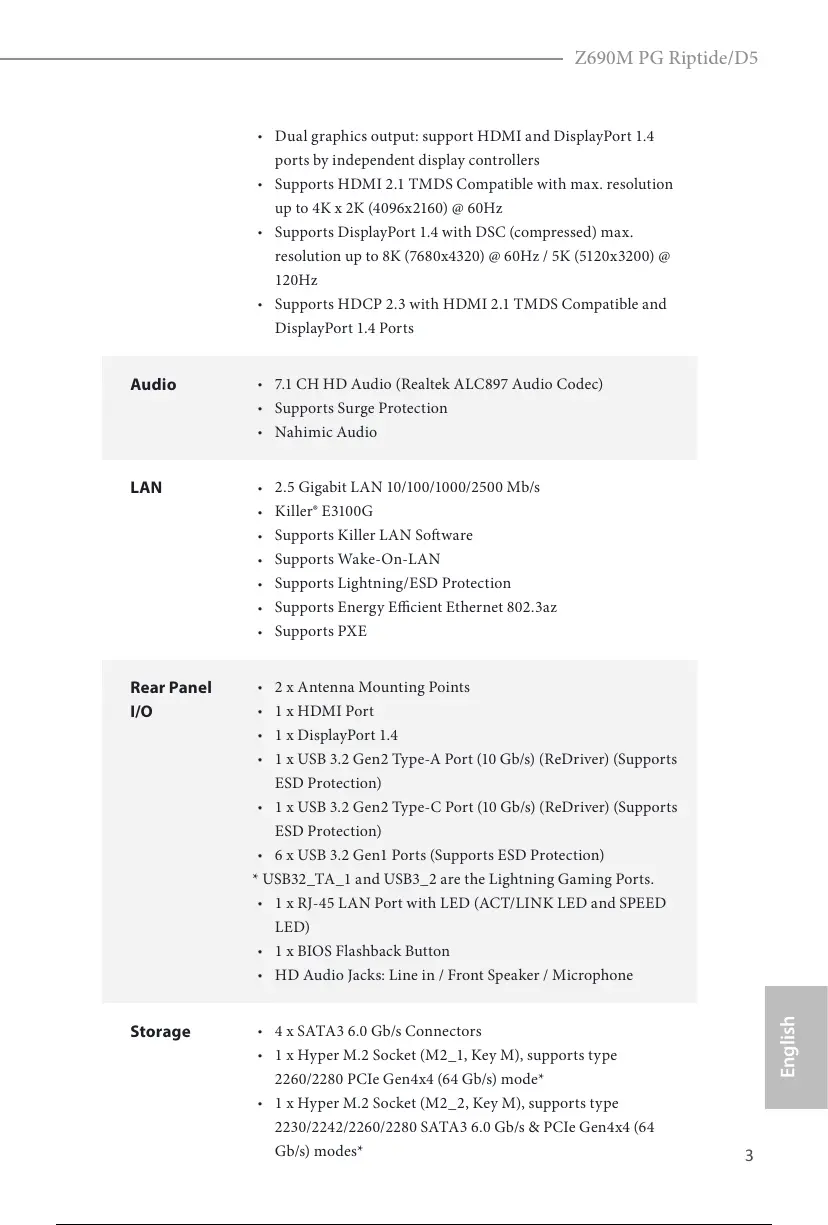

Z690M PG Riptide/D5
•
Dual graphics output: support HDMI and DisplayPort 1.4
ports by independent display controllers
•
Supports HDMI 2.1 TMDS Compatible with max. resolution
up to 4K x 2K (4096x2160) @ 60Hz
•
Supports DisplayPort 1.4 with DSC (compressed) max.
resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @
120Hz
•
Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and
DisplayPort 1.4 Ports
Audio
•
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
•
Supports Surge Protection
•
Nahimic Audio
LAN
•
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
•
Killer® E3100G
•
Supports Killer LAN Soware
•
Supports Wake-On-LAN
•
Supports Lightning/ESD Protection
•
Supports Energy Ecient Ethernet 802.3az
•
Supports PXE
Rear Panel
I/O
•
2 x Antenna Mounting Points
•
1 x HDMI Port
•
1 x DisplayPort 1.4
•
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports
ESD Protection)
•
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports
ESD Protection)
•
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
* USB32_TA_1 and USB3_2 are the Lightning Gaming Ports.
•
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED
LED)
•
1 x BIOS Flashback Button
•
HD Audio Jacks: Line in / Front Speaker / Microphone
Storage
•
4 x SATA3 6.0 Gb/s Connectors
•
1 x Hyper M.2 Socket (M2_1, Key M), supports type
2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
•
1 x Hyper M.2 Socket (M2_2, Key M), supports type
2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64
Gb/s) modes*
11 / 113

ASROCK Z690M PG Riptide/D5 Specifications

General

Processor socket	LGA 1700
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Supported storage drive interfaces	M.2, SATA III
Number of M.2 (M) slots	2
PCI Express x16 (Gen 5.x) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Parallel processing technology support	-
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
LAN controller	Killer E3100G
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC897
Certification	- FCC, CE - ErP/EuP ready
Component for	PC
Motherboard chipset	Intel Z690
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
Harmonized System (HS) code	84733020
Weight	1000 g

Weight and Dimensions

Width	244 mm
Height	60 mm
