ASROCK Z690M PG Riptide/D5 User Manual

4
English

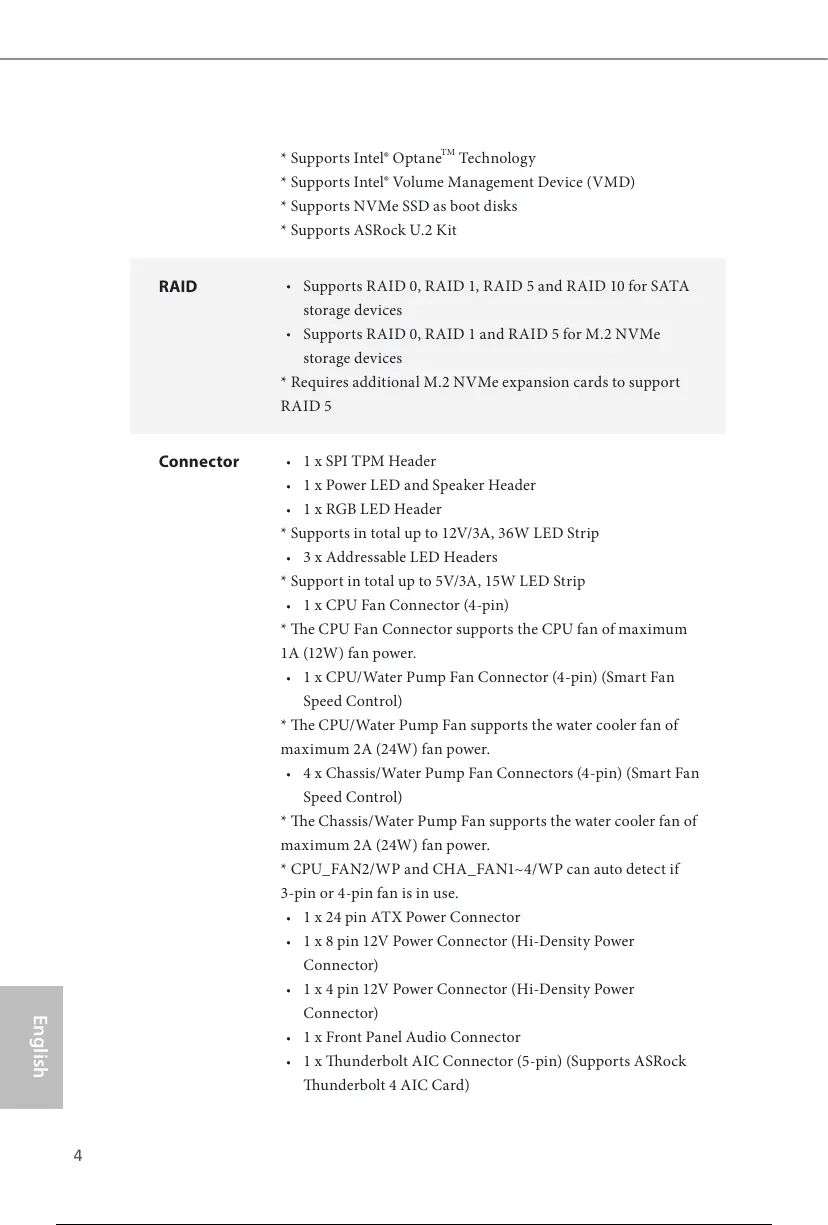

* Supports Intel® Optane
TM
Tech nolog y
* Supports Intel® Volume Management Device (VMD)
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
RAID
•
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA
storage devices
•
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe
storage devices
* Requires additional M.2 NVMe expansion cards to support
RAID 5
Connector
•
1 x SPI TPM Header
•
1 x Power LED and Speaker Header
•
1 x RGB LED Header
* Supports in total up to 12V/3A, 36W LED Strip
•
3 x Addressable LED Headers
* Support in total up to 5V/3A, 15W LED Strip
•
1 x CPU Fan Connector (4-pin)
* e CPU Fan Connector supports the CPU fan of maximum
1A (12W) fan power.
•
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan
Speed Control)
* e CPU/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
•
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan
Speed Control)
* e Chassis/Water Pump Fan supports the water cooler fan of
maximum 2A (24W) fan power.
* CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if
3-pin or 4-pin fan is in use.
•
1 x 24 pin ATX Power Connector
•
1 x 8 pin 12V Power Connector (Hi-Density Power
Connector)
•
1 x 4 pin 12V Power Connector (Hi-Density Power
Connector)
•
1 x Front Panel Audio Connector
•
1 x underbolt AIC Connector (5-pin) (Supports ASRock
underbolt 4 AIC Card)
12 / 113

ASROCK Z690M PG Riptide/D5 Specifications

General

Processor socket	LGA 1700
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Supported storage drive interfaces	M.2, SATA III
Number of M.2 (M) slots	2
PCI Express x16 (Gen 5.x) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Parallel processing technology support	-
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
LAN controller	Killer E3100G
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC897
Certification	- FCC, CE - ErP/EuP ready
Component for	PC
Motherboard chipset	Intel Z690
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
Harmonized System (HS) code	84733020
Weight	1000 g

Weight and Dimensions

Width	244 mm
Height	60 mm
