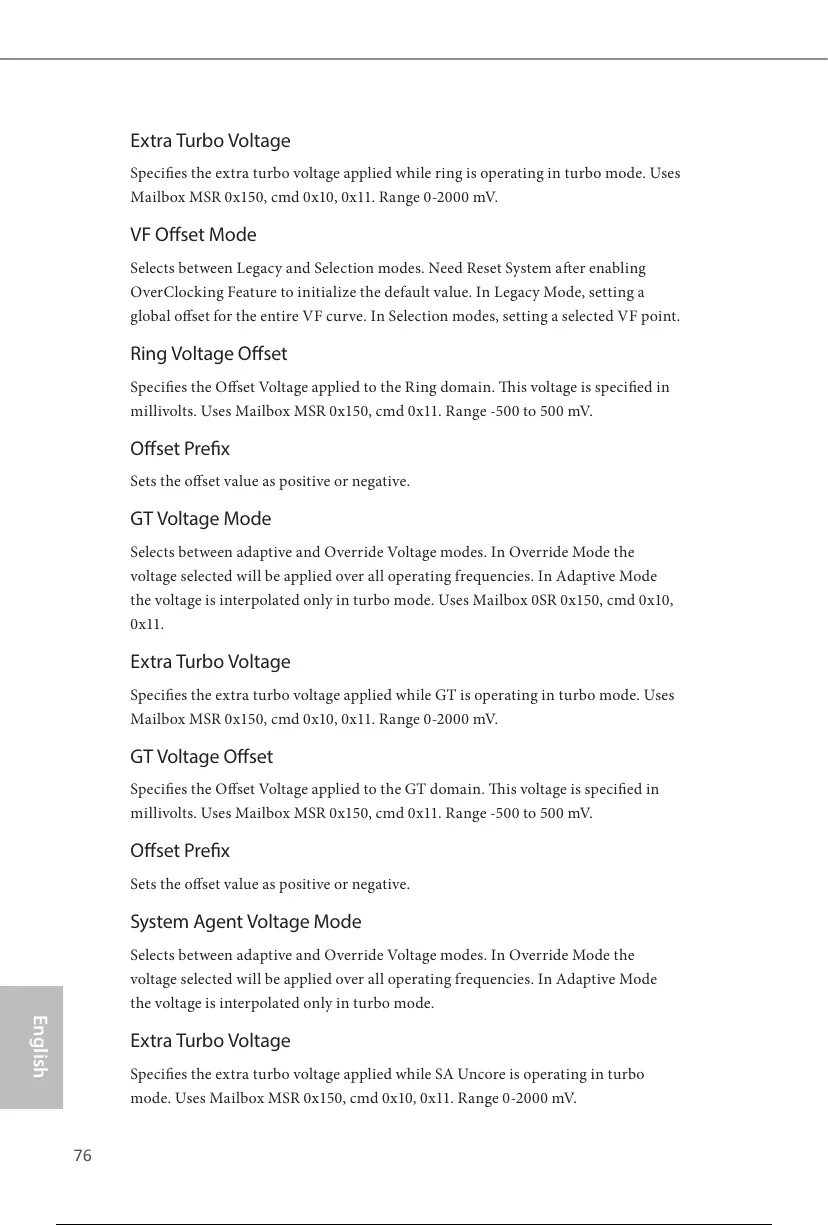

Extra Turbo Voltage
Species the extra turbo voltage applied while ring is operating in turbo mode. Uses
Mailbox MSR 0x150, cmd 0x10, 0x11. Range 0-2000 mV.
VF Oset Mode
Selects between Legacy and Selection modes. Need Reset System aer enabling
OverClocking Feature to initialize the default value. In Legacy Mode, setting a
global oset for the entire VF curve. In Selection modes, setting a selected VF point.
Ring Voltage Oset
Species the Oset Voltage applied to the Ring domain. is voltage is specied in
millivolts. Uses Mailbox MSR 0x150, cmd 0x11. Range -500 to 500 mV.
Oset Prex
Sets the oset value as positive or negative.
GT Voltage Mode
Selects between adaptive and Override Voltage modes. In Override Mode the
voltage selected will be applied over all operating frequencies. In Adaptive Mode
the voltage is interpolated only in turbo mode. Uses Mailbox 0SR 0x150, cmd 0x10,
0x11.
Extra Turbo Voltage
Species the extra turbo voltage applied while GT is operating in turbo mode. Uses
Mailbox MSR 0x150, cmd 0x10, 0x11. Range 0-2000 mV.
GT Voltage Oset
Species the Oset Voltage applied to the GT domain. is voltage is specied in
millivolts. Uses Mailbox MSR 0x150, cmd 0x11. Range -500 to 500 mV.
Oset Prex
Sets the oset value as positive or negative.
System Agent Voltage Mode
Selects between adaptive and Override Voltage modes. In Override Mode the
voltage selected will be applied over all operating frequencies. In Adaptive Mode
the voltage is interpolated only in turbo mode.
Extra Turbo Voltage
Species the extra turbo voltage applied while SA Uncore is operating in turbo
mode. Uses Mailbox MSR 0x150, cmd 0x10, 0x11. Range 0-2000 mV.
