ASROCK Z77TM-ITX User Manual

38

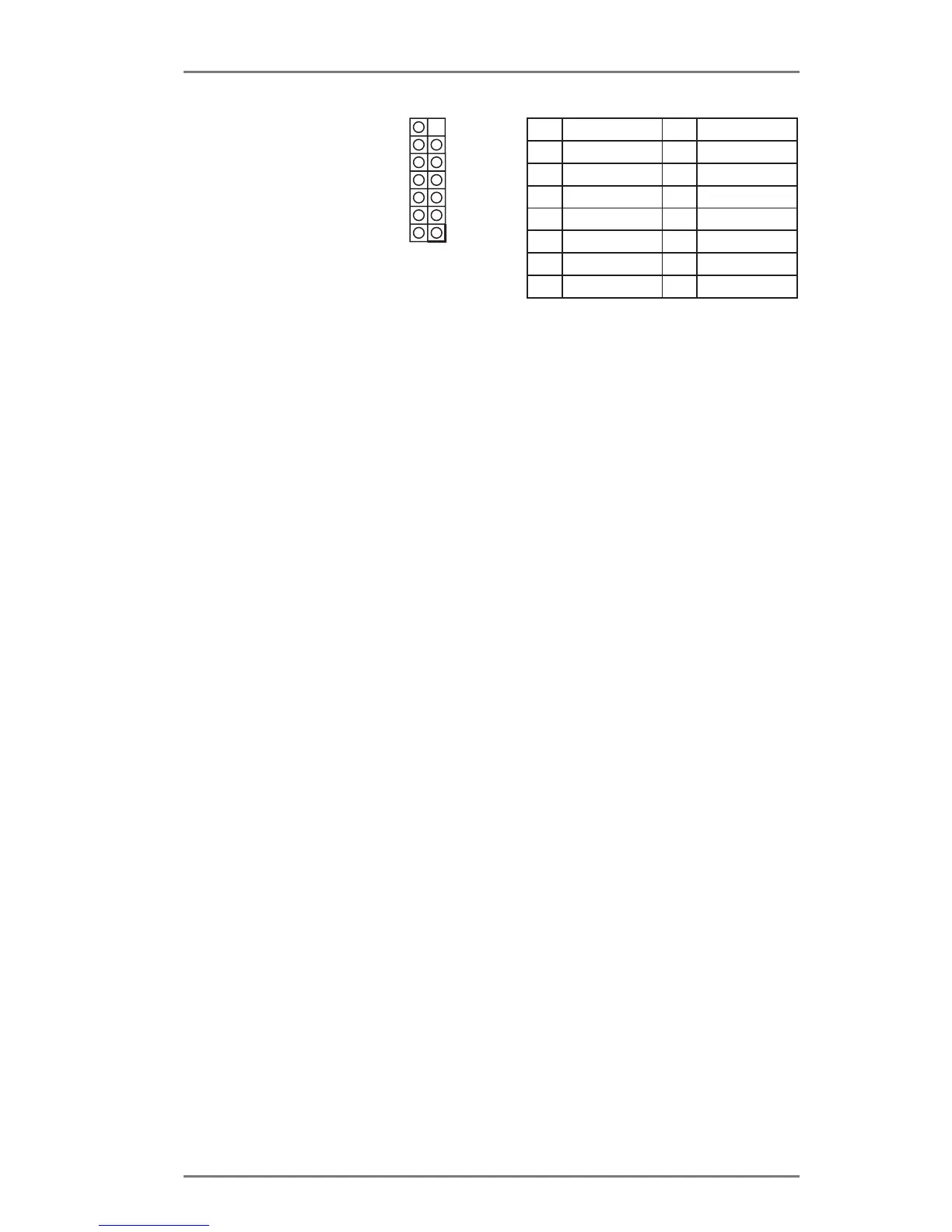

LPC Debug Header
(13-pin LPC1)
(see p.13/15/17/19, No. 30)
PIN Signal Name PIN Signal Name
14 +3V 13 No pin
12 +3V 11 +3V
10 GND 9 GND
8 LAD3 7 LAD2
6 LAD1 5 LAD0
4 LFRAME# 3 RESET#
2 GND 1 CLK
1
