Model 704 Wave to Open Switch
1. Place conduit housing on door jamb with
horizontal centerline between 34" - 48"
(86.4cm - 121.9cm) from oor. (Fig 1)
2. Using conduit housing as a template, mark
and center punch four (4) mounting holes and
conduit hole on door jamb.
3. Using 1/8" bit, drill four (4) mounting holes.
4. Using step drill, create a clearance hole for
conduit. Smooth conduit clearance hole with
deburring tool, if necessary.
Installation
Prepare Door Jamb
1. If required by local codes, attach wire conduit
(supplied by others) to back of housing and
feed wires through.
2. Align housing to mounting holes on door
jamb and secure with four (4) #8 Phillips
Round Head Metal Drilling screws. (Fig 3)
NOTE: Make sure housing is level.
Install Conduit Housing
1. Set LED and Time Delay Settings as desired on
Wave to Open switch. See “LED Setting” and
“Time Delay Setting”, page 2.
2. Use small at head screwdriver to connect
24VDC and activation wiring with terminal
block. (Fig 4) See “Wiring”, page 2 and
appropriate wiring diagram of door operator
instructions.
3. Attach Wave to Open switch to conduit
housing using two (2) M3 x 8.3mm Philips Flat
Head Machine screws. (Fig 5)
Install Switch
Terminal
Block
34" (86.4cm) Min
48" (121.9cm) Max
1-3/4"
44.5m

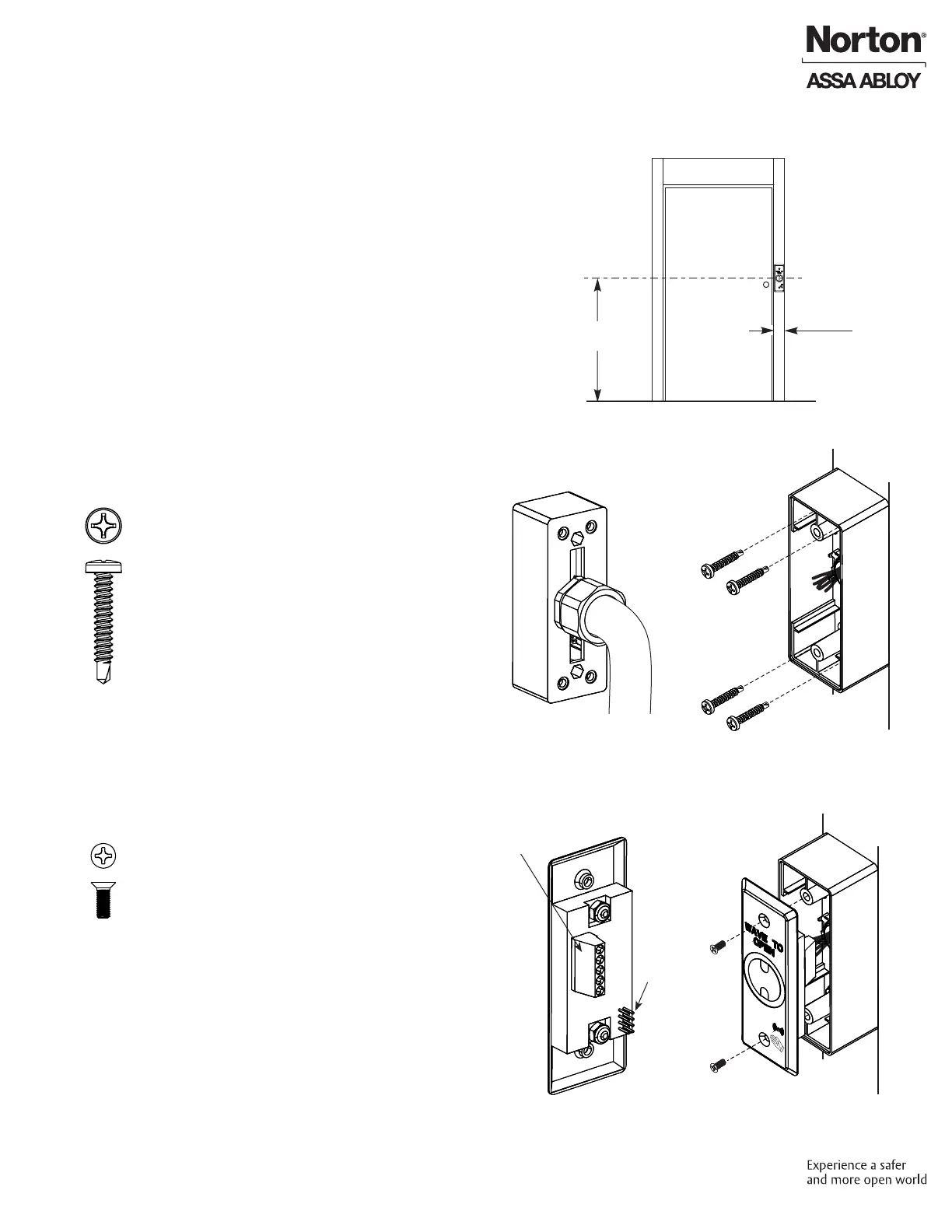

Figure 1
Figure 2
Figure 3
Figure 4 Figure 5
LED and
Timing
Delay
