• Self-aligning receiver (up to +/- 1/2" horizontally or vertically)
helps compensate for gate misalignment and sag
• Tamper proof cast housing
• Latch status monitor switch (SPDT)
• ½”-14 NPSM inside pipe thread
• Surface Mount
• Black finish
Product Components
Upon unpacking this product, an inventory should be made to
ensure that all the required components and hardware have been
included. Along with these instructions and the installation

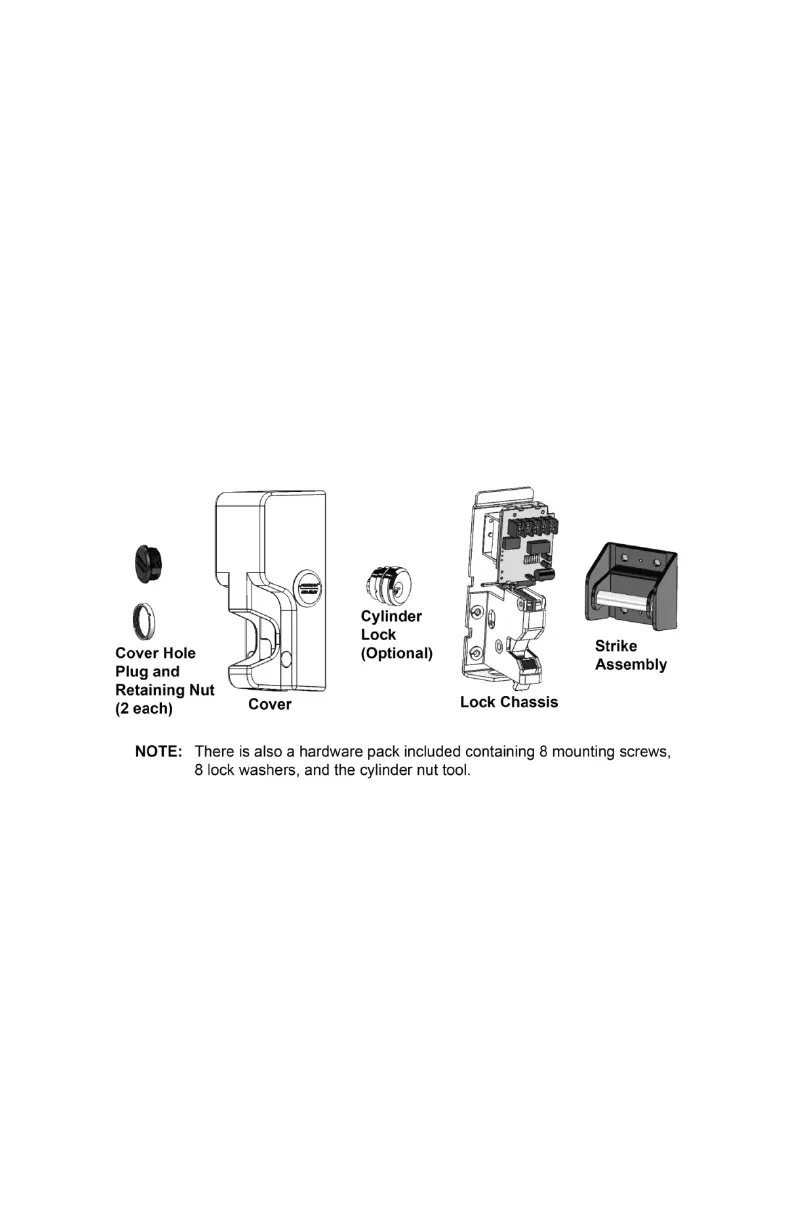

template, the lock assembly should include the following items:
Recommended Tools
Hammer Screwdriver, #2 Phillips
Center Punch Hex (Allen) wrench, 3/16” [5 mm]
Drill Bits: 5/16”, 3/8”, ½” Tap, ¼”-20 UNC [M6-1.0]
To Next Page
