9
500-22090, Rev A

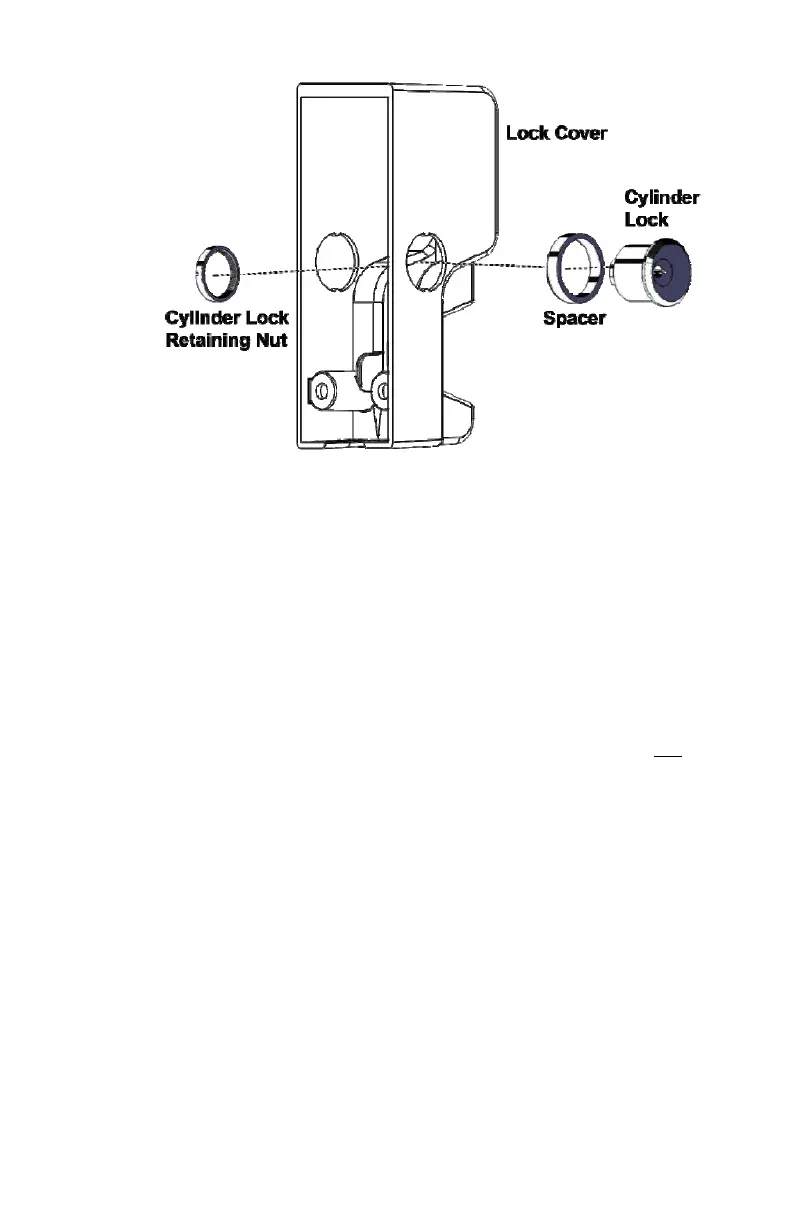

Figure 5. Cylinder Lock Installation
c. SLIP the spacer over the cylinder lock and INSERT the cylinder
lock into the applicable side hole on the lock cover.
d. SLIP the lock mounting nut over the cylinder lock inside the
cover and THREAD the nut onto the lock body by hand.
e. TIGHTEN to secure the nut in place using the provided cylinder
nut tool.
f. INSTALL a cover hole plug in the opposite side of the cover, and
SECURE its retaining nut using the provided retaining nut tool.
NOTE: The following steps are performed if the cylinder lock is not
used.
3. INSTALL the two cover hole plugs (provided) through both sides of
the cover (see Figure 6, Cover Hole Plug and Retaining Nut”).
4. SECURE the cover hole plugs in place using the retaining nuts and
provided cylinder nut tool (see Figure 6, “Cover Hole Plug and
Retaining Nut”).
