Slide plate to
disengage
D
2-1/4" Door
2" Door
1-3/4" Door
3
Figure 3b. Interchangeable Core Cylinders
Trim levers are specific for the cylinder core used.
Levers are not removable. To remove and install the
cylinder use the control key supplied with the cylinder.
LFIC, lever for 6-pin cores, 1210 and 5210.
SFIC, lever for 6- or 7-pin cores

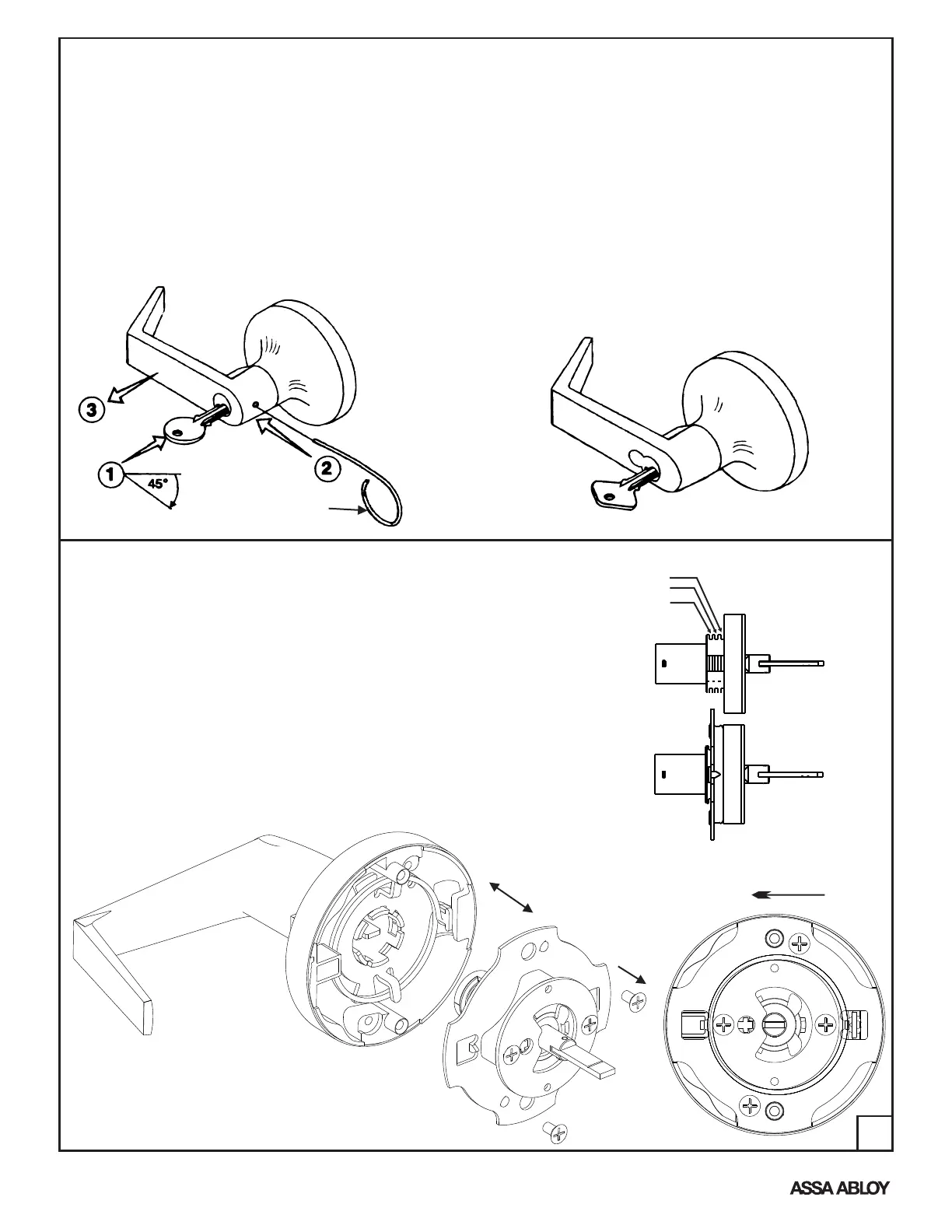

Figure 3a. Lever Handle Removable
1. Insert Key & rotate clockwise 45°
2. Depress retainer with tool supplied.
3. Slide Lever off trim.
(Reverse steps to re-assemble.)
Lever
Removable
Tool
Standard Cylinder
Each 441F and 446F Standard Trim is supplied with
one Yale® 1802 6-pin random keyed cylinder, and (2) keys.
This lever can fit any Yale 6-pin (1802, 5802) cylinder.
To re-key or exchange any of these cylinders, follow steps 3a or 3b shown below.
Adjust lock for door thickness
(If necessary)
(Lock is packaged preadjusted for 1-3/4" (44mm) thick doors.)
To adjust for a thicker door.
A. Remove (2) screws from outside rose plate.
B. Slide outside rose away from lock body.
C. Adjust rose plate to desired door thickness per illustration below.
D. Fasten outside rose to lock body with (2) screws.
A
B
An ASSA ABLOY Group brand
80-8470-0441-000 (11-18)
