4
VERTICAL
REFERENCE
C
L
(Device and Trim)
HORIZONTAL
REFERENCE

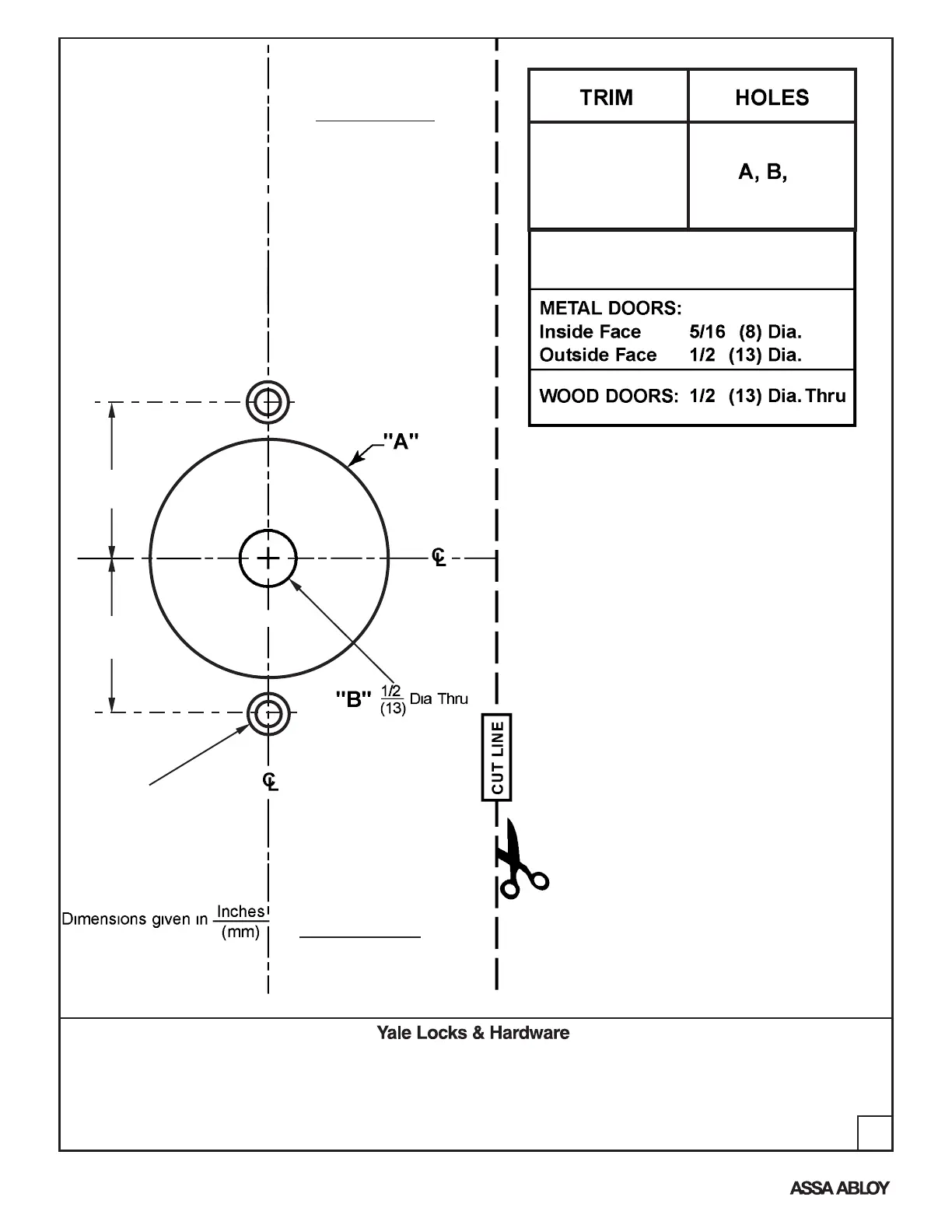

Outside Door
Face Trim
Template
2-1/8 (54) Dia
x 7/8 (22) Deep
1-3/8
(35)
1-3/8
(35)
“C”
(2) 3/8 (9.5) Dia
x 1/2 (13) Deep
7/32 (5.5) Dia Thru
CAUTION: Office copiers and facsimile mach-
ines may change the size of a drawing and make
the template inaccurate to use as a door marker.
If this is not the original template packed with the
trim, use only the holes on the door (do not use
template as a door marker).
441F, 446F,
448F, 449F
For Holes Marked “X”
See Below
C
RHR TRIM
LHR TRIM
"
"
"
Yale® registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Other products' brand names may be trademarks or registered trademarks of their
respective owners and are mentioned for reference purposes only. These materials are protected under U.S. copyright laws. All contents current at time of publication.
Yale Security Inc. reserves the right to change availability of any item in this catalog, its design, construction, and/or its materials.
Copyright © 2008, 2012 Yale Security Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.
is a
Product Support Tel 800. • www.yalelocks.com438.1951
Yale Locks & Hardware is a division of Yale Security Inc., an ASSA ABLOY Group company.
An ASSA ABLOY Group brand
80-8470-0441-000 (11-18)
