Assmann Digitus DN-170093 - Installing the UPS

6

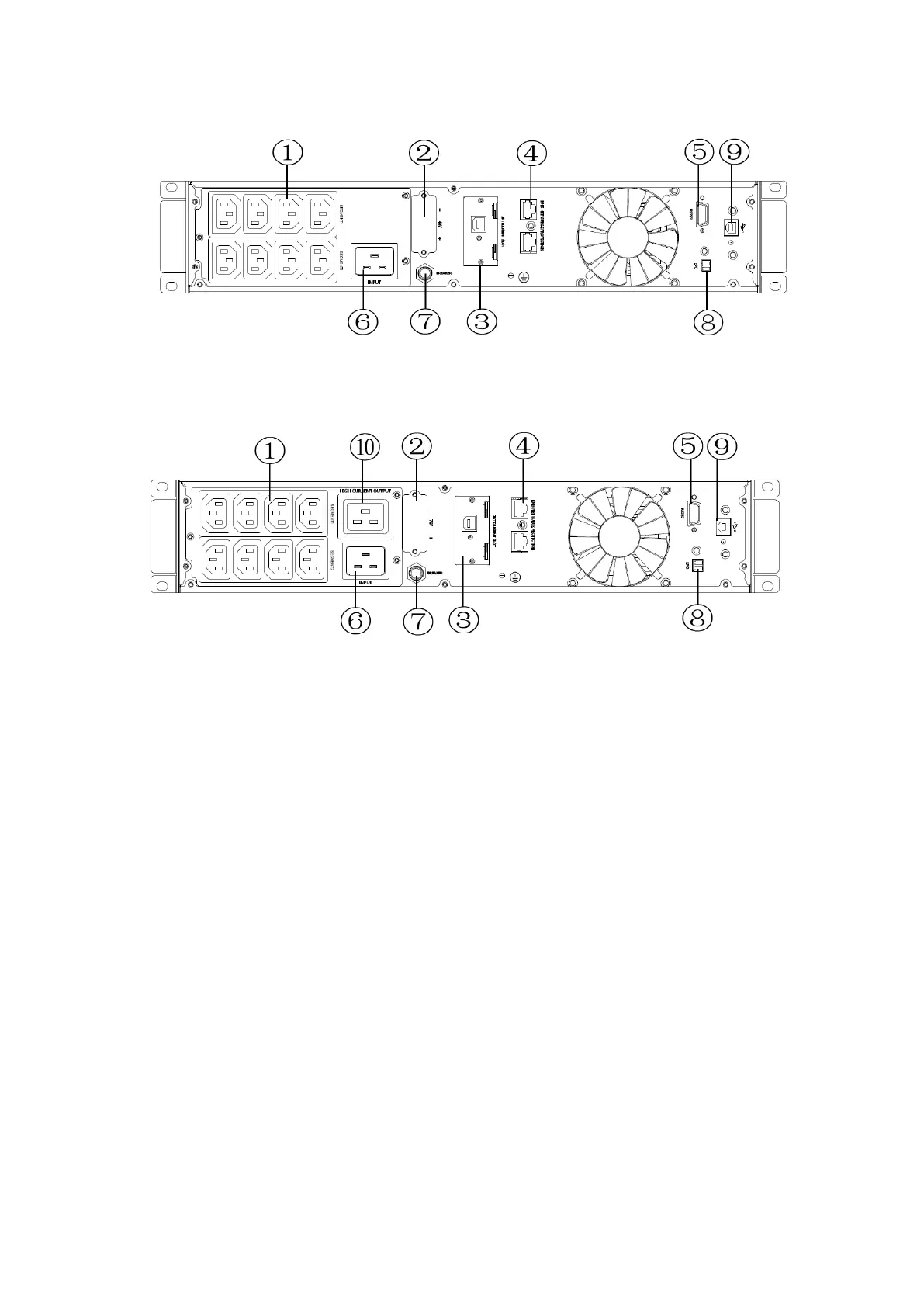

2 kVA:
3 kVA:
(1) Output receptacles (10 A)
(2) Battery terminal
(3) SNMP intelligent slot
(4) RJ45 data line Surge Protection
(5) RS-232 communication port
(6) AC input receptacle
(7) Input circuit breaker
(8) EPO
(9) USB
(10) Output receptacle (16 A)
2.3 Installing the UPS
• Rackmount installation
The UPS is supplied with 19-inch mounting brackets for installation in the server
rack. Mounting rails must be ordered separately (part number DN-170109).
The rails are adaptable for installation in 19" server racks with approx. 70~76 cm (27
to 30 inch) depth.
