16
All UPS and EBP cabinets
Number of battery strings
UPS only (internal batteries)
1 (default)
UPS + 1 EBP
3
UPS + 2 EBPs
5
UPS + 3 EBPs
7
UPS + 4 EBPs
9
Note: The UPS contains one battery string; each EBP contains two battery strings.

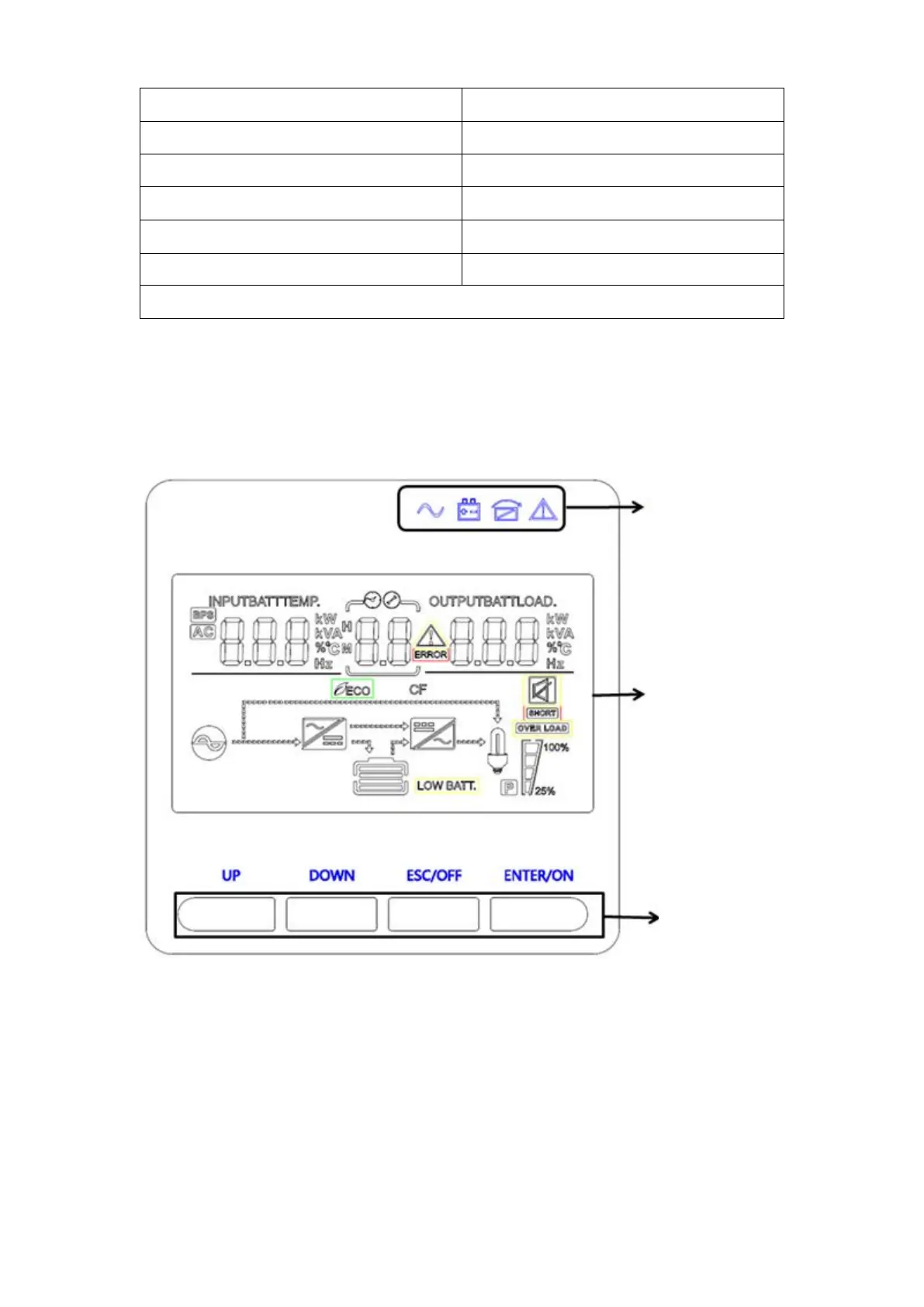

2.6 Operation and display panel
The operation and display panel, shown in below chart, is on the front panel of the
inverter. It includes three indicators, four function keys and a LCD display, indicating
the operating status and input/output power information.
① LED (from right to left: “alarm”, “bypass”, “battery”, “inverter”)
② On-Line UPS LCD display
③ Function keys
①
②
③
