Associated Electrics RB10 - Turnbuckle Assembly Procedures

15

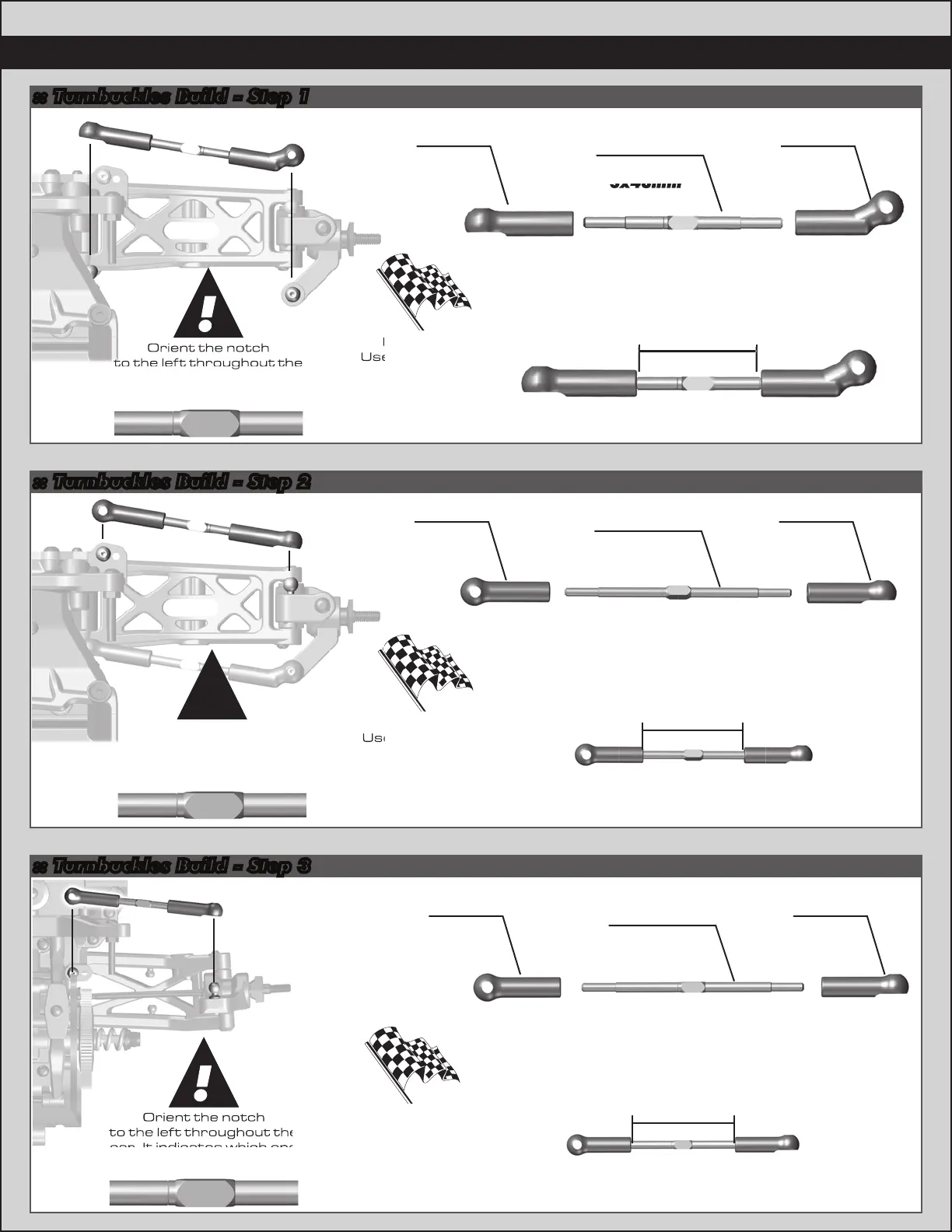

:: Turnbuckles Build - Step 3
:: Turnbuckles Build - Step 2
:: Turnbuckles Build - Step 1
91469
Ball Cup
91469
Ball Cup
91723
Turnbuckles,
3x48mm
Build x2 (right and left side)
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
28.00mm
Steering Turnbuckle
Build x2 (right and left side)
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Front Camber Turnbuckle
23.00mm
91469
Ball Cup
91469
Ball Cup
91723
Turnbuckles,
3x48mm
Orient the notch
to the left throughout the
!
Racers Tip:
Use black grease
3x48mm
Use black grease
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
Build x2 (right and left side)
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Rear Camber Turnbuckle
23.50mm
91469
Ball Cup
91469
Ball Cup
91723
Turnbuckles,
3x48mm
Orient the notch
to the left throughout the
car. It indicates which end
has the left hand threads!
!
Orient the notch
to the left throughout the
car. It indicates which end
!
