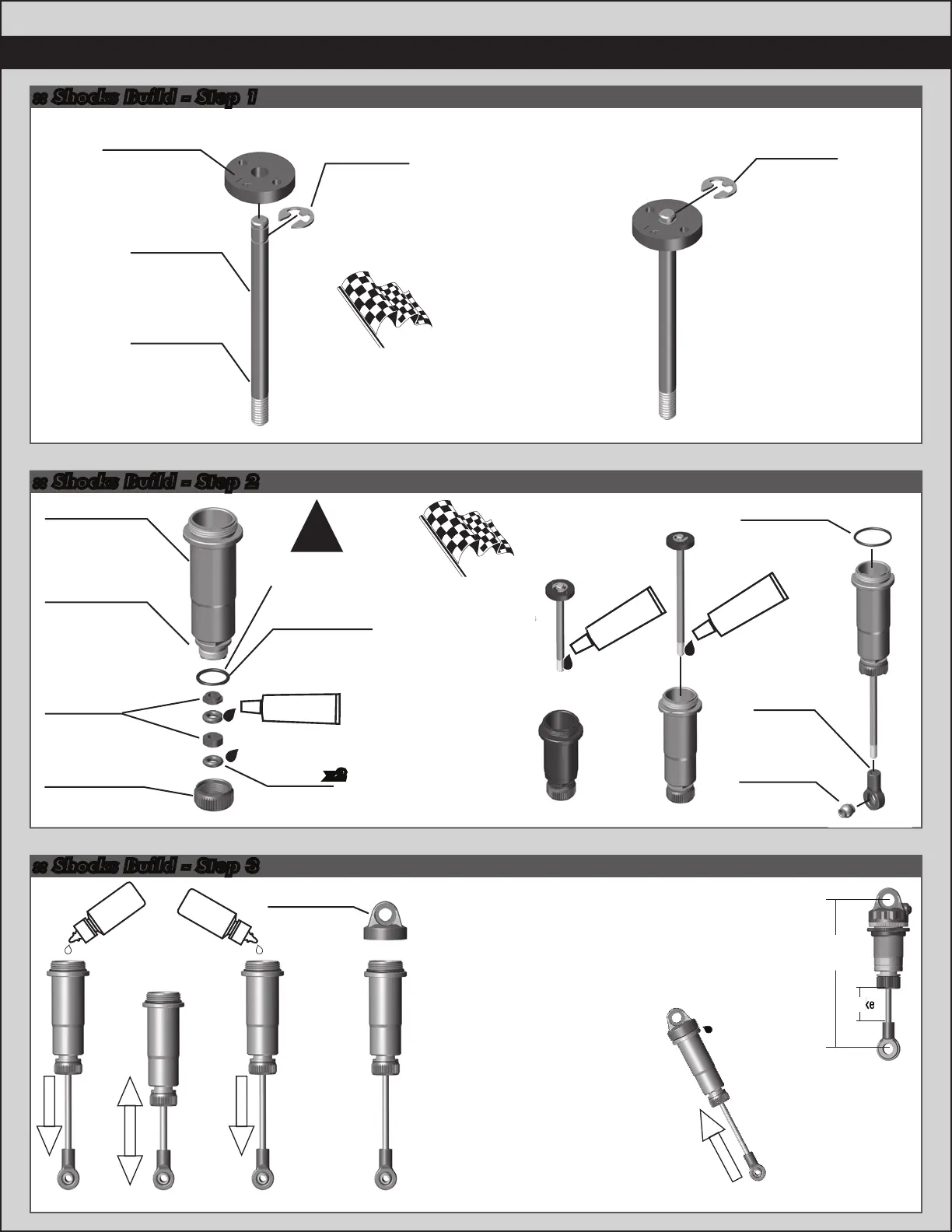

:: Shocks Build - Step 3
:: Shocks Build - Step 2
:: Shocks Build - Step 1
91444
12mm
Shock Piston
2x1.6mm
91489
3 x 27.5
Shock Shaft
(rear)
91488
3 x 21
Shock Shaft
(front)
6299
1/8 E-Clip
6299
1/8 E-Clip
Racers Tip:
Use a marker over the
numbers on the pistons to
make them easily visible!
Front/Rear
Shock: 30wt
Steps 9-11
Stroke:
Front - 22mm
Rear - 29mm
Free Length:
Front - 77mm
Rear - 88mm
Free
Length
Stroke
Steps 1-3 Steps 3-4 Steps 5-6 Step 7
Shock Bleeding Steps:
1. Pull shock shaft down.
2. Fill shock body 3/4 full with silicone
fluid.
3. Slowly move the shock shaft up and
down to remove air from under piston.
4. Wait for bubbles to come to surface.
5. Fill shock body to top with silicone fluid.
6. Place a drop of oil in the cap and on
cap threads.
7. Install cap and tighten completely.
8. Slowly compress shaft all the way to
the top. If there is pressure at the top
of the stroke, there is too much oil or
air. You must bleed it out.
9. Slowly pull shaft out.
10. Unscrew the cap 3/4 turn and tilt the
shock at a slight angle.
11. Slowly compress the shaft to push
out excess oil and air. You should see
bubbles coming out from under the
cap.
12. With the shaft compressed, tighten
the cap and re-check for pressure at
the top of the stroke. If there is still
pressure, repeat steps 9 thru11.
Shock fluid
#5422
Shock fluid
#5422
91454
Shock Cap
(Molded)
#1105
green slime
#1105
green slime
#1105
green slime
Racers Tip:
Coating the o-rings
with green slime
(#1105) helps seal
& reduce o-ring
swell! Green slime
not included in kit!
91469
Shock
eyelet
91469
Shock
Pivot Ball
71191
Shock Body
12 x 23mm
(front)
71051
Shock Body
12 x 27.5mm
(rear)
91444
Shock
Internals
5407
O-Ring
91454
Shock
Bottom Cap
31327
Shock
Bottom Cap
O-Ring
91491
Shock Cap
O-Ring
x2
Lightly rub shock oil
on the o-ring before
installation!
!
Front Rear
To Next Page
