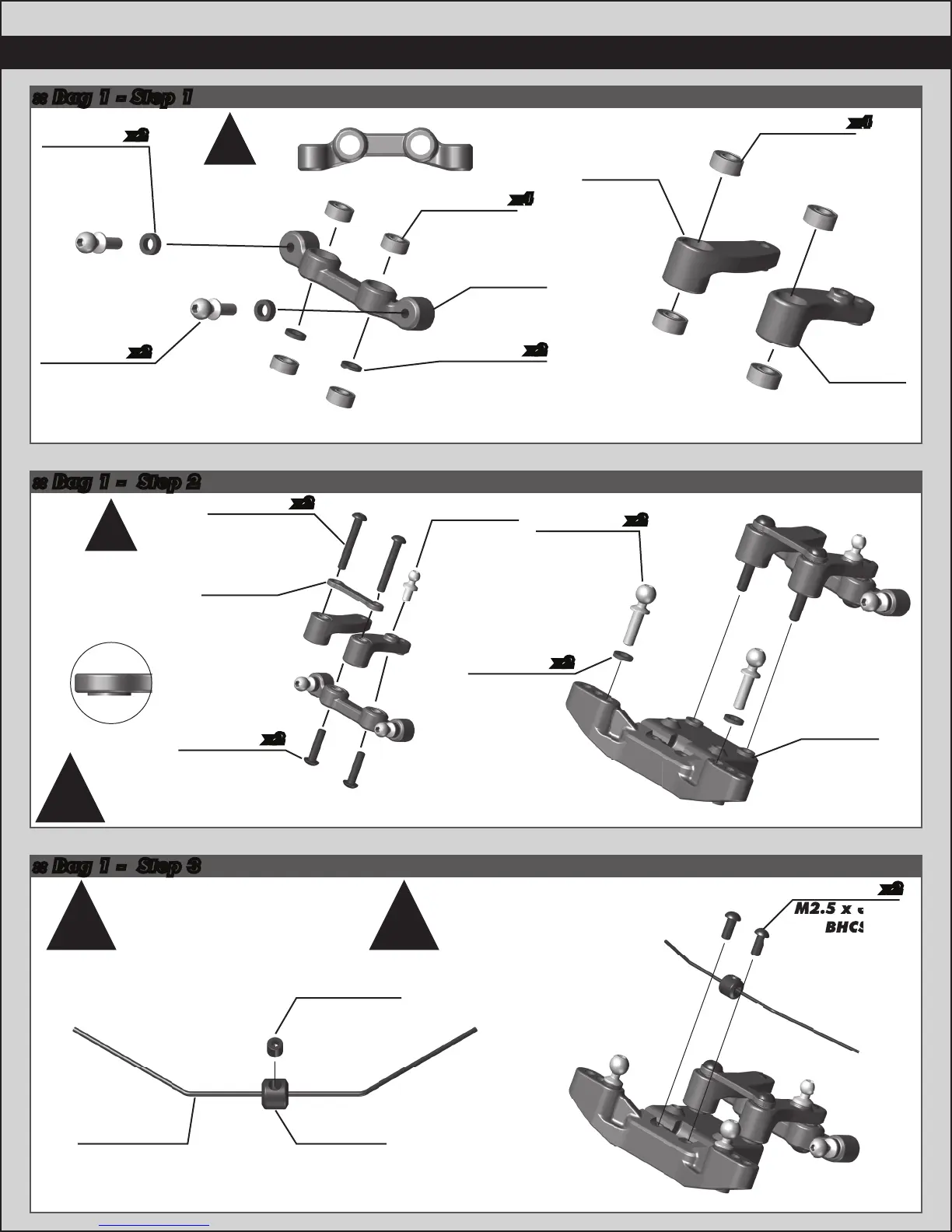

Associated Electrics RC10B6.1 - Assembly Instructions - Bag 1; Step 1: Steering Rack Assembly; Step 2: Steering Bellcrank & Ballstuds; Step 3: Anti-Roll Bar Installation

:: Bag 1 - Step 2
:: Bag 1 - Step 3
5
:: Bag 1 - Step 1
12/17
91667
Steering
Bellcrank
Brace
x2
x2
91678
M3 x 20mm
BHCS
Shouldered
31520
M2.5 x 6mm
BHCS
Do not overtighten steering bolts. Make sure
there is free movement in the steering rack.
91475
3 x 7 x 3
Ball Bearing
91475
3 x 7 x 3
Ball Bearing
91667
Steering
Rack
91667
Steering
Bellcrank
(Right)
91667
Steering
Bellcrank
(Left)
x4
x4
x2
x2
x2
91048
Heavy-duty
Ballstud,
8mm
31382
FT Ballstud
Washer,
Aluminum
(1mm)
31382
FT Ballstud
Washer,
Aluminum
(1mm)
!
x2
89202
M3 x 12mm
BHCS
31283
5mm Ball
Stud, Long
Note orientation
of steering rack.
!
The steering
bellcrank brace
has offsets on one
side. They should be
installed towards
the bearings.
!
x2
x2
91049
Heavy-duty
Ballstud,
10mm
31382
FT Ballstud
Washer,
Aluminum
(1mm)
91766
Front
Ball Stud
Mount
M2.5 x 6mm
BHCS
31500
M3 x 2.5mm
Set Screw
91821
Anti-Roll
Bar Collar
91822
Anti-Roll Bar,
Blue(1.0mm)
Front
TOP
Do not overtighten
#31520 - M2.5 x 6mm bhcs.
The bar should rotate freely.
Do not overtighten
#31500 - M3 x 2.5mm
set screw.
You could bend the bar!
!!
