Associated Electrics RC10B6.1 - Assembly Instructions - Bag 2; Step 1: Chassis & Bulkhead Mounting; Step 2: Side Rails & Chassis Weight; Step 3: Servo Mount & Steering Link

6

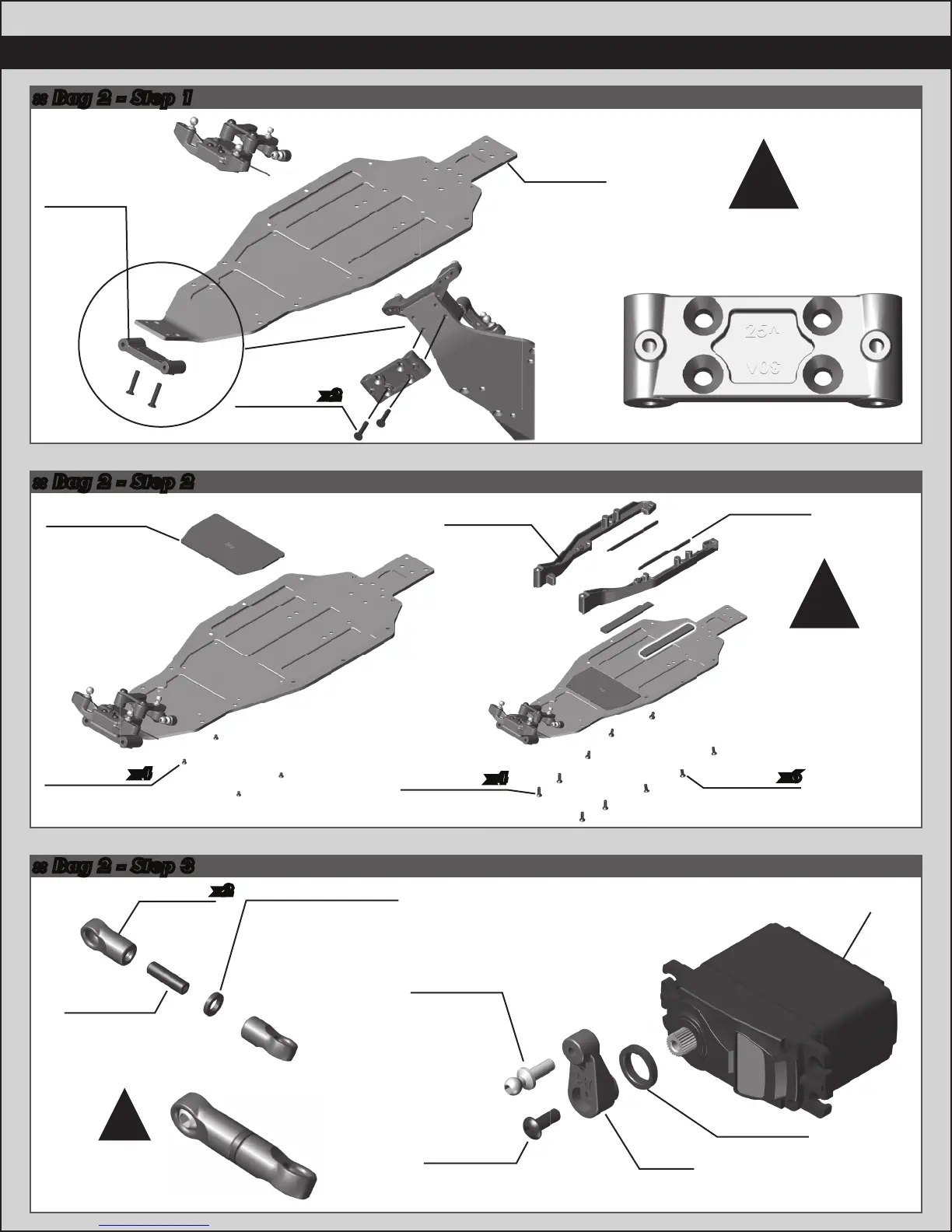

:: Bag 2 - Step 1
:: Bag 2 - Step 3
:: Bag 2 - Step 2
4671
M3x10mm
Set Screw
91820
Steering
Link, B6.1
31382
FT Ballstud
Washer, aluminum
(1mm)
Tighten the
steering link ball
cups all the way
until snug.
!
x2
25204
M3 x 16mm
FHCS
91656
Bulkhead
91765
Chassis,
B6.1
There are two bulkhead settings
(25 °, 30 °). 25 ° is the standard used.
The arrow should point
forward for the desired setting.
!
25
30
>
>
91728
Servo Horn
Ring
31284
8mm Ball
Stud, Long
91728
Servo
Horn
Servo not
included!
x4
x4
x6
25202
M3 x 10mm
FHCS
91749
M2 x 3mm
FHCS
91652
Side Rails
(L & R)
91748
FT Steel
Chassis
Weight, 36g
25201
M3 x 8mm
FHCS
x2
31532
M3 x 8mm
BHCS
91734
Battery
Foam, B6
#91734 - Battery Foam
There are two thickness
options to accomodate
any battery size.
!
