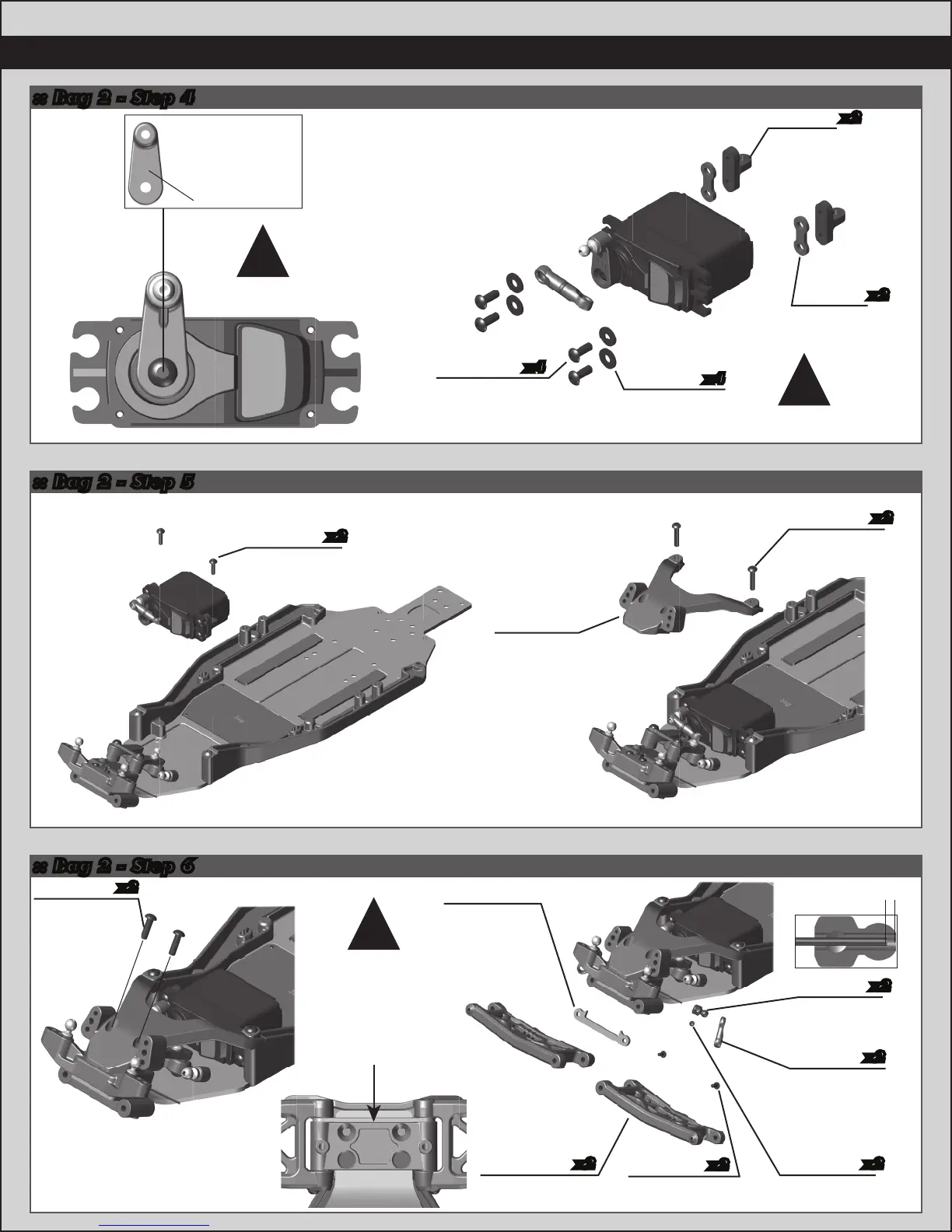

:: Bag 2 - Step 6
:: Bag 2 - Step 5
A - Airtronics
F - Futaba
H - Hitec
J - JR
Printed here
:: Bag 2 - Step 4
Align the servo
horn 90 degrees
#91728 - Servo Spacers
are not required for all servos.
!
!
89218
M3 x 8mm
Washer
91719
Servo
Mount
91728
Servo
Spacers
31532
M3 x 8mm
BHCS
x4
x2
x2
x4
91766
Top Plate,
B6
25211
M3 x 10mm
BHCS
25187
M3 x 14mm
BHCS
x2
x2
25211
M3 x 10mm
BHCS
x2
The front hinge pin
brace has a sharp
edged side, and a
rounded edge side.
Mount the sharp
edge side towards
the bulkhead.
2mm from
end of pivot
!
31510
M2 x 4mm
BHCS
25225
M3 x 3mm
Set Screw
91820
Anti-Roll
Bar Link
91821
Anti-Roll
Bar Pivot
91673
Front Arms,
Gull-Wing, B6
91656
Front Hinge
Pin Brace,
B6
x2
x2
x2
x2
x2
