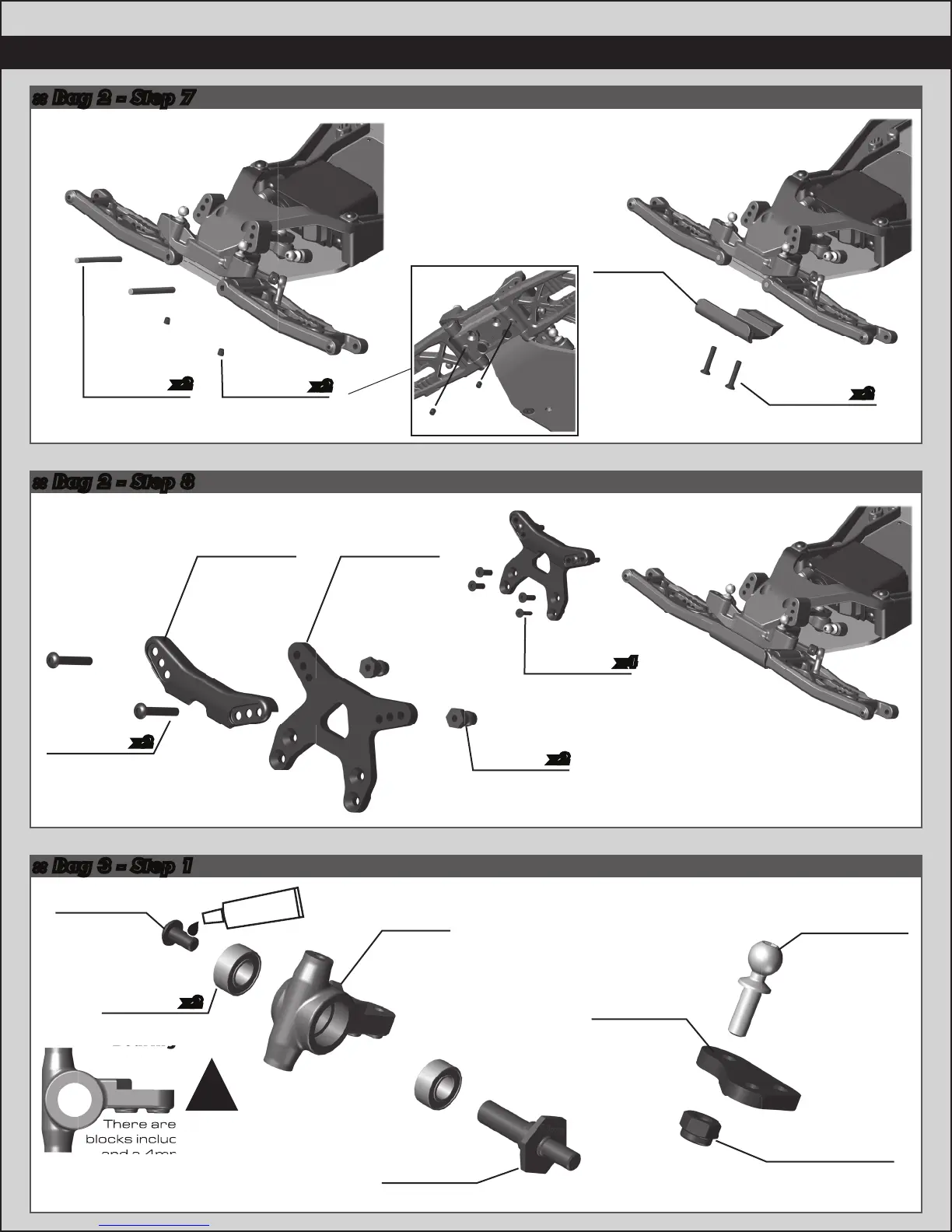

Associated Electrics RC10B6.1 - Assembly Instructions - Bag 3; Step 1: Front Axle & Steering Blocks

:: Bag 3 - Step 1
:: Bag 2 - Step 8
8
:: Bag 2 - Step 7
Build 2 (1 left, 1 right)
x2
31531
M3 x 6mm
BHCS
91560
5 x 10 x 4
Bearing
91682
Front Axle
91677
Steering
Block
(4mm)
#1596
thread lock
25204
M3 x 16mm
FHCS
91685
Front
Bumper
x2
91670
Hinge Pin
(front, Inner)
25225
M3 x 3mm
Set Screw
x2
x2
25188
M3 x 20mm
BHCS
25202
M3 x 10mm
FHCS
91815
Shock
Bushing,
10mm
91768
Front Shock
Tower,
Gull-Wing
91771
Front Shock
Tower Cover,
Gull-Wing
x2
x4
x2
25215
M3 Locknut,
black
91679
Steering
Block Arm
91048
Heavy-duty
Ballstud,
8mm
There are two sets of steering
blocks included with your kit, a 3mm
and a 4mm. The 4mm steering
blocks are used for the kit setup.
!
Bearing
Bearing
There are two sets of steering
There are two sets of steering
blocks included with your kit, a 3mm
blocks included with your kit, a 3mm
and a 4mm. The 4mm steering
and a 4mm. The 4mm steering
4L
