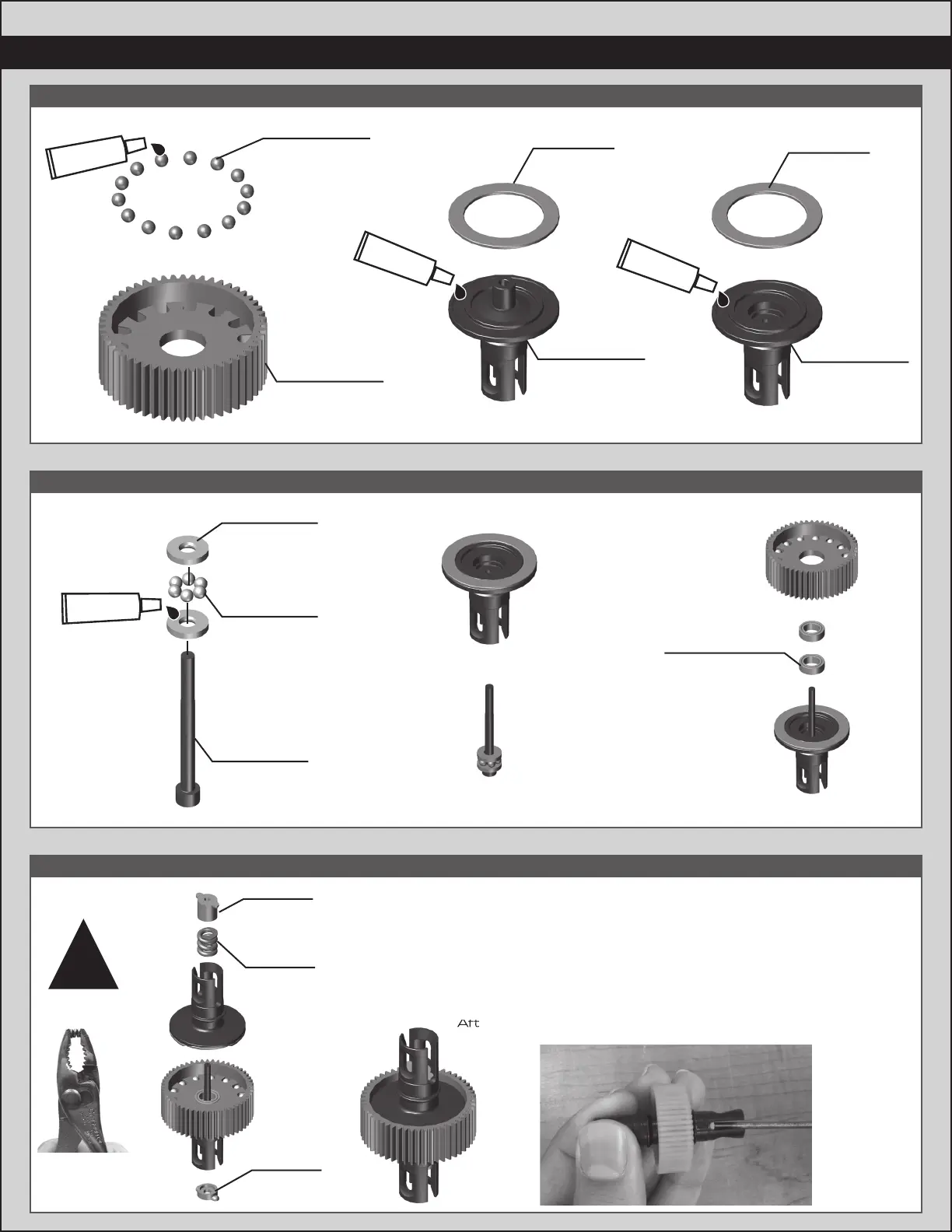

Associated Electrics RC10B6.2D KIT - Bag 5 - Step 1; Bag 5 - Step 2; Bag 5 - Step 3

10
:: :: Bag 5 - Step 3Bag 5 - Step 3
:: :: Bag 5 - Step 2Bag 5 - Step 2
:: :: Bag 5 - Step 1Bag 5 - Step 1
As you tighten the diff bolt, you will notice the T-nut ears moving
closer to the bottom of the outdrive slot. This compresses the
spring behind the T-nut. The spring should be completely
compressed at the time the T-nut reaches the end of the slot.
Caution! Pay close attention to the feeling when the spring is
completely compressed. Do not overtighten the bolt. When you
feel the spring completely compressed, loosen the diff bolt 1/8”
of a turn. Your diff should now operate smoothly but with
resistance as the outdrives move in opposite directions.
After you have driven the car once, re-check the diff setting.
After you have driven the car once, re-check the diff setting.
6575
Diff
cover
6575
Locking
t-nut
6582
Diff
thrust
spring
Compress
spring first.
!
#6588
black grease
6573
Diff thrust
washer
6574
5/64 diff
thrust
balls
6573
Diff thrust
bolt
x2x2
x6x6
31400
5 x 8 x 2.5mm,
Bearing
x2x2
6581
3/32 carbide
diff balls
91419
Diff Gear,
52T
91701
Ball Diff
Outdrive
91701
Ball Diff
Outdrive
7666
Diff Drive
Ring
7666
Diff Drive
Ring
x14x14
#6591
diff lube
#6591
diff lube
#6591
diff lube
