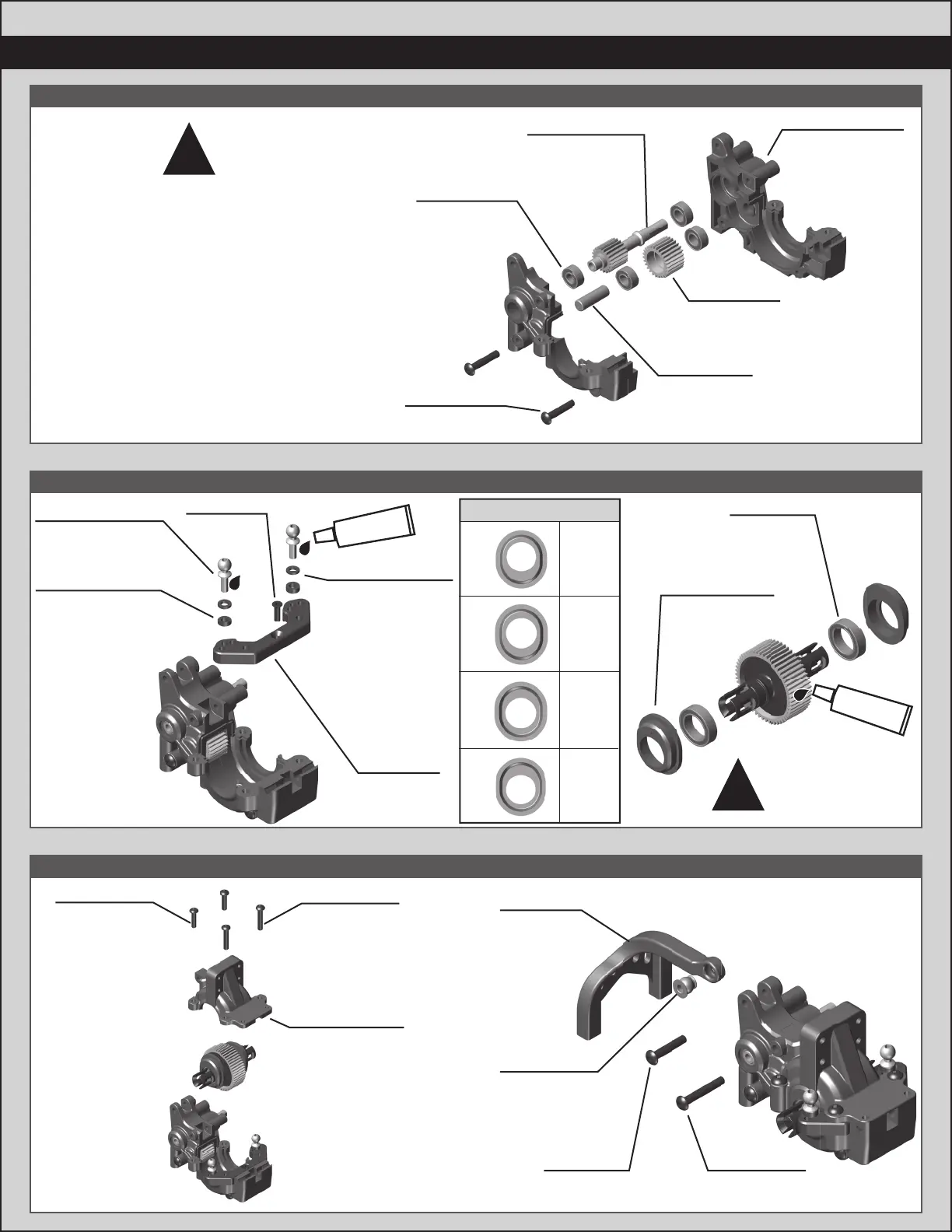

Associated Electrics RC10B6.2D KIT - Bag 6 - Step 1; Bag 6 - Step 2; Bag 6 - Step 3

11
:: :: Bag 6 - Step 3Bag 6 - Step 3
:: :: Bag 6 - Step 2Bag 6 - Step 2
:: :: Bag 6 - Step 1Bag 6 - Step 1
#1596
thread lock
#6591
diff lube
Add a drop of Diff
Lube (#6591) to
the teeth of the diff
gear, idler gear, and
top shaft.
B6.2D comes with a #91790 Layback
transmission and a #91791 Laydown
transmission. The Kit setup uses #91790
Layback transmission . Use #91791 as a
tuning option for higher grip track surfaces.
!
!
91792
B6.1 Diff
Height Insert
91563
10x15x4
Bearing
x2x2
x2x2
Diff Height
1
0
3
2
Kit
Setup
2
1
2
1
3
0
3
0
91790
B6.1 Layback
Gearbox
(right & left)
91560
5 x 10 x 4,
Bearing
89203
3x16mm
BHCS
91717
Idler Gear
26T
91799
B6.1 Laydown
Top Shaft
91132
Idler Gear
Shaft,
Aluminum
x4x4
x2x2
31448
2.5x8mm
FHCS
91048
Heavy-duty
Ballstud, 8mm
x2x2
x2x2
x2x2
91775
B6.1 Rear
Ballstud
Mount
31383
Ballstud
Washers,
5.5x1.0mm,
Blue Aluminum
31383
Ballstud
Washers,
5.5x2.0mm,
Blue Aluminum
89202
3 x 12mm
BHCS
91790
B6.1 Layback
Gearbox Top
89203
3 x 16mm
BHCS
x2x2
x2x2
91819
B6.1 Shock
Pivot Ball
91709
Lay-Down
Chassis
Brace
89203
3 x 16mm
BHCS
25188
3 x 20mm
BHCS
